3RW3 semiconductor motor control unit
SIRIUS System Manual
GWA 4NEB 430 0999-02b
8-41

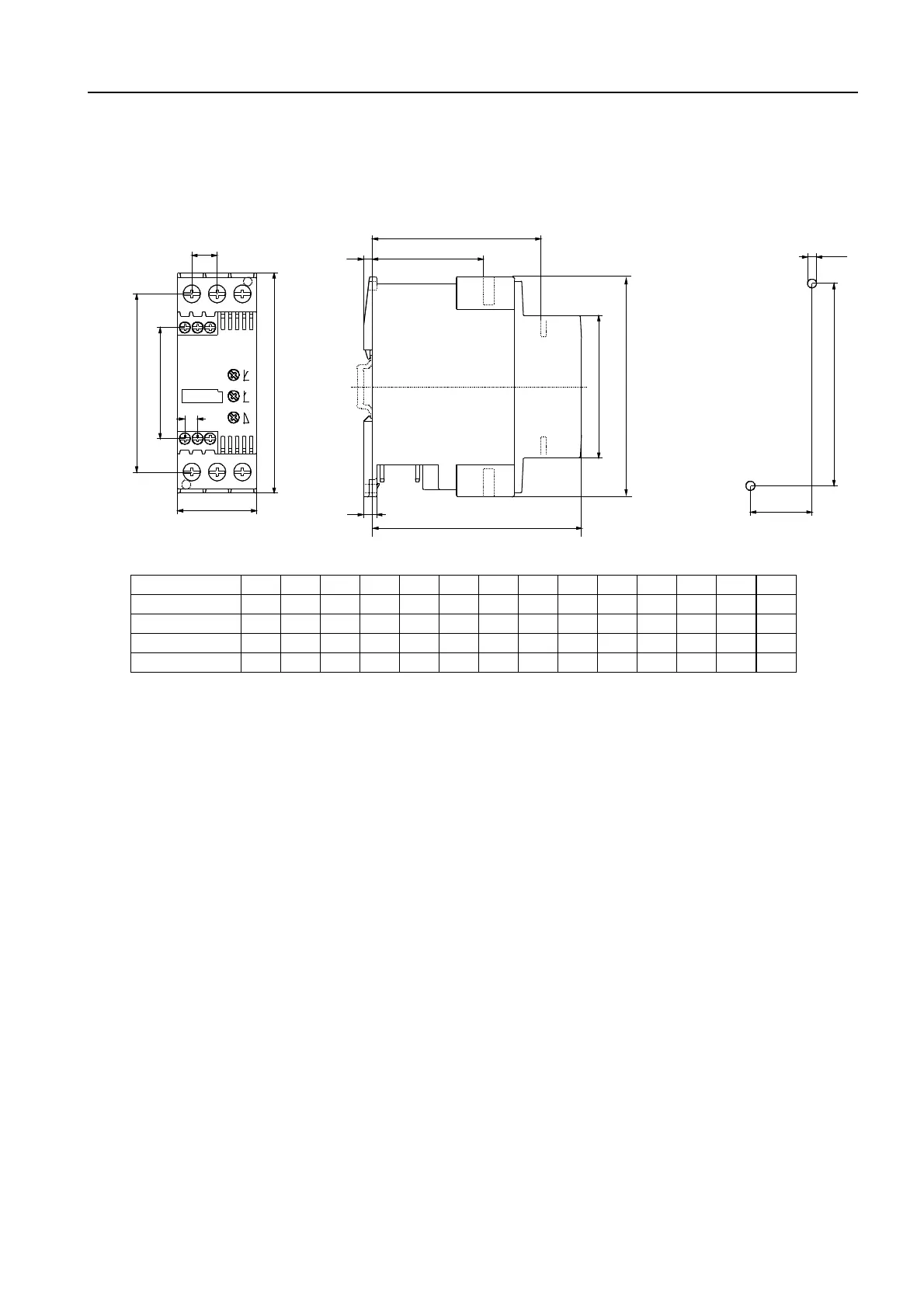

8.6 Dimensioned drawings
(dimensions in mm)
mm abcde fghi jklmn
3RW301.
97.5 45 93 95 66 51 -- 7.5 76 -- 86 -- 90 35
3RW302./3RW312.
125 45 119 125 81 63 96 7 101 63 14 7 115 35
3RW303.
160 55 143 141 95 63 115 8 119 77 18 7 150 30
3RW304.
170 70 183 162 108 87 156 8 132 87 22.5 7 160 60
k
j
i
b
a
l
m
n
5
c
h
5
f
g
e
d
