3RA1 fuseless load feeders
SIRIUS System Manual
GWA 4NEB 430 0999-02b
5-11
The following illustrations show how to assemble the fuseless load feeder:
•Rail mounting
• Frame sizes S00 with Cage Clamp terminal system
Direct starter

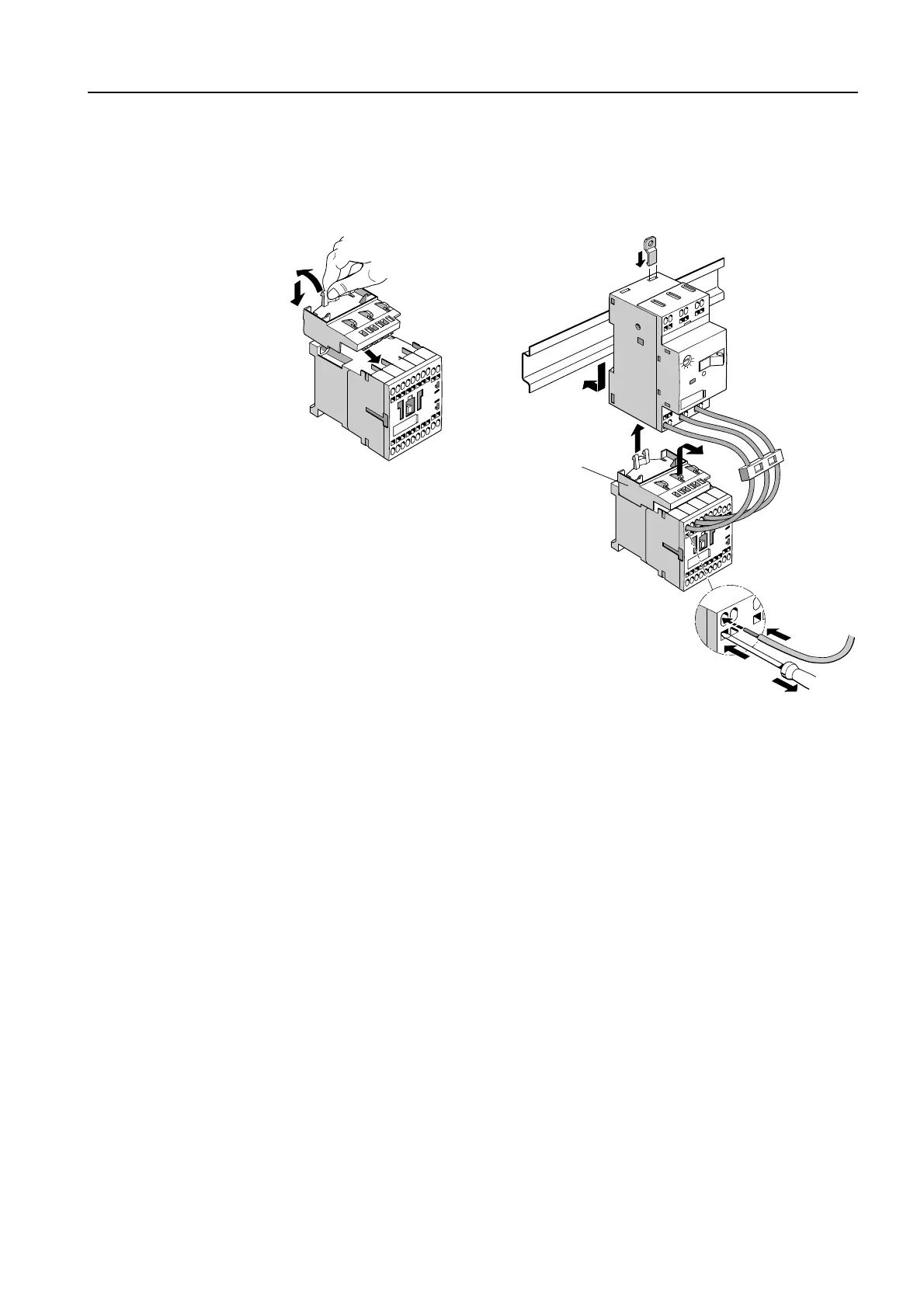

Figure 5-5: Self-assembly, rail, direct starter (frame size S00, Cage Clamp)
2
1
4
3
5
6
5b
5a
5c
3RA1911-2E
