3RH, 3TX, LZX coupling links
SIRIUS System Manual
6-12
GWA 4NEB 430 0999-02b
6.4 Accessories
6.4.1 Accessories for two-tier coupling links
Connecting lead
The 24-pole connecting lead 3TX7004-8BA00 can be used for all two-tier
coupling links both with screw-type and Cage Clamp terminals:

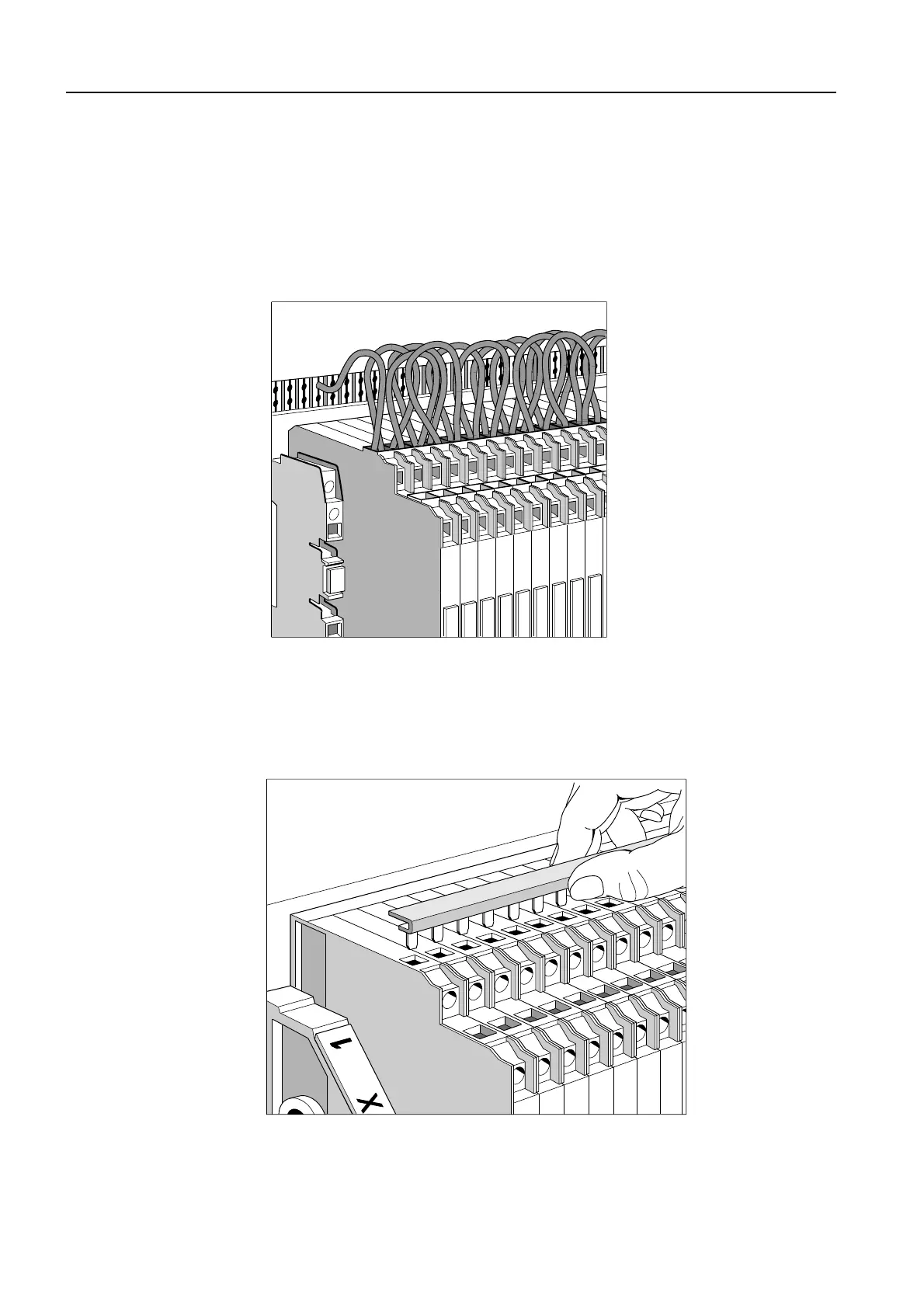

Figure 6-4: 24-pole connection lead for two-tier coupling links
Connection comb
The 24-pole connection comb 3TX7004-8AA00 can be used for the 6.2 mm
wide two-tier coupling links with screw-type terminals:
Figure 6-5: 24-pole connection comb for two-tier coupling links
