3RP10, 3RP15 solid-state time relays
SIRIUS System Manual
7-16
GWA 4NEB 430 0999-02b
7.3.3 On-delay
The 3RP10 20 solid-state time relay
The time relay contains 1 changeover contact.
Time ranges
Eight time ranges can be set by means of a rotary switch.
Important
Changes to the time range are only effective if they are made in a deenergi-
zed state.

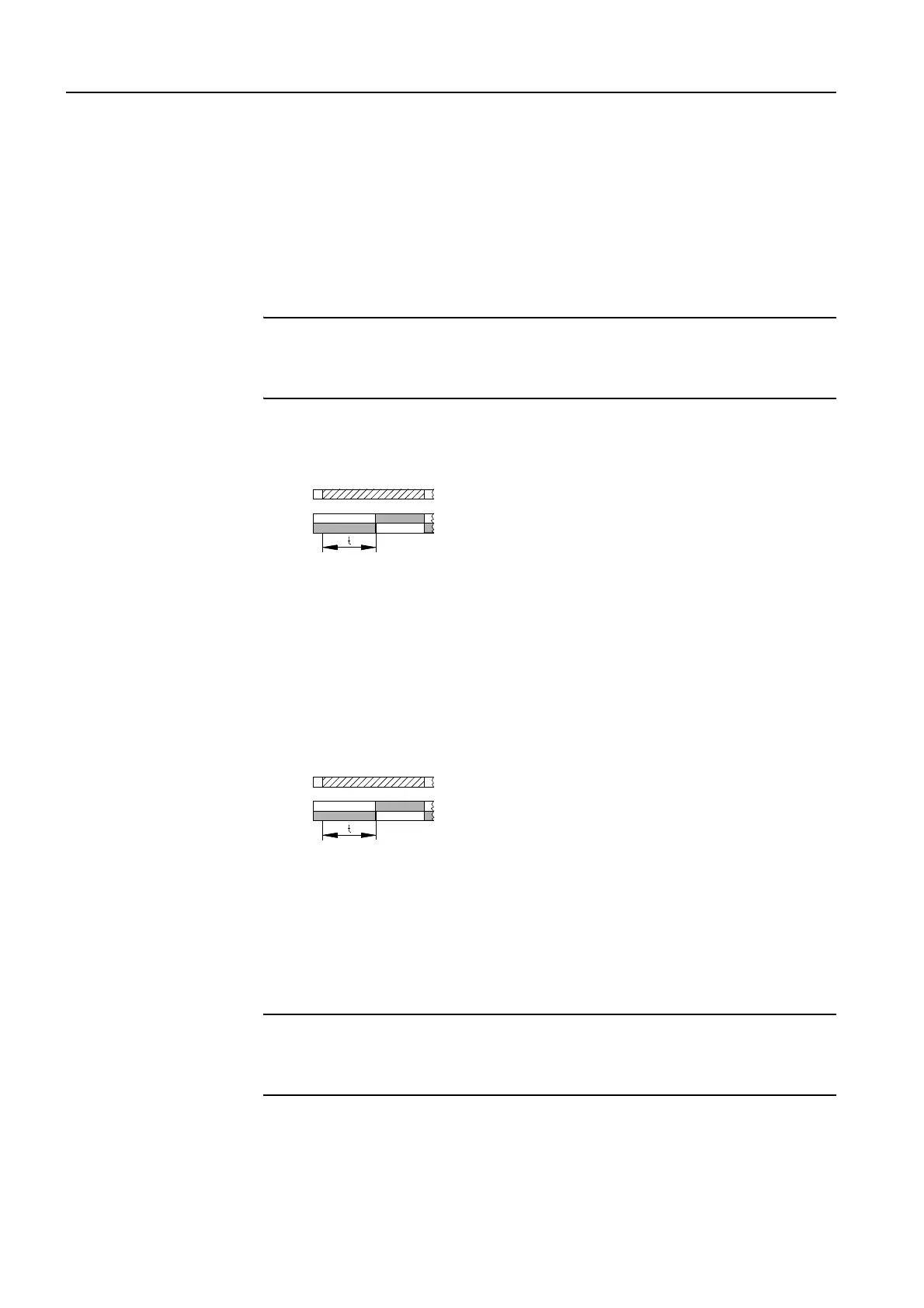

Function diagram
Figure 7-7: 3RP10 function diagram
The 3RP15 11/12/13 solid-state time relay
The time relay contains 1 changeover contact.
Time ranges
Fixed time ranges are offered: 10 s, 30 s, 100 s
Function diagram
Figure 7-8: 3RP15 1. function diagram
The 3RP15 25 solid-state time relay
The time relay is available with either 1 or 2 changeover contacts.
Time ranges
Fifteen time ranges can be set by means of a rotary switch.
Important
Changes to the time range are only effective if they are made in a deenergi-
zed state.
On-delay
ON DELAY
A./A2
15/18
15/16
On-delay
A./A2
15/18
15/16
ON DELAY
