7.4 Accessories
7.4.1 Accessories for 3RP10
Coding plug set
Included with the 3RP10 00 solid-state time relay is a coding plug set for 7
functions. The function is set by clipping on a label with that function on it.
The following diagrams show you how to affix the coding labels:

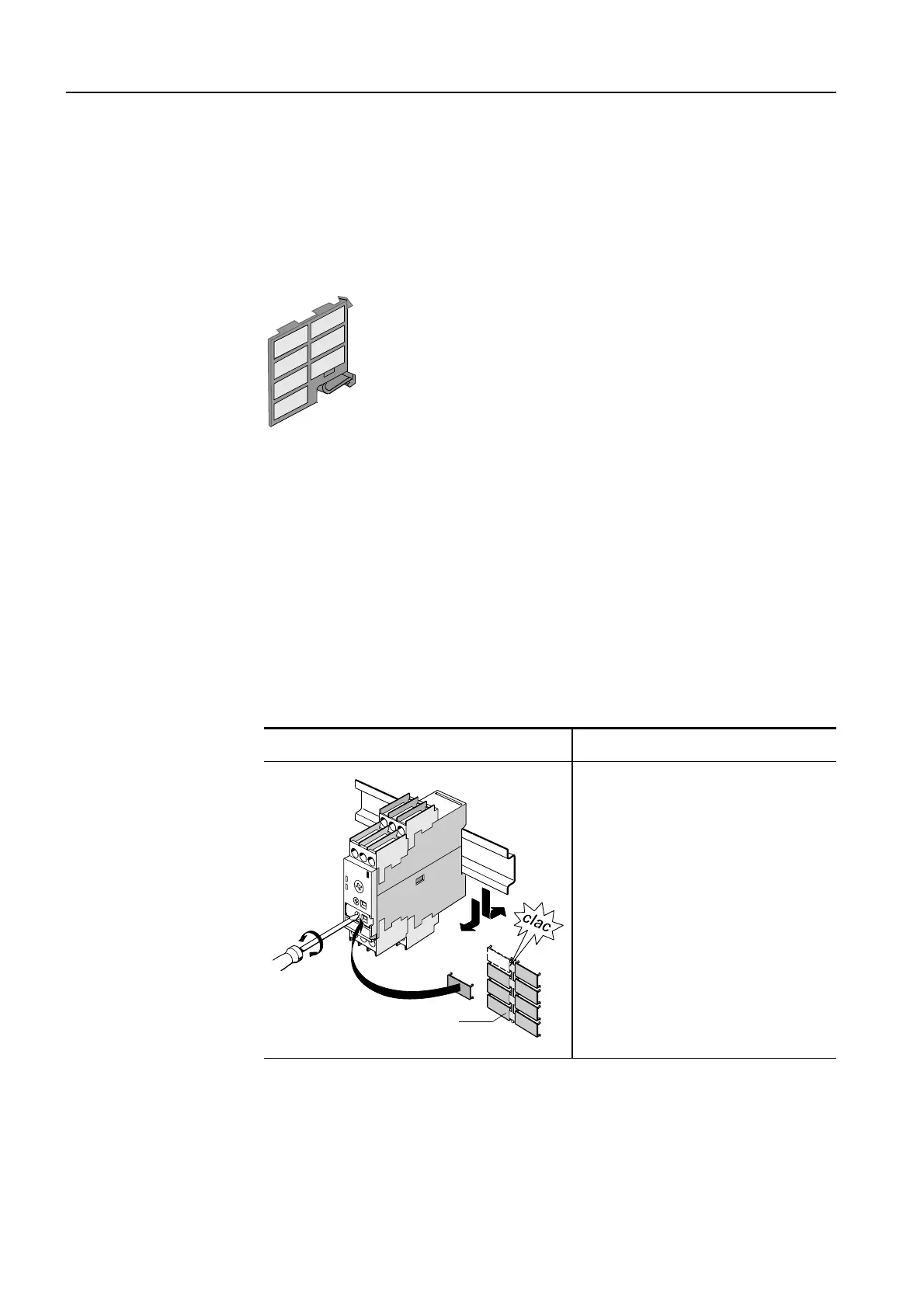

Figure 7-15: Coding plug set (3RP10 00)
This coding plug set is also available separately as 7PX9904.
7.4.2 Accessories for 3RP15 05
Label set
Two label sets are available to the 3RP15 05 solid-state time relay, multi-
function device for labeling, depending on the version (8 functions with 1
changeover contact, 16 functions with 2 changeover contacts):
• 3RP19 01-0A for the 3RP15 05-1A electronic relay, 1 changeover contact
• 3RP19 01-0B for the 3RP15 05-1B electronic relay, 2 changeover contacts
The following table shows you how to set the function on the time relay and
put on the label:
Figure 7-16: Label set (3RP15)
Illustration Procedure
1
The desired function is set on
the potentiometer of the time
relay using a screwdriver.
2
The corresponding label iden-
tifying the set function is clipped
on.
3RP19 01-0A (3RP15 05-.A)
3RP19 01-0B (3RP15 05-.B)
2
1
