Siemens SIRIUS 3RV1.2 System Manual

3RV1 circuit breaker
SIRIUS System Manual
2-56
GWA 4NEB 430 0999-02b

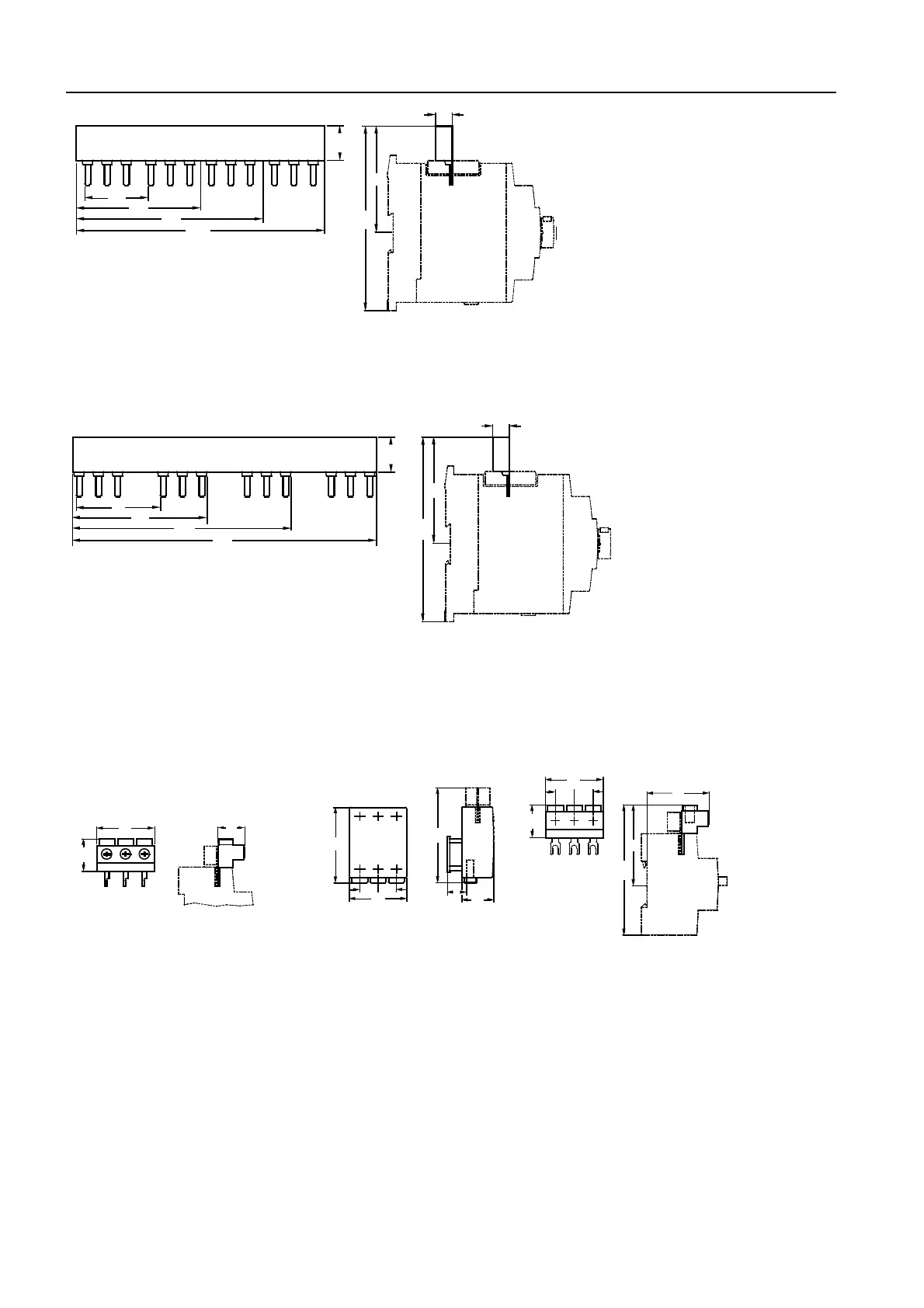

Figure 2-55: 3RV19 35-1 (for circuit breakers in frame size S2)
3RV19 35-1A for 2 circuit breakers (length 111 mm)
3RV19 35-1B for 3 circuit breakers (length 166 mm)
3RV19 35-1C for 4 circuit breakers (length 221 mm)
Figure 2-56: 3RV19 35-3 (for circuit breakers in frame size S2)
3RV19 35-3A for 2 circuit breakers with accessories (length 121 mm)
3RV19 35-3B for 3 circuit breakers with accessories (length 196 mm)
3RV19 35-3C for 4 circuit breakers with accessories (length 271 mm)
3-phase feed-in terminals
Figure 2-57: 3RV19 15-5A 3RV19 15-5B 3RV19 25-5AB
Connection from above (for frame size S00) Connection from below Connection from above (frame size S0)
(frame size S00/S0)
31
55
111
221
NSB00057b
165
15
96
166
31
75
271
121
NSB00058b
196
96
166
15
NSB00059a
24
44
25
NSB00060b
31
a
92
14 14
44
73
a
)
3RV1.1 19 mm
a
)
3RV1.2 23 mm
44
14 14
25
54
114
71
NSB01093a
