Siemens Sivacon S8 Planning Information

62
SIVACON S8 Planning Principles – Cubicles in fixed-mounted design
Installation
width
Number
of rows
Distance
between
rows
Module height
24 HP
1)
1
150 mm 150 mm
200 mm 200 mm
2
150 mm 300 mm
200 mm 400 mm
3
150 mm 450 mm
200 mm 600 mm
1)
HP = horizontal pitch = 18 mm
Device compartments
The device compartment consists of a fixed device holder
with a uniform usable overall depth of 310 mm. The device
compartment is closed with a front cover. The five typical
module heights are: 200, 300, 400, 500 and 600 mm.

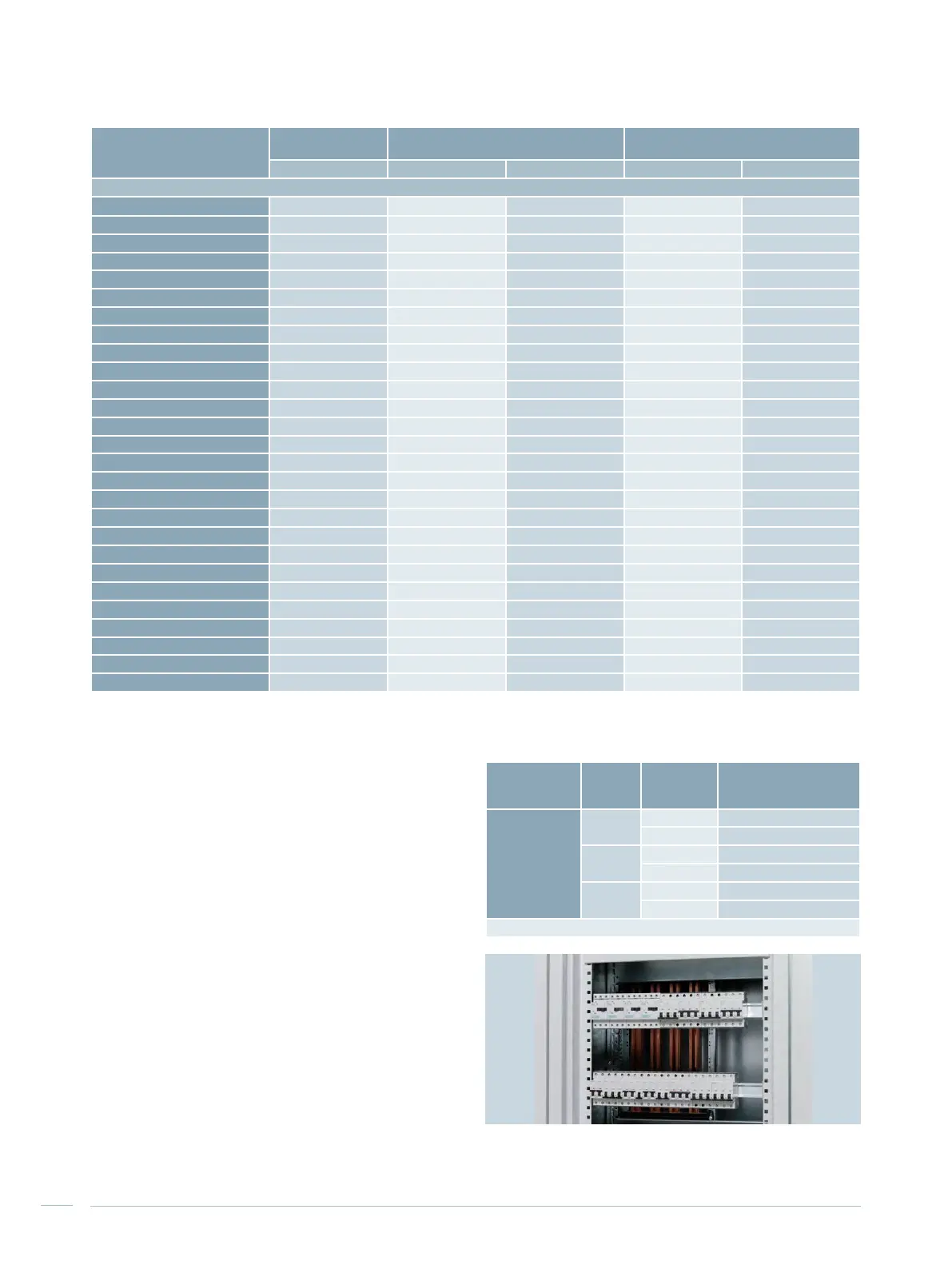

Tab. 6/11: Rating data of the cable feeders for circuit-breakers
Fig. 6/5: Mounting kit for modular installation devices (without
cover)
Mounting kits for modular installation devices
Thanks to the different mounting kits, one or more row(s)
of modular installation devices can be installed in the
switchboard. Tab. 6/12 states the configurations dependent
on the module height. The mounting kit (Fig. 6/5) com-
prises the 35 mm multi-profile rails for the mounting of
modular installation devices of size 1, 2 or 3 in accordance
with DIN 43880 and a front cover. The multi-profile rail
allows the SIKclip 5ST25 wiring system to be snapped on at
the back.
Type
Nominal
device current
Number
per row
Module height
Rated current I
nc
at 35 °C ambient temperature
3-pole / 4-pole 3-pole 4-pole Non-ventilated Ventilated
Circuit-breakers
3RV2.1 16 A
1 16 mm - 12.7 A 14.1 A
3RV2.1 16 A
9 16 mm - 12.7 A 14.1 A
3RV2.2 40 A
1 40 mm - 27 A 31.5 A
3RV2.2 40 A
9 40 mm - 27 A 31.5 A
3RV2.3 52 A
1 150 mm - 39 A 40.5 A
3RV2.3 52 A
7 250 mm - 39 A 40.5 A
3RV1.4 100 A
1 150 mm - 71 A 79 A
3RV1.4 100 A
6 300 mm - 71 A 79 A
3VL1 160 A
1 150 mm 200 mm 121 A 151 A
3VL1 160 A
4 / 3 350 mm 450 mm 121 A 151 A
3VL2 160 A
1 150 mm 200 mm 130 A 158 A
3VL2 160 A
4 / 3 350 mm 450 mm 130 A 158 A
3VL3 250 A
1 200 mm 250 mm 248 A 250 A
3VL4 400 A
1 250 mm 300 mm 400 A 400 A
3VL5 630 A
1 300 mm 350 mm 525 A 565 A
3VA10 100 A
1 150 mm 150 mm 72 A 85 A
3VA10 100 A
5 / 4 400 mm 400 mm 72 A 85 A
3VA11 160 A
1 150 mm 150 mm 112 A 125 A
3VA11 160 A
5 / 4 400 mm 400 mm 112 A 125 A
3VA12 250 A
1 200 mm 250 mm 232 A 246 A
3VA20 100 A
1 150 mm 200 mm 100 A 100 A
3VA20 100 A
4 / 3 350 mm 350 mm 83 A 100 A
3VA21 160 A
1 150 mm 200 mm 160 A 160 A
3VA21 160 A
4 / 3 350 mm 350 mm 90 A 125 A
3VA22 250 A
1 200 mm 250 mm 201 A 226 A
3VA23 400 A
1 250 mm 300 mm 350 A 400 A
3VA24 630 A
1 250 mm 300 mm 410 A 495 A
Tab. 6/12: Configuration data of the mounting kits for modular
installation devices
