content of a frame, and some content is hidden.

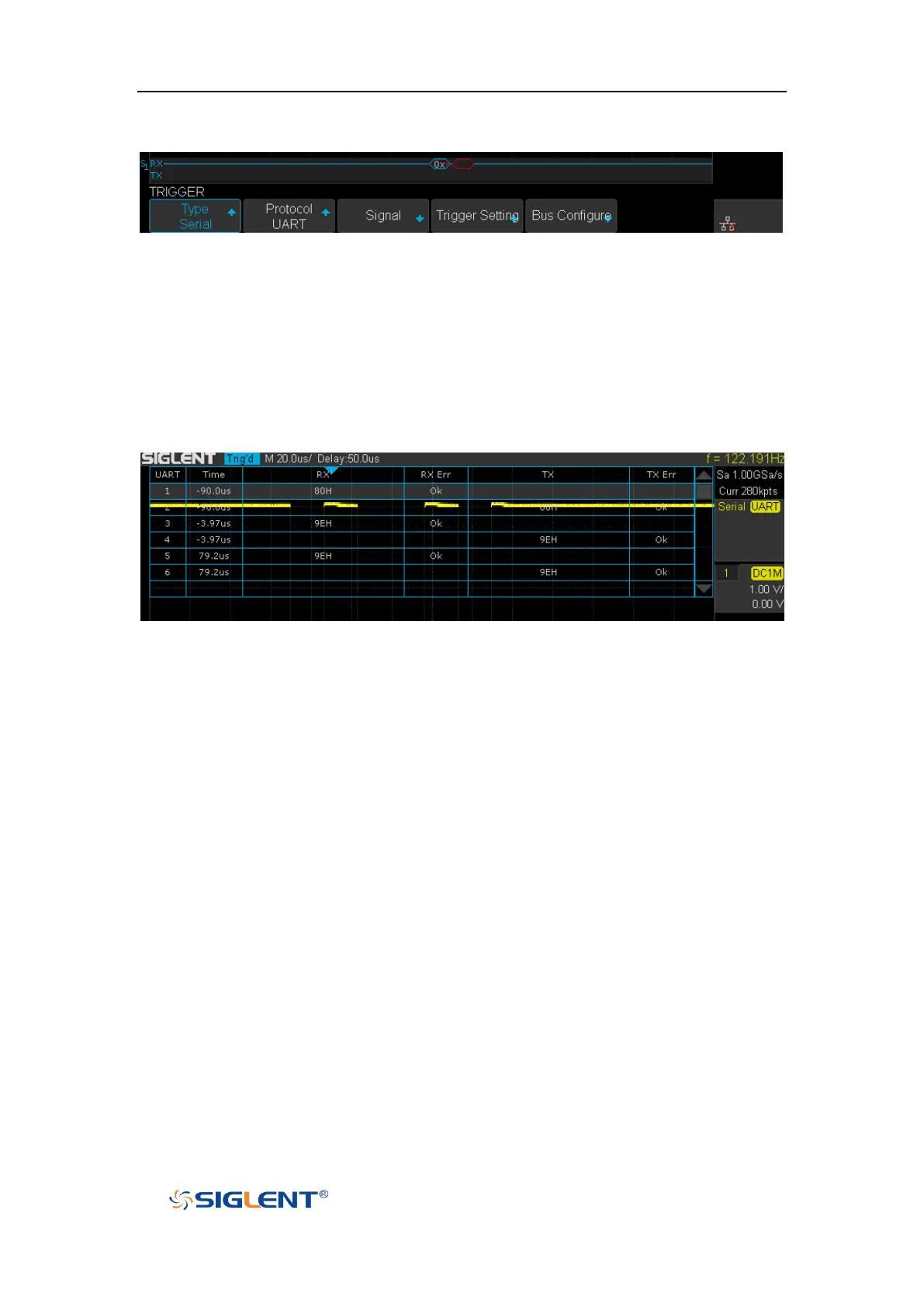

Figure 58 UART Decode Bus Display
The lists of decoding result:
 Time— the horizontal displacement between current frame and trigger
position.
 RX — the receiving channel.
 TX — the transmitting channel.
 RX Err— Parity error or unknown error in the data received.
 TX Err— Parity error or unknown error in the data transmitted.
Figure 59 UART Decode List Display
