Note: The vertical Variable knob and the vertical Position knob are only works
for the reference waveform and the math waveform. Please make a
difference with the channel vertical system.
Adjust REF Waveform
1. Please refer to the “To Display REF Waveform” above to display the desired
reference waveform.
2. Press the Scale and Position softkey and turn the Universal Knob to adjust the
vertical scale and position of the reference waveform. The vertical scale and
position information display at the middle of the screen.
The initial values display at the middle of the screen is the setup that when the
reference waveform been saved.

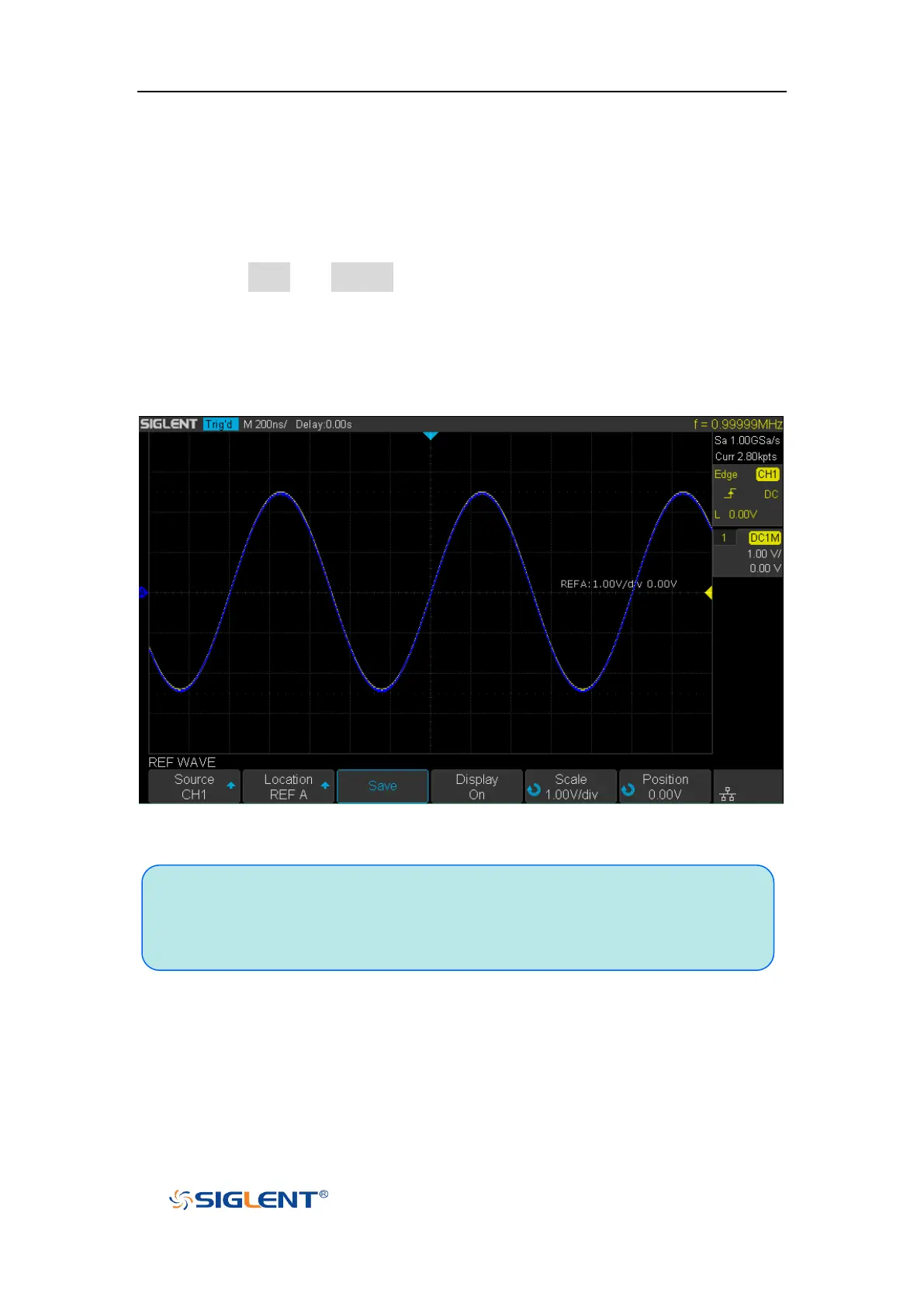

Figure 69 Reference Waveform
Clear REF Waveform
The oscilloscope does not have the “Clear” option under the REF WAVE function
menu. To clear the appointed reference waveform, you can save a new reference
