All Measurement
All measurement could measure all the voltage, time and delay parameters of the
current measurement source and display the results on the screen.

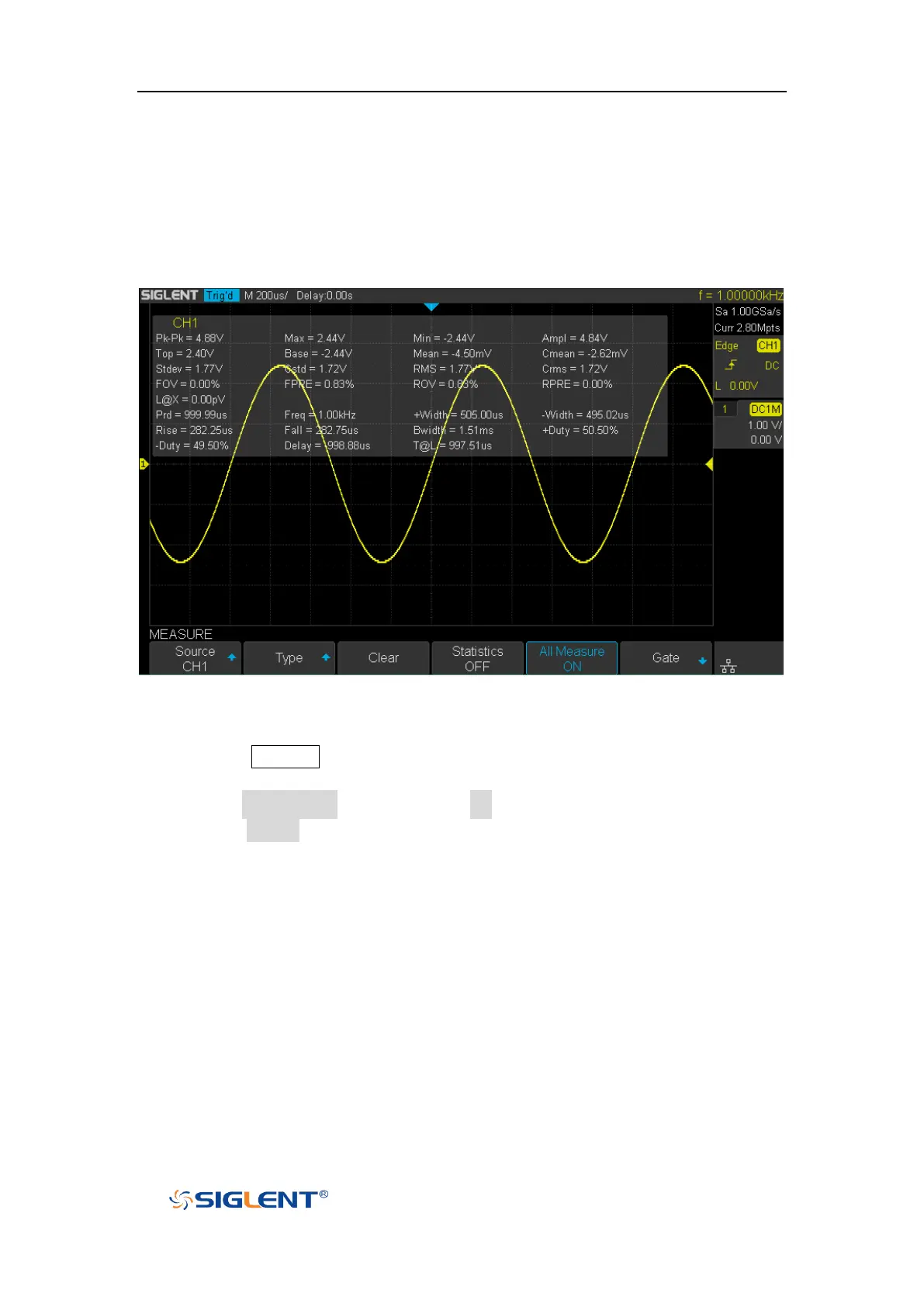

Figure 92 All Parameters Measurement
Do the following steps to make all parameters measurement.
1. Press the Measure button on the front panel to enter the MEASURE function
menu.
2. Press the All Measure softkey to select On.
3. Press the Source softkey to select the measure source.
