SDS1000X-E&SDS1000X-U User Manual
118
LIN Serial Decode
After completing the setup of LIN signal and trigger, we will decode LIN signals.
Operation steps as follows.
1. Press Decode→ Decode. Select one of the options from the Decode1 and
Decode2.
2. Press the Display and select On to display the result of decoding.
3. Press the List to enter the LIST function menu.
4. Press the Display and choose the same options as the first step.
5. Press the Lines and set the number of lines by Universal Knob. The range of the
lines is 1 to 7.
6. Press the Format to change the character encoding format of the decoder’s
result.
7. Press the Scroll and turn the Universal Knob to view all frames.

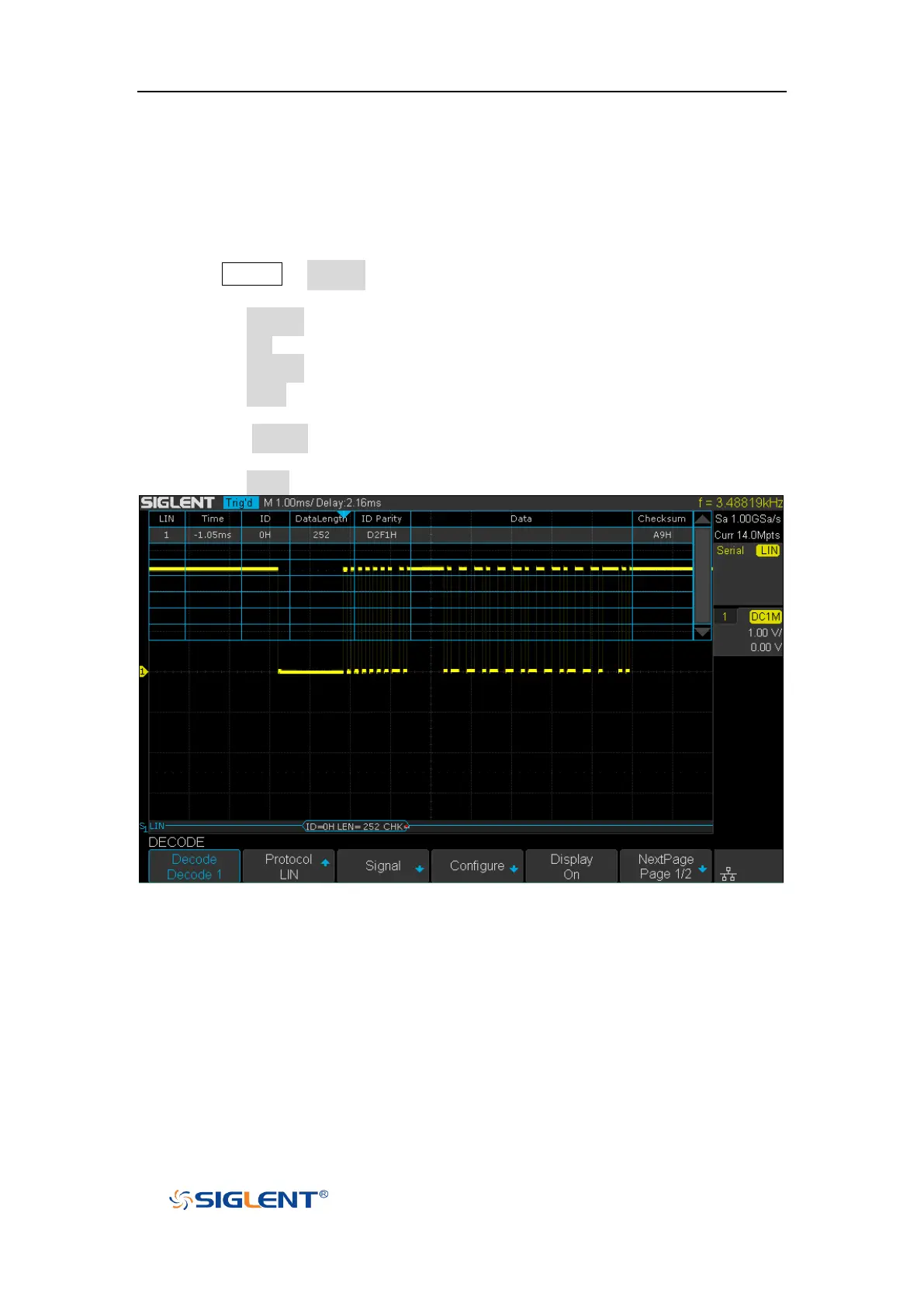

Figure 66 LIN Decode
Interpreting LIN Decode
The frame of decoding result:
Protected Identifier Field is displayed in frame
Data Length is displayed in frame
Data Field is displayed in frame.
Checksum Field is displayed in frame.
