SIGLENT SDS1104X-E - Front Panel Overview; SDS1000 X-E 2-channel Front Panel

SDS1000X-E&SDS1000X-U User Manual
9
WWW.SIGLENT.COM
Front Panel Overview

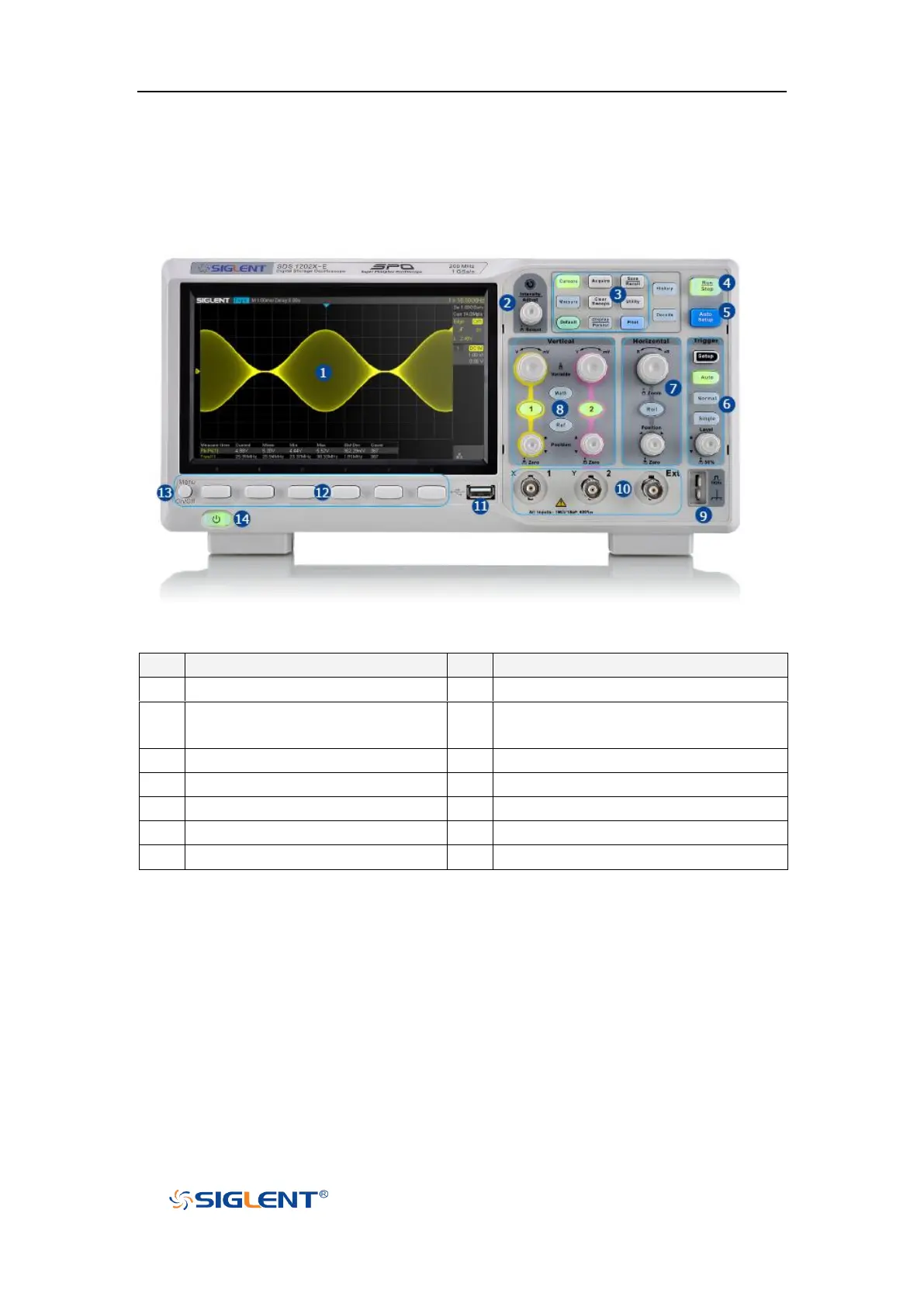

Figure 8 SDS1000X-E 2-channel Scope Front Panel Overview
NO.
Description
NO.
Description
1
LCD Display
8
Vertical Control
2
Universal Knob
9
Probe Compensation/ Ground
Terminal
3
Common Function Menus
10
Analog Channel and Ext Input
4
Run/Stop
11
USB Host
5
Auto Setup
12
Menu Soft key
6
Trigger Control
13
Menu on/off
7
Horizontal Control
14
Power Button
