1.7.2 Enable Option
Refer to the procedures below to activate the options you have purchased.
1, Press System ->“Load Option”
2, Enter the license key in the onscreen window. Press Enter to confirm your input and terminate
the license key input. Or
3, Load the .lic file provided by pressing File ->“Load” from internal memory or USB stick.
The option will be enabled after rebooting.
1.7.3 Firmware Upgrade
Follow this procedure to finish the firmware update:
1, Download the firmware package from website.
2, Extract and copy the .ADS file into the root directory of a USB stick.
3, Plug the USB stick into the USB Host connector. Press System->“System Info”-> “Firmware
Update”, find the .ADS file in USB stick.
4, Press “Load”. The analyzer will perform the update process automatically.
The upgrade procedure will take several minutes. Once the upgrade is completed, please follow
the instruction to reboot.
Any interruption during the update process will result in update failure and system data lost. Do not
remove the USB storage device until the update is finished.
1.8 Menu Operation
There are 7 types of menus according to their operation modes. Each type of menu and its
operation method are introduced below.

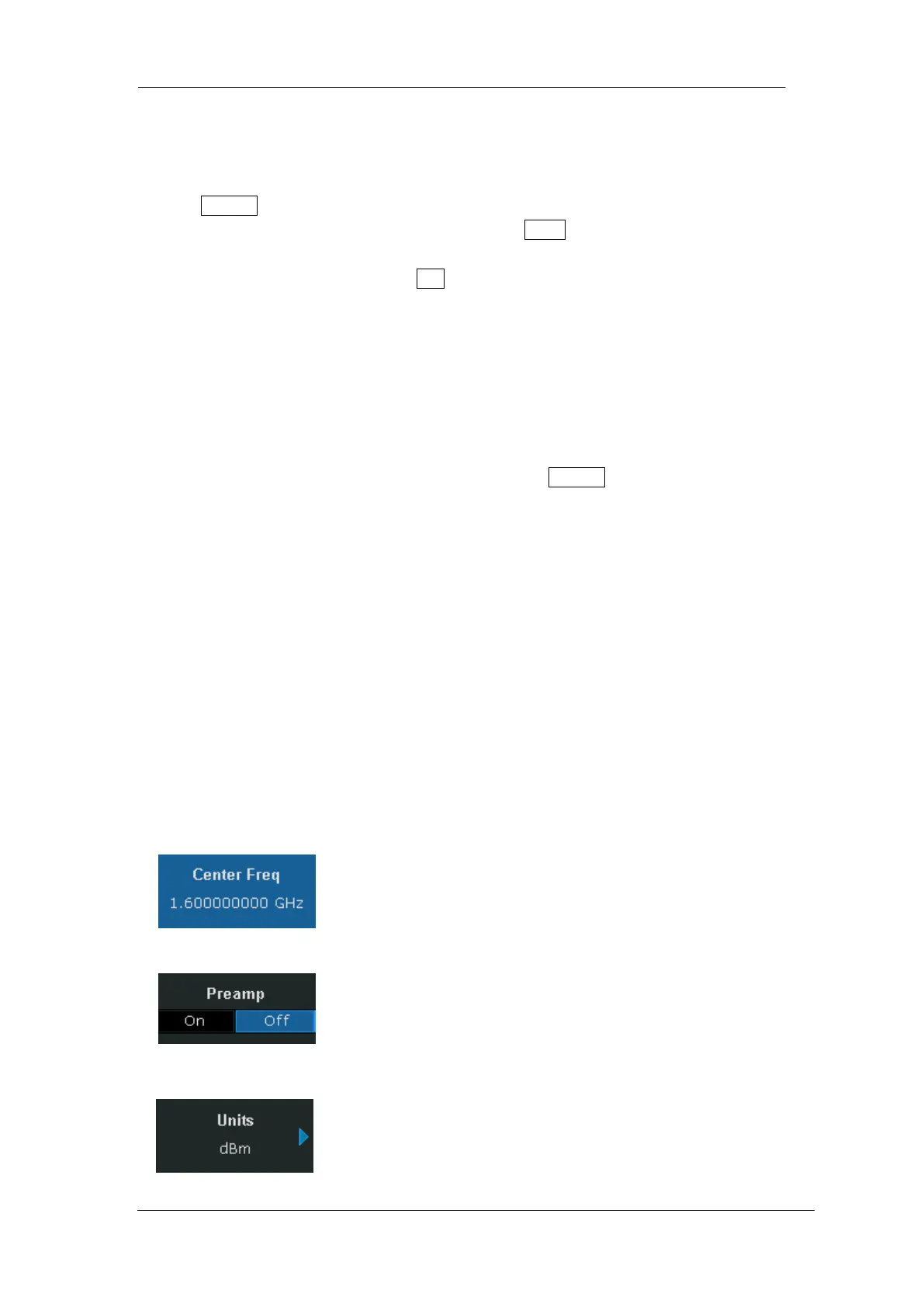

1. Parameter Input
When selected, use the numeric keys to modify the parameters.
For example, select Center Freq, input the desired figure and press
Enter to change the center frequency.
2. State switching
Press the corresponding menu key to switch between the
sub-options.
For example, press Preamp to enable or disable the amplifier.
3. Enter Lower Menu(with parameter)
Press the corresponding menu key to enter the lower menu and
change the option currently selected.
For example, press Units to enter the lower menu. Select dBm and
return to the previous menu. The unit of Y-axis changes to dBm.
