SIGLENT SSA3021X User Manual

SIGLENT
SSA3000X User Manual 3
1.4 The Front Panel

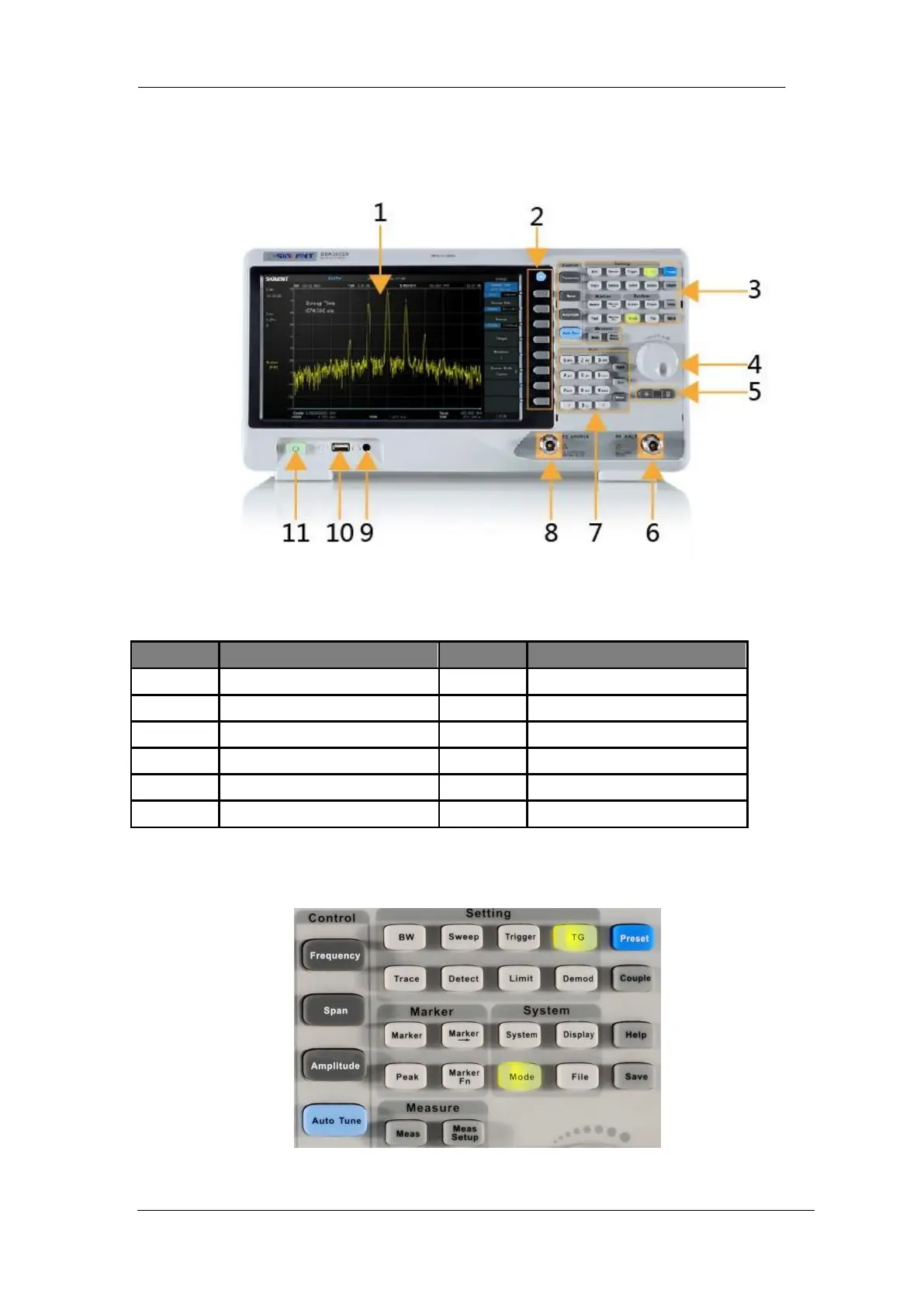

Figure 1-6 the Front Panel
Table 1-1 Front Panel Description
NO.
Description
NO.
Description
1
User Graphical Interface
2
Menu Control Keys
3
Function Keys
4
Knob
5
Arrow Keys
6
RF Input
7
Numeric Keyboard
8
TG Output
9
Earphone interface
10
USB Host
11
Power Switch
1.4.1 Front Panel Function Keys
Figure 1-7 Function Keys area
Table 1-2 Function keys description

SIGLENT SSA3021X Specifications

General

Frequency Range	9 kHz to 2.1 GHz
Resolution Bandwidth (RBW)	1 Hz to 1 MHz
Sweep Time	1 ms to 1000 s
Input Impedance	50 Ω
Input VSWR	< 1.5
Maximum Input Level	+30 dBm
Tracking Generator	Optional
Displayed Average Noise Level (DANL)	-161 dBm/Hz
Interfaces	USB Host, USB Device, LAN, GPIB (optional)
Display Resolution	1024 points
Power Requirements	100 V - 240 V AC, 50 Hz/60 Hz
Phase Noise	-98 dBc/Hz @ 10 kHz offset (1 GHz carrier)
