SSA3000X User Manual 71
3.3.2 Send SCPI Commands via NI MAX
Users can control the spectrum analyzer remotely by sending SCPI commands via NI-MAX
software.
3.3.2.1 Using USB

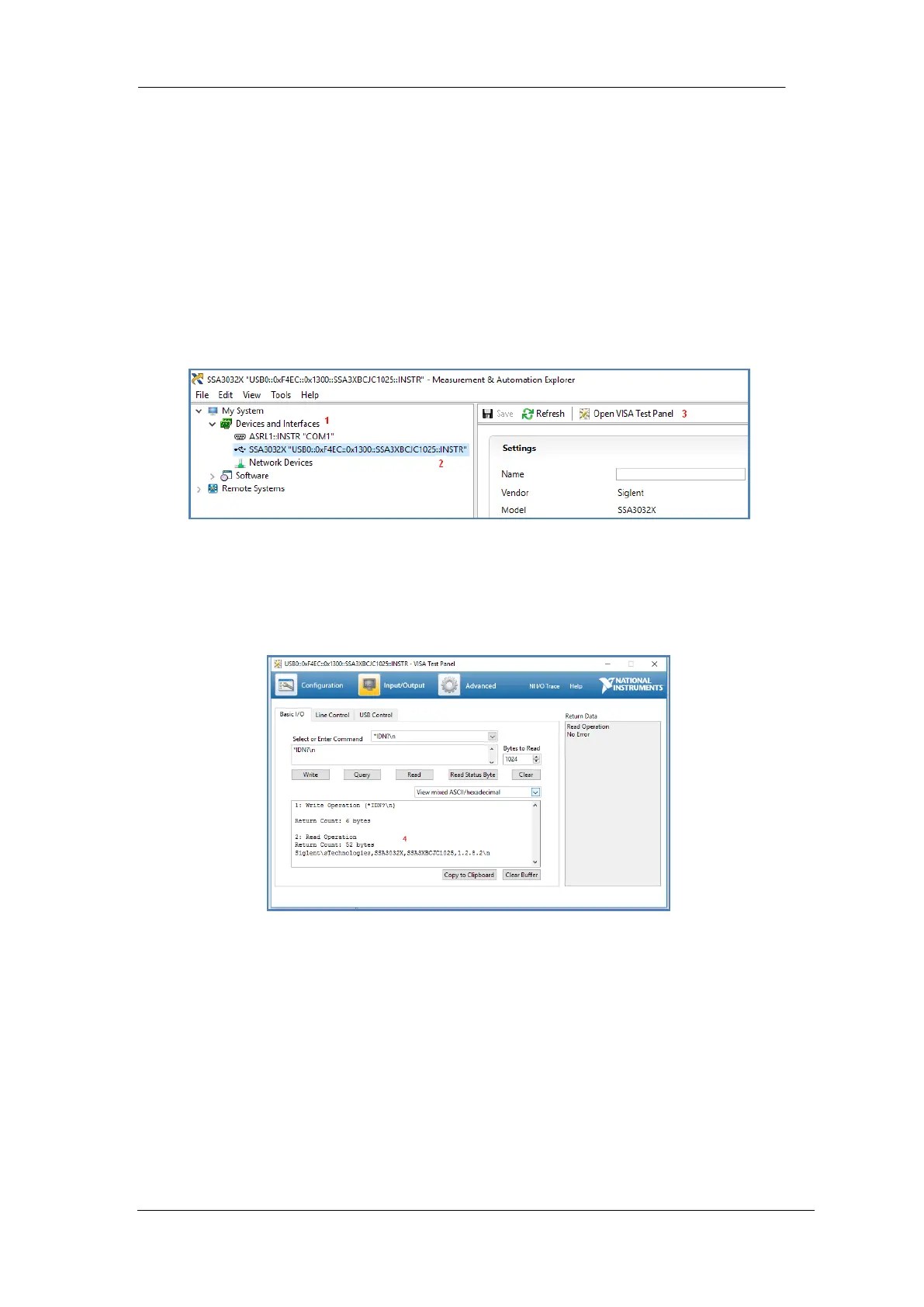

Run NI MAX software.
1, Click “Device and interface” at the upper left corner of the software;
2, Find the “USBTMC” device symbol
3, Click “Open VISA Test Panel” option button, then the following interface will appear.
4, Click the “Input/Output” option button and click the “Query” option button in order to view
the operation information.
NOTE: The *IDN? command (known as the Identification Query) returns the instrument
manufacturer, instrument model, serial number, and other identification information.
3.3.2.2 Using LAN
Select, Add Network Device, and select VISA TCP/IP Resource as shown:
Run NI MAX software.
1, Click “Device and interface” at the upper left corner of the software;
2, Find the “Network Devices” symbol; click “Add Network Devices”;

SIGLENT SSA3021X Specifications

General

Frequency Range	9 kHz to 2.1 GHz
Resolution Bandwidth (RBW)	1 Hz to 1 MHz
Sweep Time	1 ms to 1000 s
Input Impedance	50 Ω
Input VSWR	< 1.5
Maximum Input Level	+30 dBm
Tracking Generator	Optional
Displayed Average Noise Level (DANL)	-161 dBm/Hz
Interfaces	USB Host, USB Device, LAN, GPIB (optional)
Display Resolution	1024 points
Power Requirements	100 V - 240 V AC, 50 Hz/60 Hz
Phase Noise	-98 dBc/Hz @ 10 kHz offset (1 GHz carrier)
