SIGLENT SSA3021X User Manual

SIGLENT
SSA3000X User Manual 72

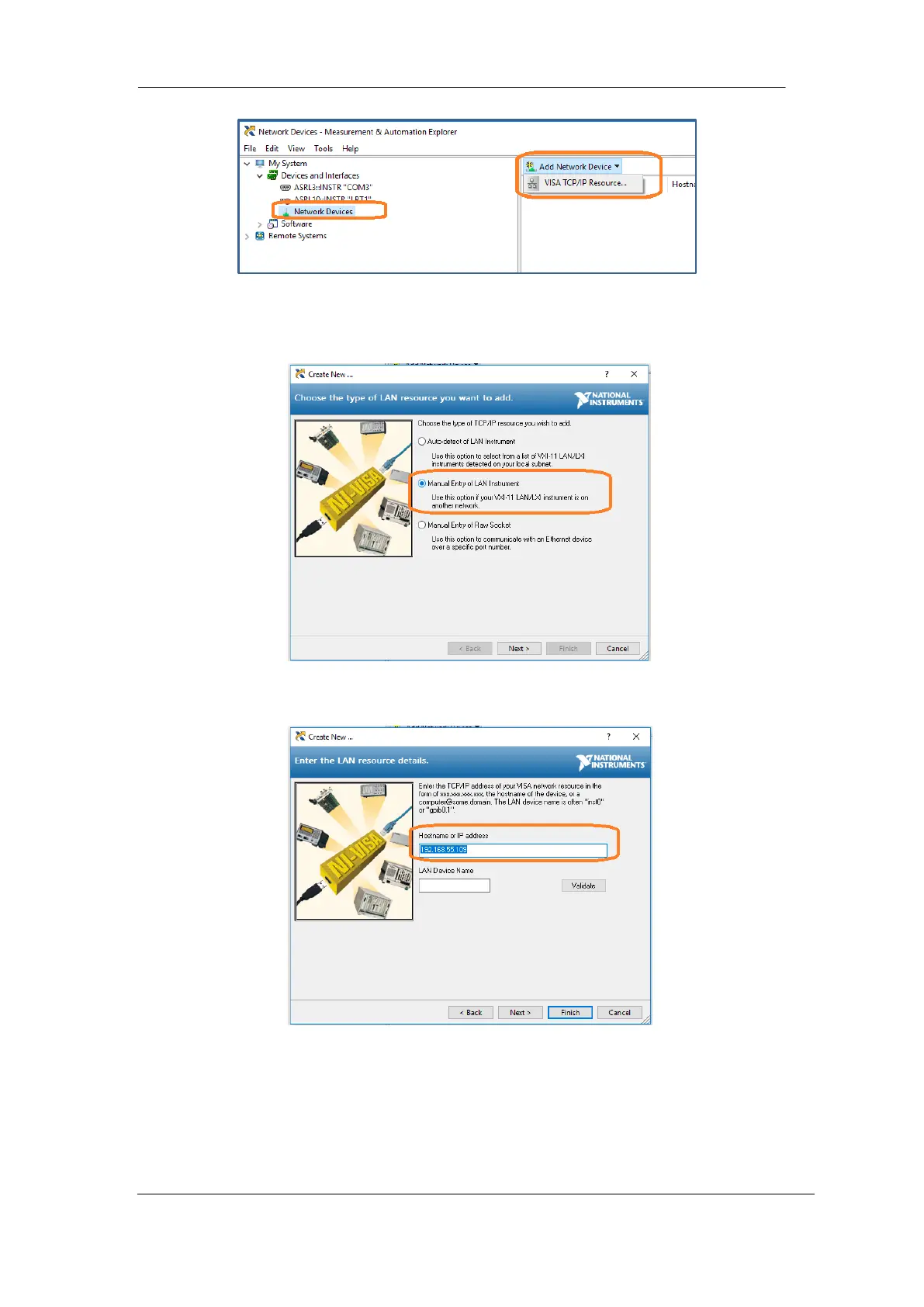

3. Select Manual Entry of LAN instrument, select Next, and enter the IP address as shown.
Click Finish to establish the connection:
NOTE: Leave the LAN Device Name BLANK or the connection will fail.
4. After a brief scan, the connection should be shown under Network Devices:

SIGLENT SSA3021X Specifications

General

Frequency Range	9 kHz to 2.1 GHz
Resolution Bandwidth (RBW)	1 Hz to 1 MHz
Sweep Time	1 ms to 1000 s
Input Impedance	50 Ω
Input VSWR	< 1.5
Maximum Input Level	+30 dBm
Tracking Generator	Optional
Displayed Average Noise Level (DANL)	-161 dBm/Hz
Interfaces	USB Host, USB Device, LAN, GPIB (optional)
Display Resolution	1024 points
Power Requirements	100 V - 240 V AC, 50 Hz/60 Hz
Phase Noise	-98 dBc/Hz @ 10 kHz offset (1 GHz carrier)
