SSA3000X User Manual 73

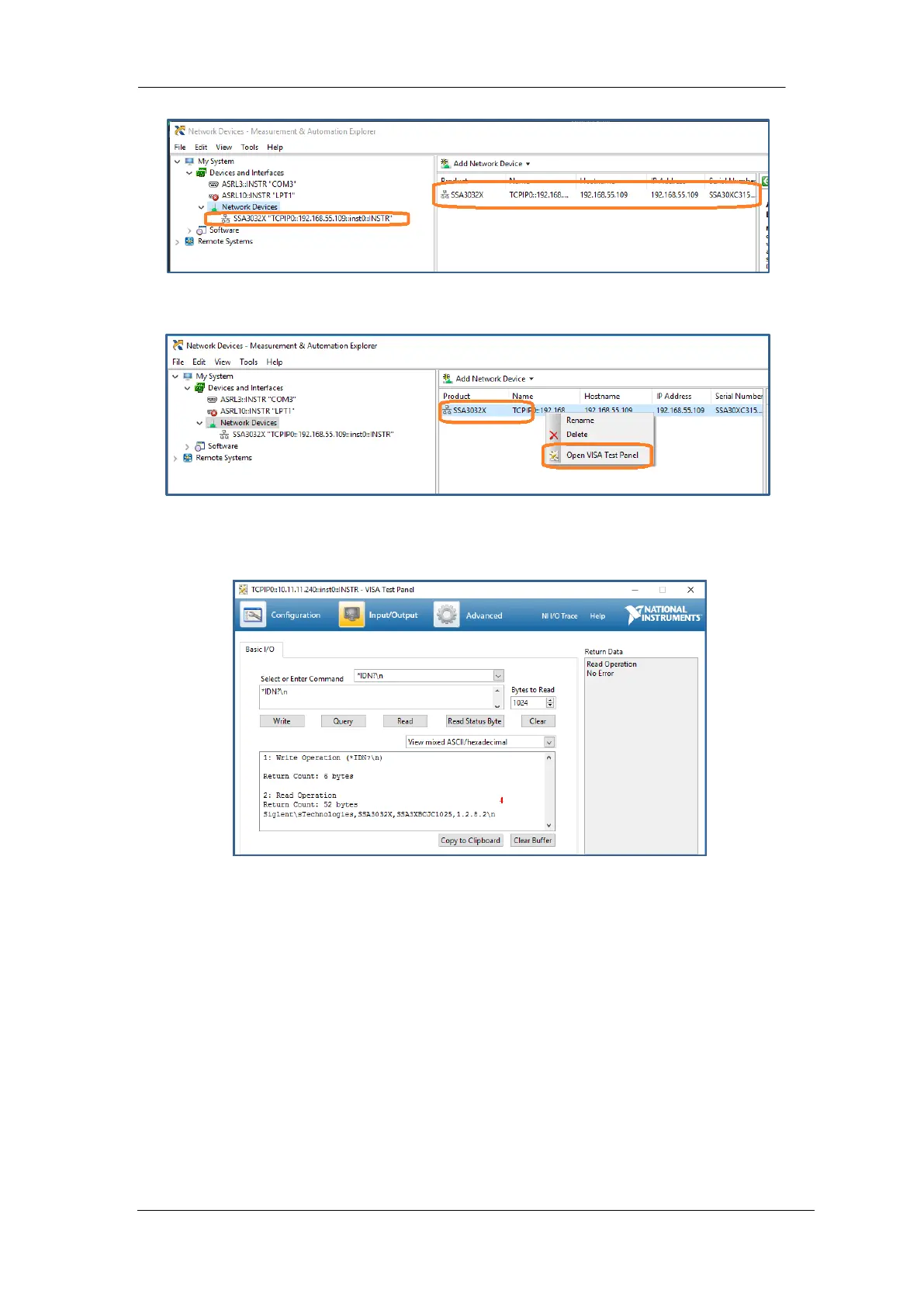

5. Right-click on the product and select Open NI-VISA Test Panel:
6. Click “Input/Output” option button and click “Query” option button. If everything is OK, you
will see the Read operation information returned as shown below.
3.3.3 EasySpectrum Software
Users can control the spectrum analyzer remotely by EasySpectrum. PC software
EasySpectrum is an easy-to-use, PC-Windows-based remote control tool for Siglent’s
spectrum analyzer. You can download it from Siglent’s website. To connect the analyzer via
the USB/LAN port to a PC, you need install the NI VISA first.
It is able to be used as:
 A monitor to display and control the trace scans simultaneously with the analyzer;
 A file maker to get user defined Limit/Correction files, and load them to the analyzer;

SIGLENT SSA3021X Specifications

General

Frequency Range	9 kHz to 2.1 GHz
Resolution Bandwidth (RBW)	1 Hz to 1 MHz
Sweep Time	1 ms to 1000 s
Input Impedance	50 Ω
Input VSWR	< 1.5
Maximum Input Level	+30 dBm
Tracking Generator	Optional
Displayed Average Noise Level (DANL)	-161 dBm/Hz
Interfaces	USB Host, USB Device, LAN, GPIB (optional)
Display Resolution	1024 points
Power Requirements	100 V - 240 V AC, 50 Hz/60 Hz
Phase Noise	-98 dBc/Hz @ 10 kHz offset (1 GHz carrier)
