SIGLENT SSA3021X User Manual

SIGLENT
SSA3000X User Manual 74

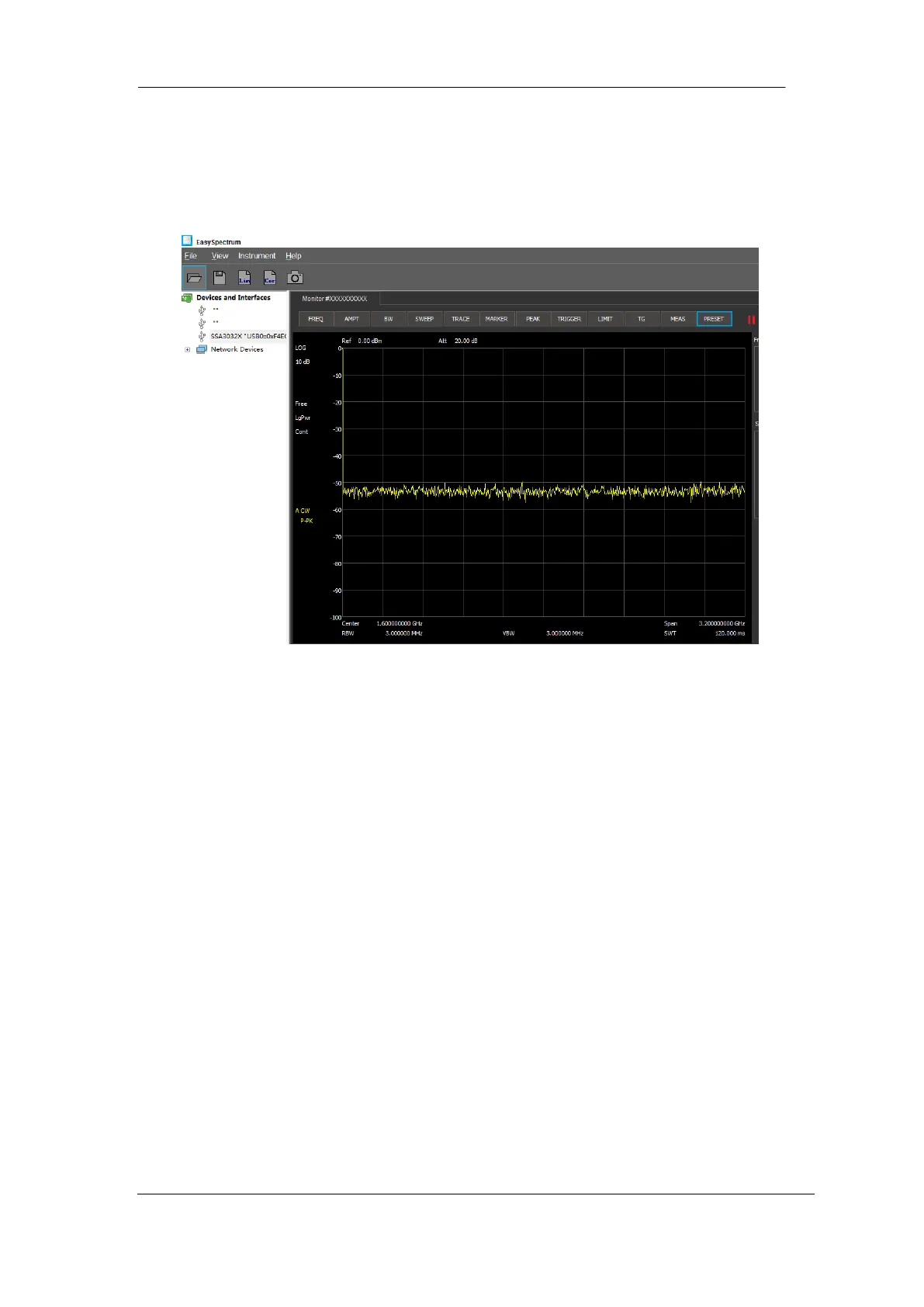

 An EMI receiver to perform EMI Pre-compliance test including pre scan, peak search,
final scan and report generating.
For the further description of the software, please refer to the online help embedded in this
software.

SIGLENT SSA3021X Specifications

General

Frequency Range	9 kHz to 2.1 GHz
Resolution Bandwidth (RBW)	1 Hz to 1 MHz
Sweep Time	1 ms to 1000 s
Input Impedance	50 Ω
Input VSWR	< 1.5
Maximum Input Level	+30 dBm
Tracking Generator	Optional
Displayed Average Noise Level (DANL)	-161 dBm/Hz
Interfaces	USB Host, USB Device, LAN, GPIB (optional)
Display Resolution	1024 points
Power Requirements	100 V - 240 V AC, 50 Hz/60 Hz
Phase Noise	-98 dBc/Hz @ 10 kHz offset (1 GHz carrier)
