1.3 Preparing for Use
1.3.1 Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the Spectrum Analyzer upwards for
stable placement as well as easier operation and observation of the instrument.

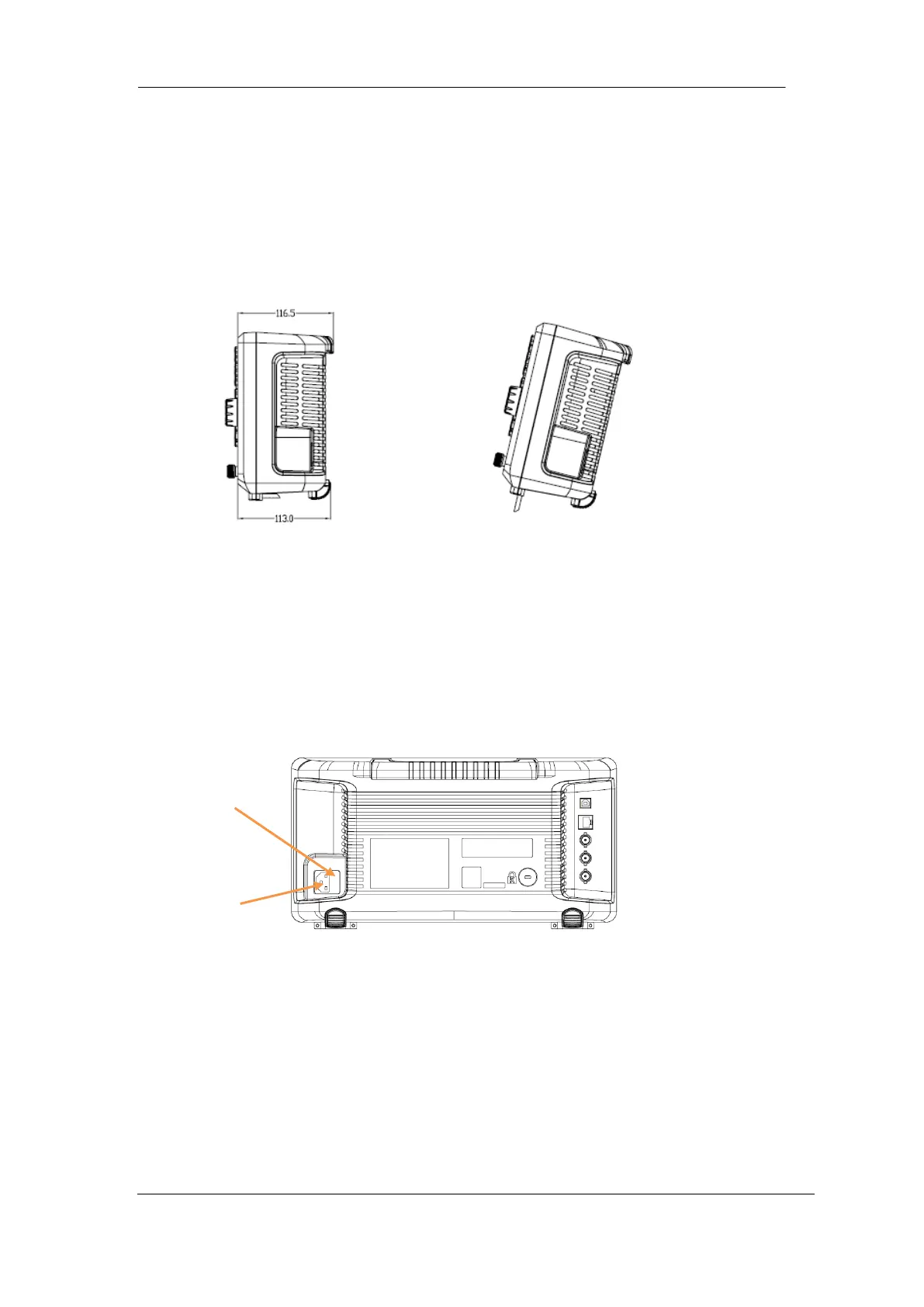

Figure 1-3 Before adjusting Figure1-4 After adjusting
1.3.2 Connect to AC Power Supply
The spectrum analyzer accepts 100-240V, 50/60/440Hz AC power supply. Please use the power
cord provided as accessories to connect the instrument to the power source as shown in the figure
below. Before power on, make sure the spectrum analyzer is protected by fuse.
Figure 1-5 Power Cord Connection
The Plug
The Fuse

SIGLENT SSA3021X Specifications

General

Frequency Range	9 kHz to 2.1 GHz
Resolution Bandwidth (RBW)	1 Hz to 1 MHz
Sweep Time	1 ms to 1000 s
Input Impedance	50 Ω
Input VSWR	< 1.5
Maximum Input Level	+30 dBm
Tracking Generator	Optional
Displayed Average Noise Level (DANL)	-161 dBm/Hz
Interfaces	USB Host, USB Device, LAN, GPIB (optional)
Display Resolution	1024 points
Power Requirements	100 V - 240 V AC, 50 Hz/60 Hz
Phase Noise	-98 dBc/Hz @ 10 kHz offset (1 GHz carrier)
