Sigma DP1 Merrill User Manual

90
VIEWING IMAGES ON A TV
The DP1 Merrill camera can be connected to a television or a
video/DVD recorder using the provided AV cable, allowing the
recorded images to be viewed on the television monitor or
recorded on videotape/DVD.

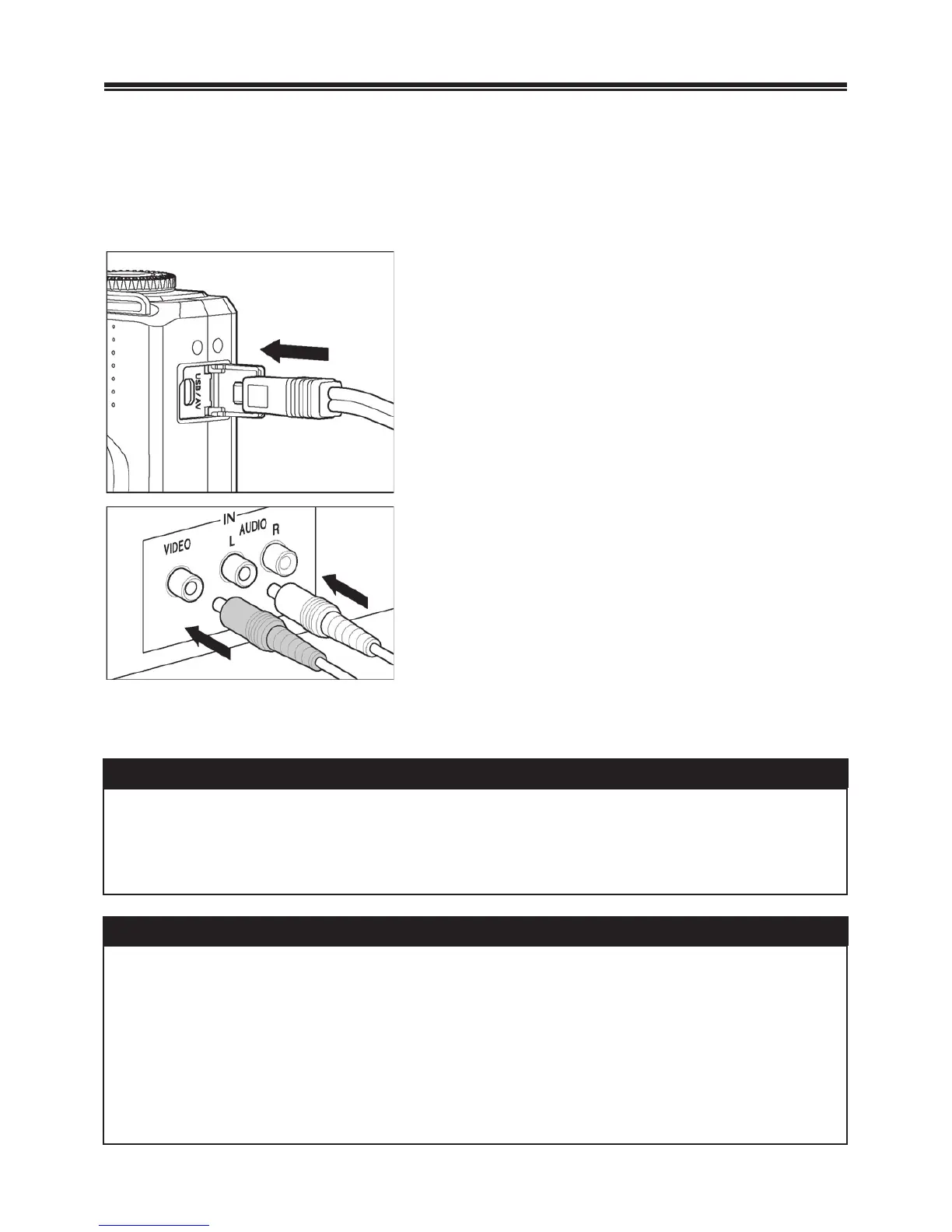

TO CONNECT THE CAMERA TO A
VIDEO DEVICE
1
Open the USB / AV cover.
2
Connect the AV cable to the Ჶ USB / AV Ჸ
terminal on the camera body.

3
Connect the yellow AV cable plug into the
video input terminal and the white plug
into the audio terminal of the TV
4
Turn on the camera and video device.
WARNING !!
x Please do not use any video cable other than the one provided with
your Sigma DP1 Merrill camera. Using other brands may cause
damage.
TIP
x It is recommended that the camera be powered with the AC
adapter (optional) during television playback to avoid draining the
battery.
x The default mode for the video signal is NTSC. When connecting
the camera to a PAL device, the Video Mode setting in the Camera
Set-up menu must be changed. (See P.121,122)

Sigma DP1 Merrill Specifications

General

Megapixel	46 MP
Camera type	Compact camera
Sensor type	CMOS
Image stabilizer	No
Total megapixels	48 MP
Image sensor size	- \
Image formats supported	JPG
Supported aspect ratios	3:2
Maximum image resolution	4704 x 3136 pixels
Still image resolution(s)	3264 x 2176
Optical zoom	- x
Focal length range	- mm
Minimum aperture number	2.8
Number of diaphragm blades	9
Lens structure (elements/groups)	9/8
Auto focusing (AF) modes	Contrast Detection Auto Focus, Multi Point Auto Focus, Selective Auto Focus
Closest focusing distance	0.2 m
Light metering	Centre-weighted, Evaluative (Multi-pattern), Spot
ISO sensitivity	-
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
Auto Exposure (AE) lock	Yes
Fastest camera shutter speed	1/2000 s
Slowest camera shutter speed	30 s
HD type	Not supported
Motion JPEG frame rate	30 fps
Video formats supported	M-JPEG
Maximum video resolution	640 x 480 pixels
Analog signal format system	NTSC, PAL
Audio formats supported	WAV
Internal memory	- MB
Compatible memory cards	MMC, SD
Display diagonal	3 \
Display resolution (numeric)	920000 pixels
USB version	2.0
Product color	Black
Photo effects	Black&White, Neutral, Sepia, Vivid
White balance	Auto, Custom modes, Daylight, Flash, Fluorescent, Incandescent, Shade
Self-timer delay	2, 10 s
Camera file system	DCF 2.0, DPOF 1.1, Exif 2.21, RAW
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, NOR, POL, POR, RUS, SWE
Power source type	Battery
Battery type	BP-41
Number of batteries supported	1
Cables included	AV, USB

Weight and Dimensions

Depth	64.3 mm
Width	121.5 mm
Height	66.7 mm
Weight	340 g
