SIGMATEK SCP 111 User Manual

SCP 111 S-DIAS SAFETY CPU MODULE
Page 22 04.11.2020

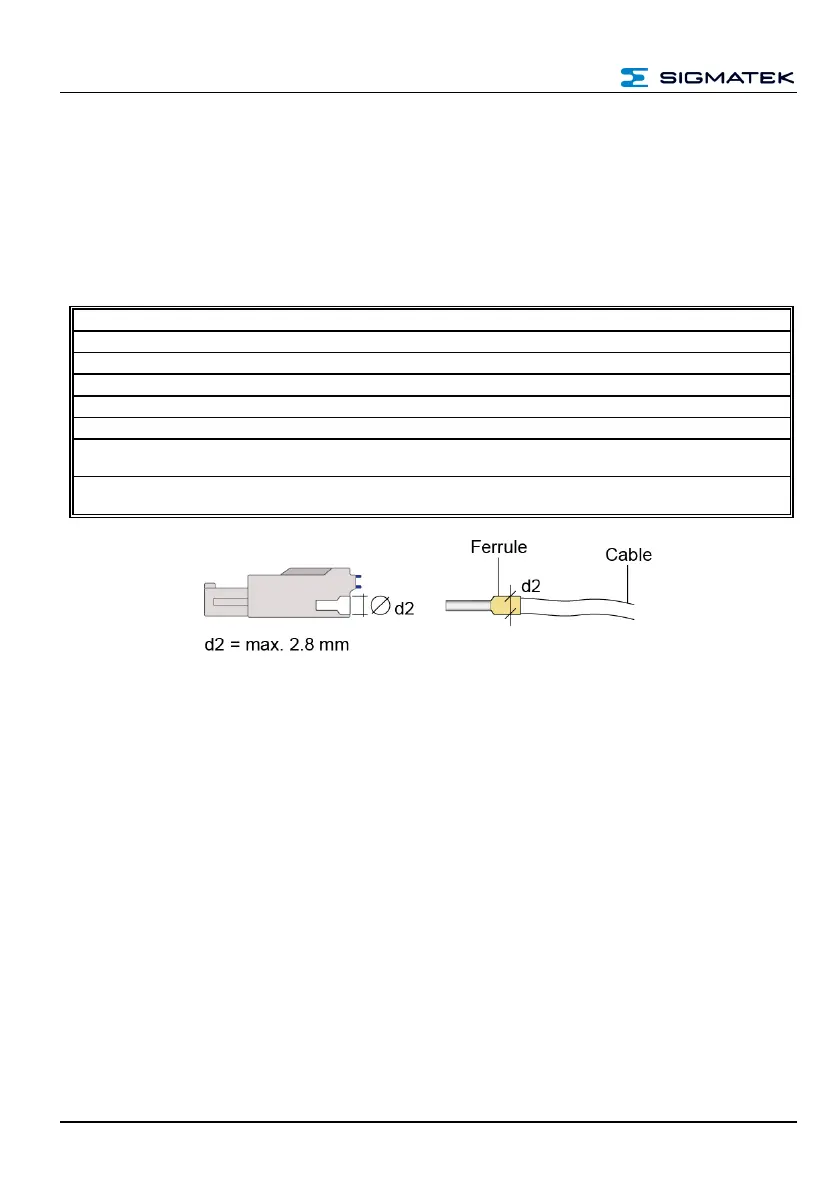

5.2 Applicable Connectors
Connectors:
X1: USB Type Mini-B (not included in delivery)
X2 – X3: Connectors with spring terminals (included in delivery)
The spring terminals are suitable connecting ultrasonically compacted (ultrasonically welded)
strands.
Connections:
Stripping length/Sleeve length:
10 mm
Mating direction:
parallel to the lead axis or circuit board
Conductor cross section rigid:
0.2-1.5 mm
2
Conductor cross section flexible:
0.2-1.5 mm
2
Conductor cross section ultrasonically compacted:
0.2-1.5 mm
2
Conductor cross section AWG/kcmil:
24-16
Conductor cross section flexible with ferrule without plastic
sleeve:
0.25-1.5 mm
2
Conductor cross section flexible with ferrule with plastic sleeve:
0.25-0.75 mm
2
(reason for reduction d2 of the
ferrule)
