SIGMATEK SCP 111 User Manual

SCP 111 S-DIAS SAFETY CPU MODULE
Page 54 04.11.2020

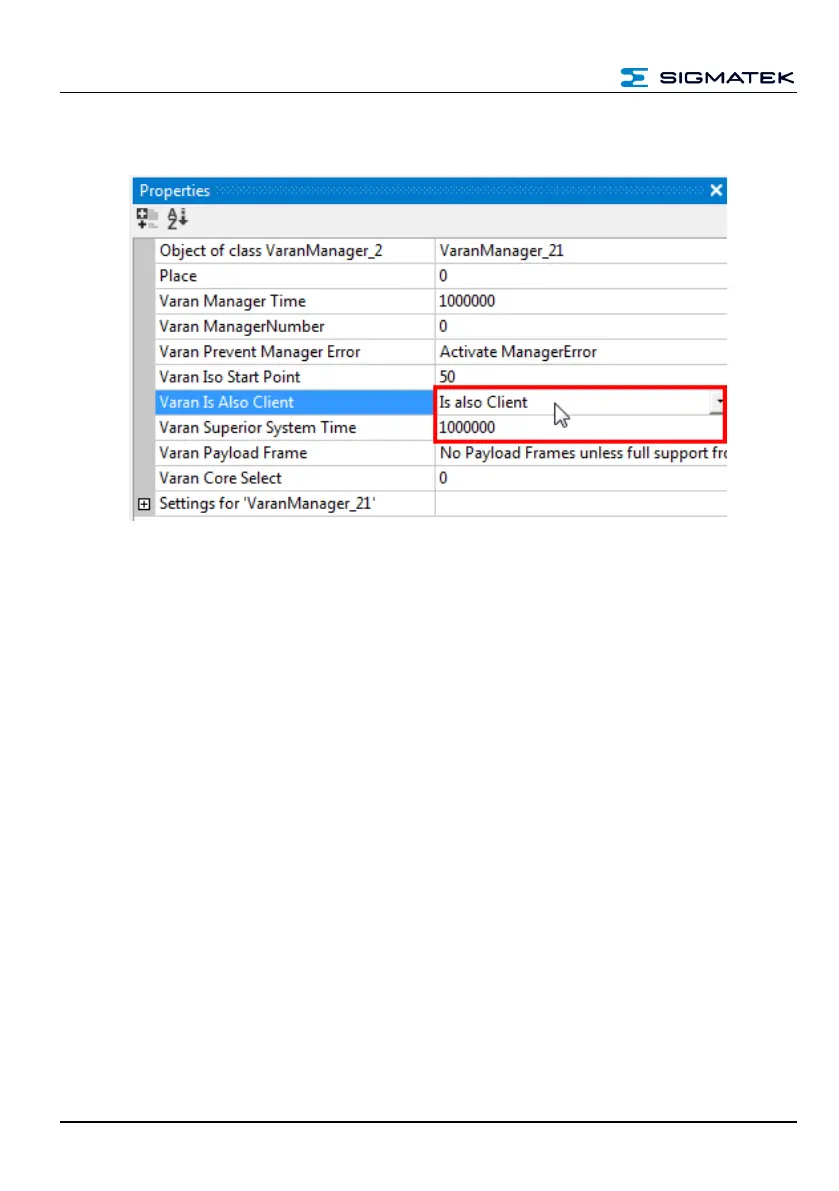

When using VMC052, the VaranManager_2 of the subordinate system must also be set so
that it is also used as a client and the VARAN cycle time of the higher-level system.
12.7.3 Safety Hot Swap (FlexCon Connection)
At least firmware version v453 is required for this functionality on all SCP111 modules of the
connection.
With this connection option, there is a FlexConHost and one or more FlexConNodes. Each
PLC can take only one of the two roles. Here only the Sync-Master can be used as
FlexConHost, as shown in the example:
