8.5 CARRIAGE SPRING FOR LASER KEYS
The MATRIX key-cutting machine comes with a spring system on the clamp carriage to control the range of
movement, considerably facilitating the cutting of laser keys. The spring function for laser keys is activated by
means of the knob (O) (Fig. 23) and causes pressure on the tool sides along the cutting track when making cuts;
this method allows the operator to trace cuts manually without pressing crosswise with the lever (C). Fig. 24, Fig.
25 and Fig. 26 illustrate the three examples of use of the spring system:
• CENTRAL cuts
• RIGHT-HAND cuts
• LEFT-HAND cuts
CENTRAL cuts

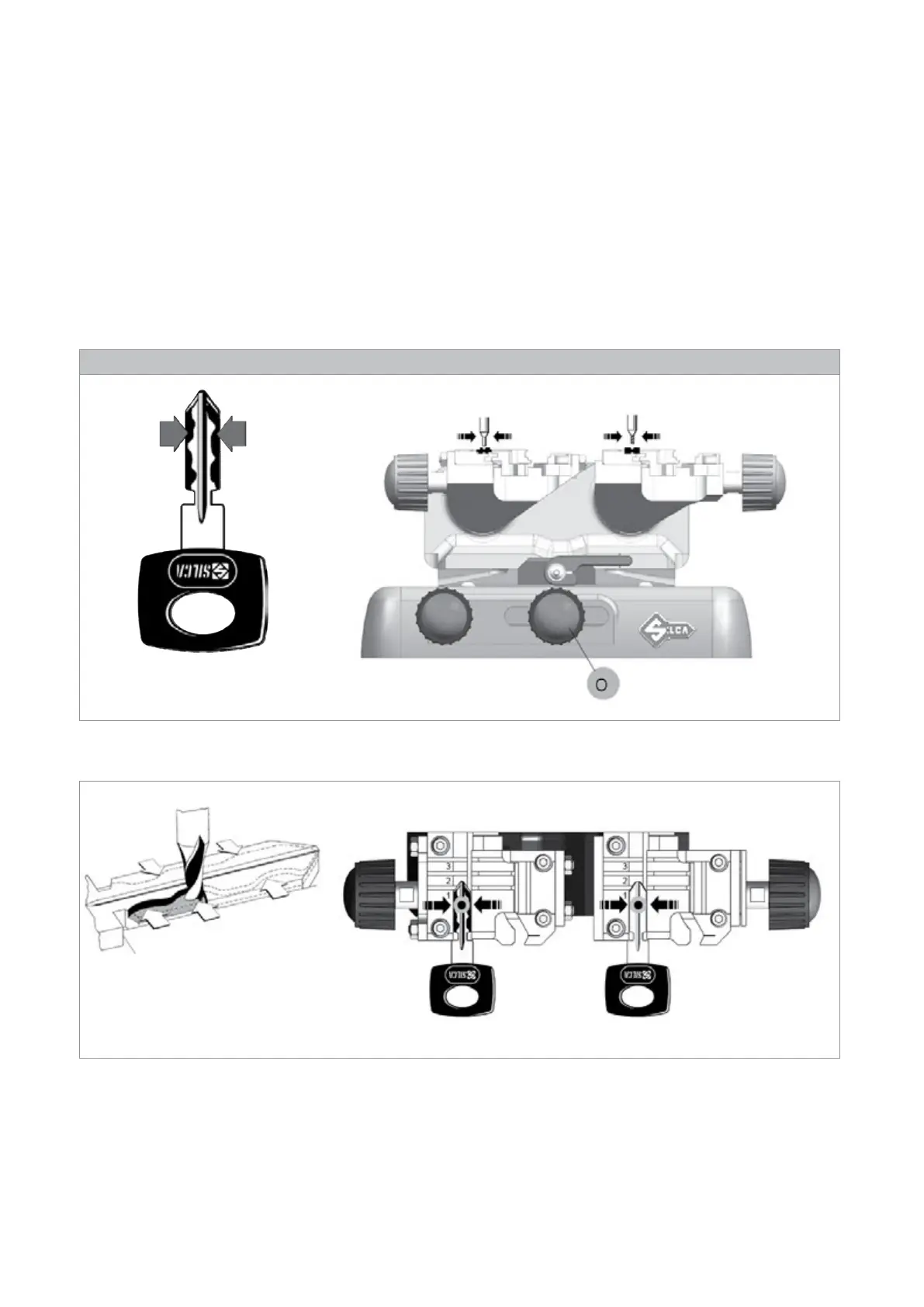

Fig. 23
Fig. 24
