10.14 REPLACING THE JAWS
Make sure the motor ON switch is OFF
10.14.1 REPLACING THE LEFT-HAND STATIONARY JAWS
1) Loosen the 2 screws (B3) and remove the jaw.
2) Fit the new jaw up against the left-hand side and align also from the front (Fig. 86).
3) Tighten the 2 screws (B3) without exerting pressure.
4) Check alignment (Ch. 10.13.1) and then fully tighten the 2 screws (B3).

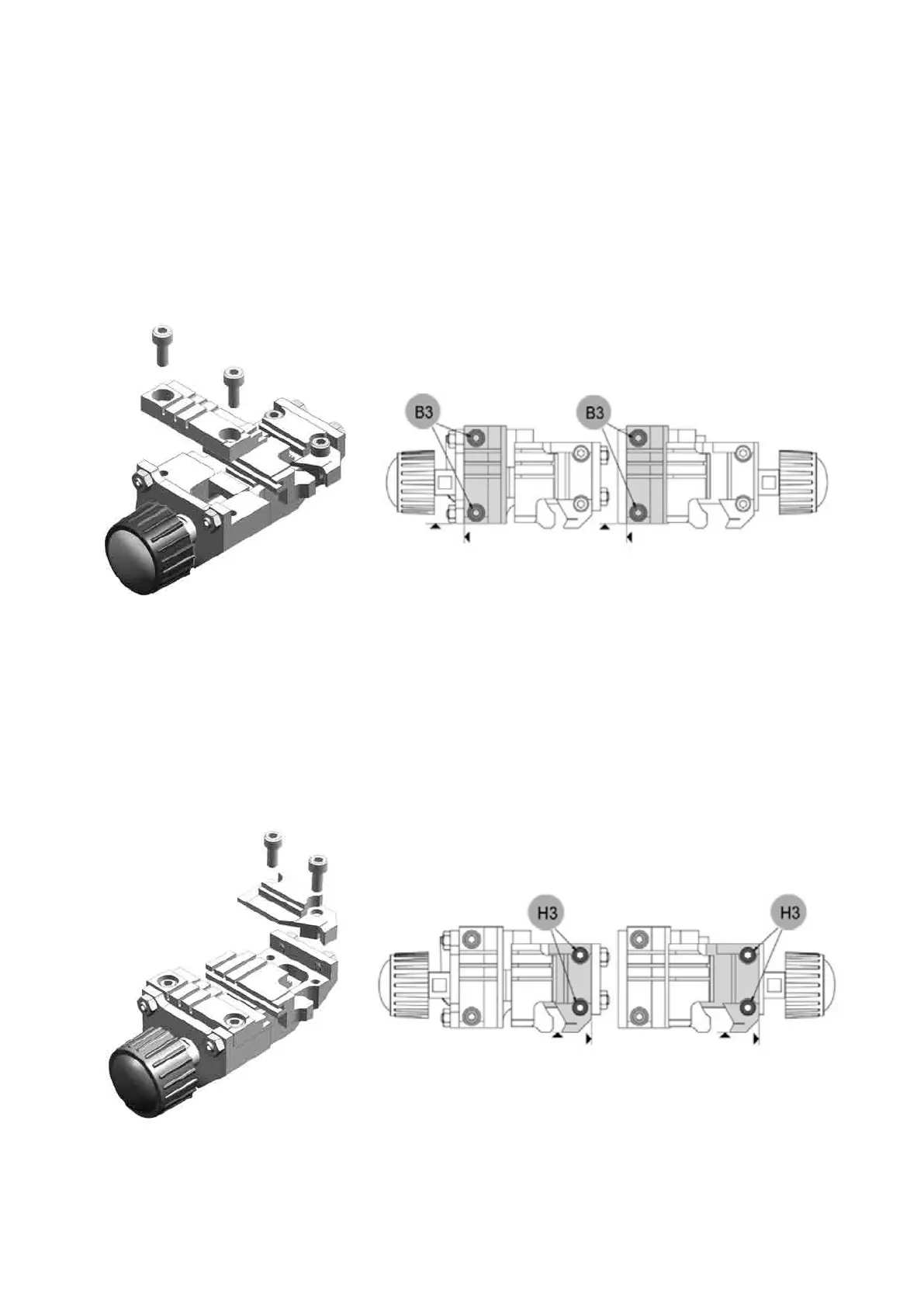

Fig. 85 Fig. 86
10.14.2 REPLACING RIGHT-HAND STATIONARY JAWS
1) Loosen the 2 screws (H3) and remove the jaw.
2) Carefully clean the seat and t the new jaw up against the right-hand side and align also from the front(Fig. 88).
3) Tighten the 2 screws (H3) without exerting pressure.
4) Check alignment (Ch. 10.13.2) and then fully tighten the 2 screws (H3).
Fig. 87 Fig. 88
