Silca Matrix Evo - Inclined Cuts

Operating Manual Matrix
Copyright Silca 2012 27
9.3.2 INCLINED CUTS
Proceed as follows for keys with inclined cuts:

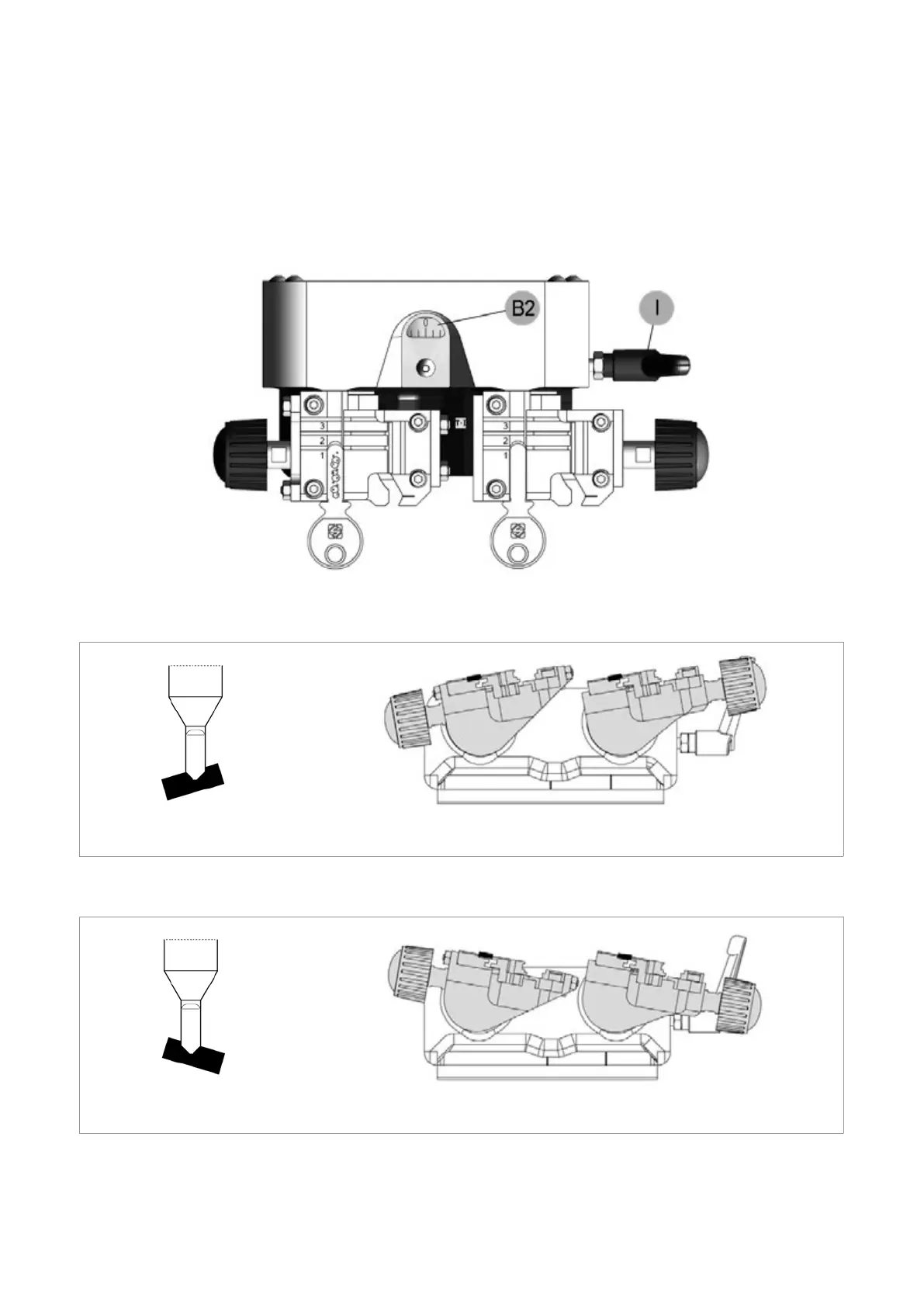

1) Loosen the handle (I) to free the clamps and incline them to the chosen angle (see index (B2) on graduated
drum) (Fig. 44).
2) Lock the clamps in place with the handle (I).
3) Make the cuts.
Fig. 44
Fig. 45
Fig. 46
