Silca Matrix Evo - Control Alignment Right-Hand Stationary Jaws

Operating Manual Matrix
Copyright Silca 2012 41

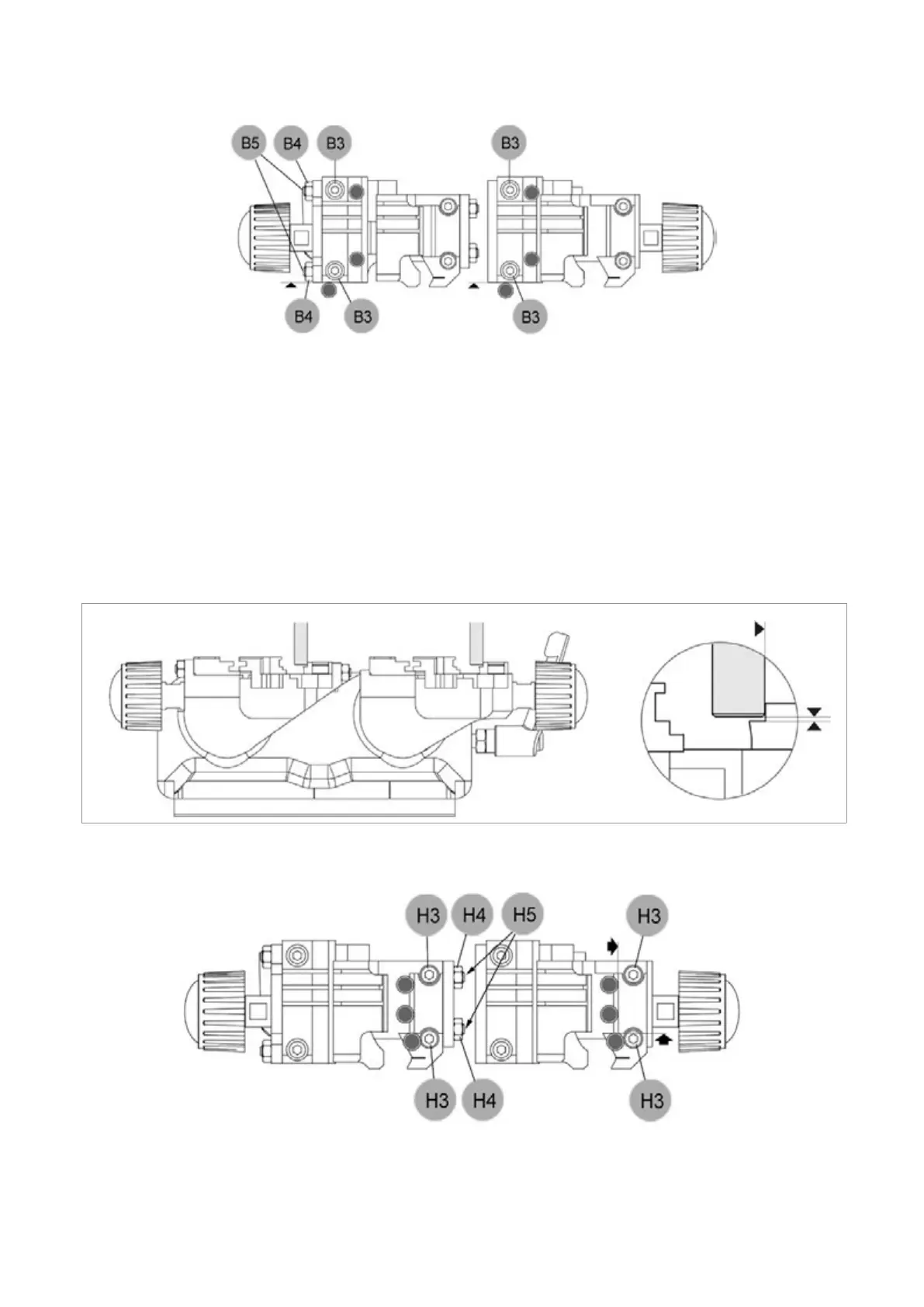

Fig. 82
10.13.2 CONTROL ALIGNMENT RIGHT-HAND STATIONARY JAWS
1) Lower the vertical carriage with the lever (D).
2) Align the 2 pins (Ch.8.3) on the key surface (seat for CS62 keys).
3) When the pins are aligned, raise them slightly with the lever (D) so that they are a few mm below the top
surface of the clamp. Turn the lever (D) clockwise to lock the height of the vertical carriage.
4) Move the clamp carriage with the lever (C) and take the pins into contact with several points on the right-hand
jaw. If the calibration board shows a green light the right-hand jaws are aligned.
5) If not, loosen the 2 screws (H3) and regulate the jaw (if necessary, loosen the 2 nuts (H4) and regulate the 2
grub screws (H5) until the condition described above is achieved.
Fig. 83
Fig. 84
