10.4 REPLACING THE TRANSPARENT SAFETY SHIELD
1) Remove the upper front unit (Ch.10.2).
2) Use a screwdriver to detach the shield from the upper front unit.
3) Attach the new shield to the upper front unit.
4) Replace the cover on the machine and secure with the 4 screws (K2).
5) Secure the rollbar with the 2 screws (R1).

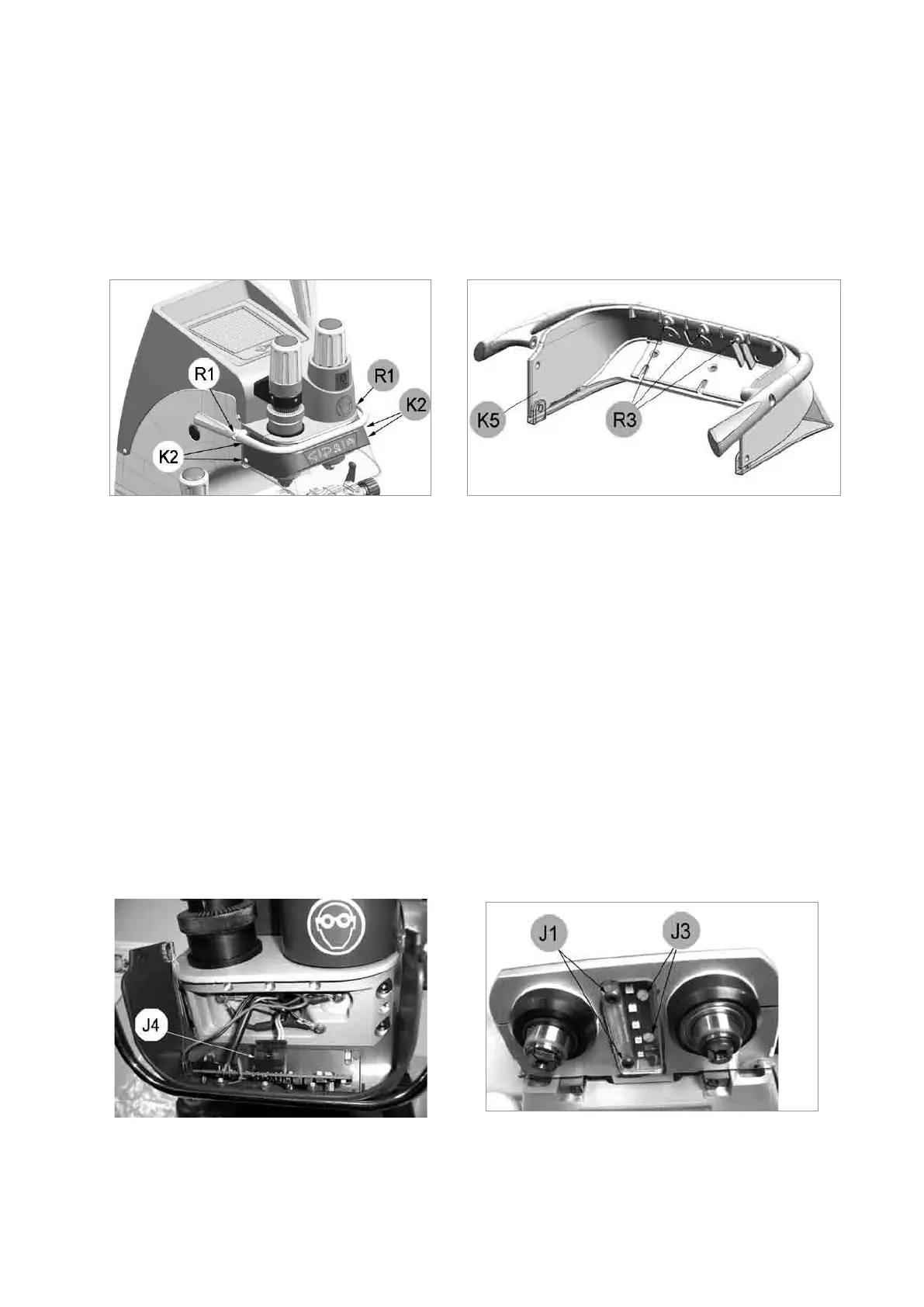

Fig. 59 Fig. 60
10.5 REPLACING THE LAMP
Follow the instructions below to replace the lamp:
1) Remove the upper front unit (Ch. 10.2).
2) Disconnect the connector (J4) (Fig. 61).
3) Loosen and remove the 2 screws (J1) securing the lamp glass (Fig. 62).
4) Loosen and remove the 2 screws (J3) securing the LED board.
5) Pull the LED lamp downwards.
6) Fit the new LED board so that the wire passes over the top and connect the connector to the board.
7) Secure the new board with the 2 screws (J3).
8) Secure the lamp glass with the 2 screws (J1).
9) Connect the connector (J4).
10) Replace the upper front unit on the machine and secure with the 4 screws (K2).
11) Secure the rollbar with the 2 screws (R1).
Fig. 61 Fig. 62
