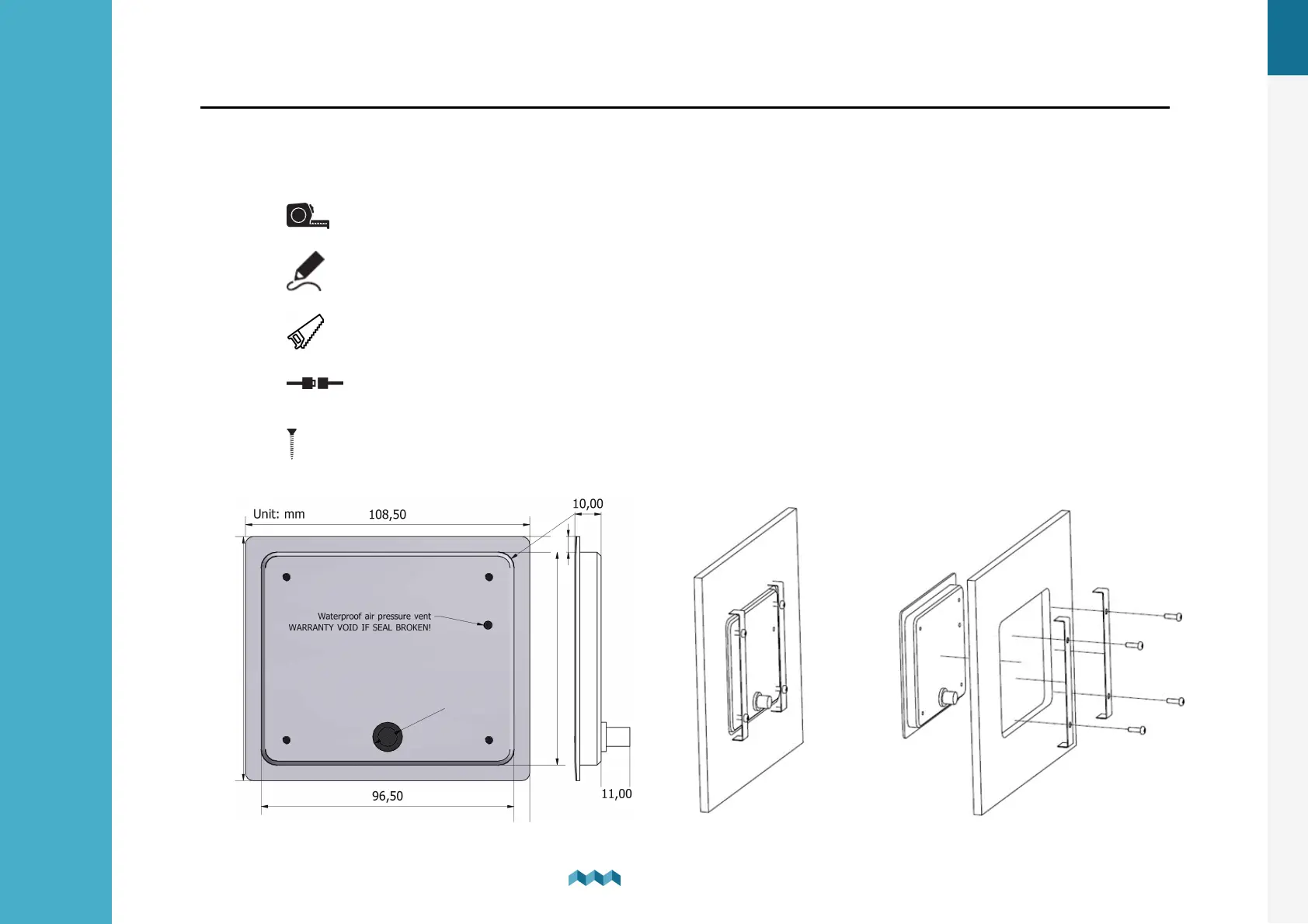

5.1.2 PICO Panel-mount

PICO Panel-mount version dimensions are 108.5 x 94 x 10 mm (4.27 x 3.70 x 0.39 in). It needs an installation cutout of 98 x

83mm. It can be mounted with supplied threaded rods and brackets or bonded with adhesive if there is no rear access to the

mounting surface.

1. Before cutting out, check if there is enough space for your PICO.

2. Mark the cutout line with the supplied installation template.

3. Using a saw, carefully cut out the marked area.

4. Connect the connector on the back side of PICO to the splitter cable (be sure to align the pins correctly)

and fasten it by turning the safety ring clockwise.

5. Finish mounting the PICO from the back side with the supplied threaded rod and nuts. Screws, rods and

nuts MUST be fastened by hand. Excessive force may damage the threads on PICO.
