Simplicity 1693074 Service And Repair Manual

10 - 15
9. Reconnect the shift lever (D, Figure 28) to the trans-
mission shift shaft (E) using the original hardware.
The shift shaft can be accessed through a circular
access hole in the battery compartment
(A, Figure 27).
10.Engage the parking brake.
11.Rotate the drive belt (A, Figure 29) onto the transmis-
sion input pulley (B).
12.Reconnect the wire harness to the neutral safety
switch (C, Figure 29).
13.Reinstall the rear wheels (see REAR WHEEL
INSTALLATION AND REMOVAL, Section 6).
14.Perform the transmission neutral adjustment (see
NEUTRAL ADJUSTMENT, Section 4) in necessary.

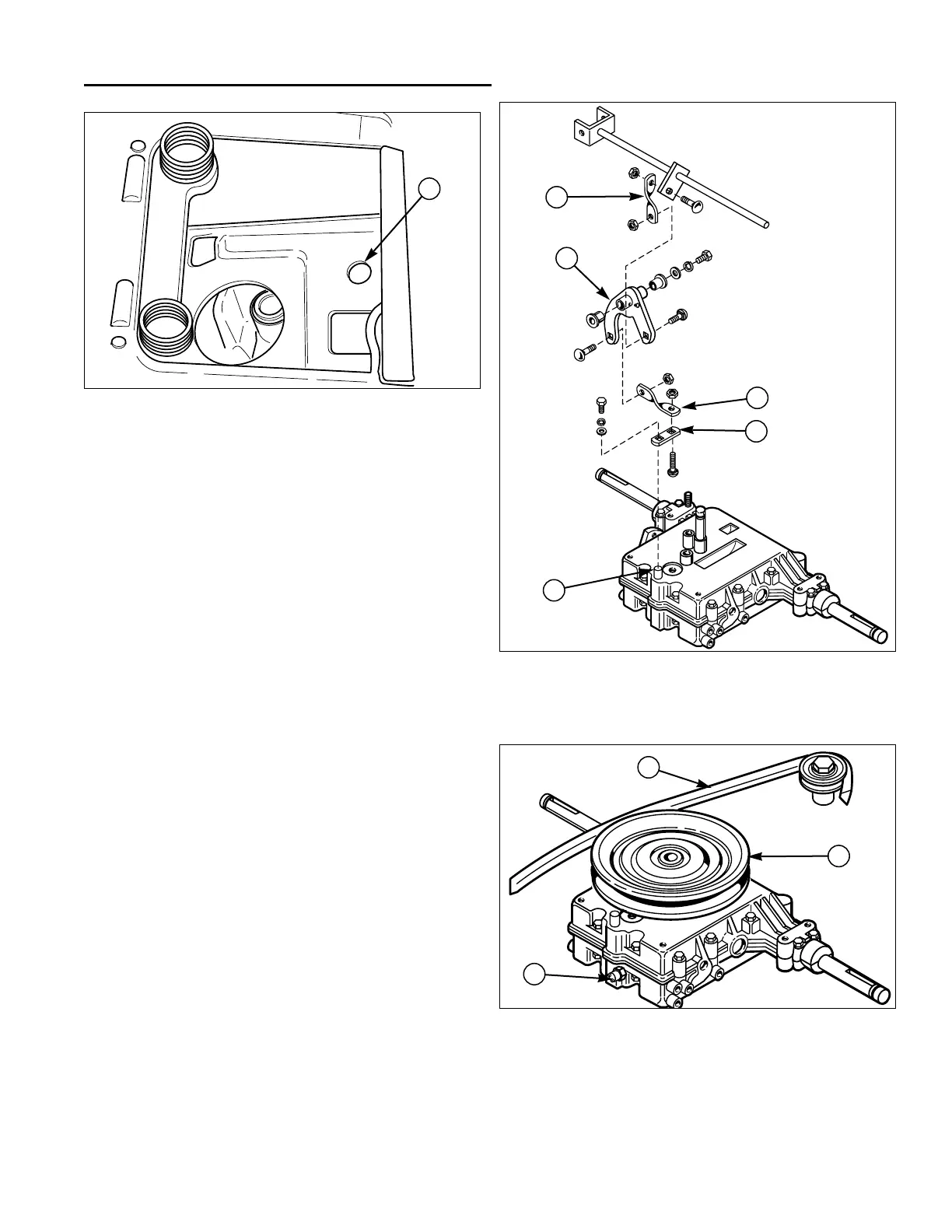

10 Transmission Removal & Installation
Peerless (Gear Drive) Units
Figure 29. Remove Drive Belt From Pulley
A. Drive Belt
B. Transmission Input Pulley
C. Neutral Safety Switch
Figure 27. Access Hole Location
A. Round Access Hole
A
Figure 28. Peerless Shift Linkage
A. Upper Shift Link D. Shift Lever
B. Bell Crank Assembly E. Shift Shaft
C. Lower Shift Link
A
B
C
D
E
A
B
C
