7 Transmission Repair
7C Tuff Torq K60
23. Remove the two swash plate bearings from the hous-
ing.

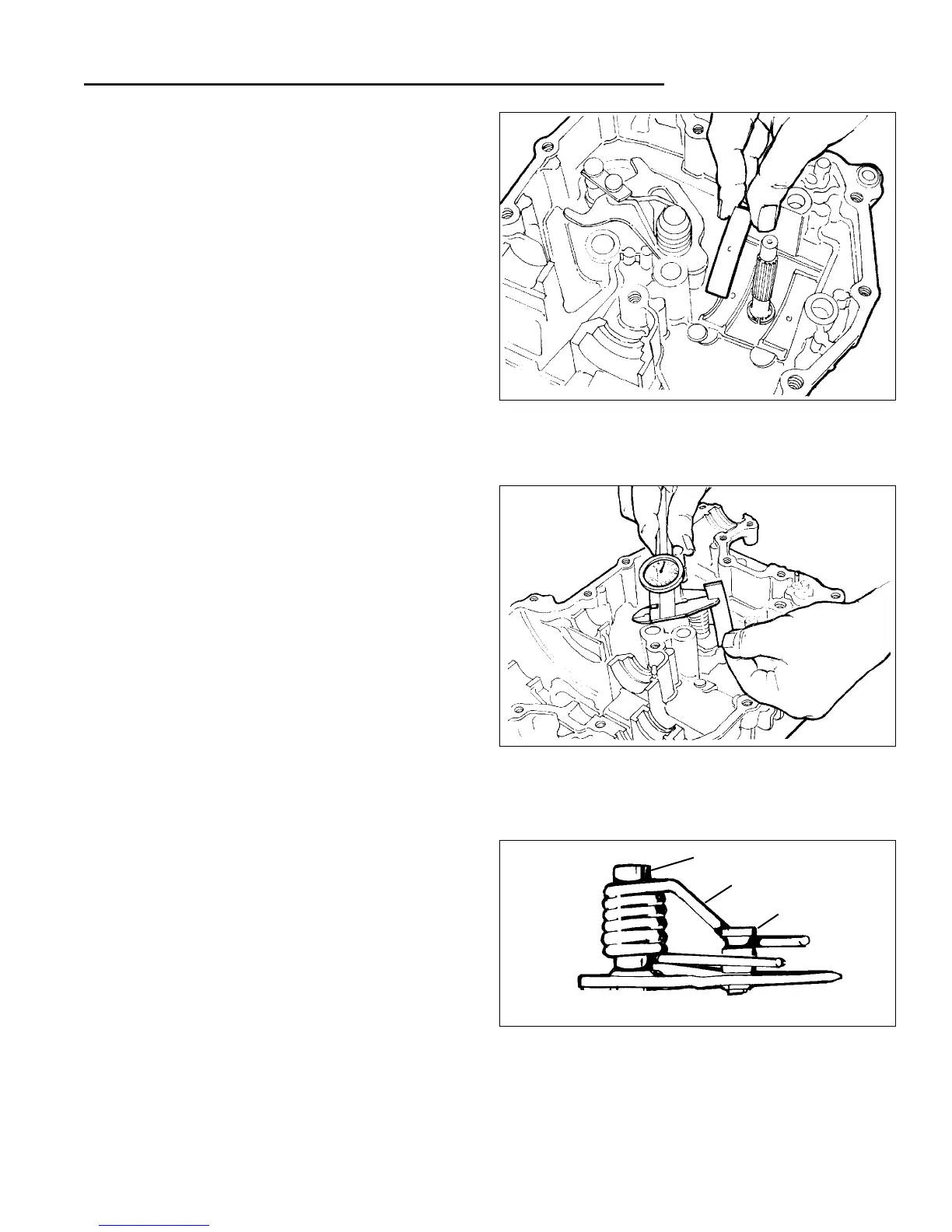

Figure C–35. Remove Swash Plate Bearings
24. Inspect the swash plate bearings for wear or scoring.
25. Measure the thickness of the bearings:
Thickness: 1.45–1.55 mm (.057–.061“)
Minimum thickness: 1.30 mm (.051“)
Figure C–36. Inspect Swash Plate Bearings
26. Unhook the control shaft centering spring from the
fulcrum pin.
27. Remove the centering spring from the control shaft.
Fulcrum Pin
Control Shaft
Centering Spring
Figure C–37. Remove Centering Spring
