Simplicity LTH Series

7 Transmission Repair
7C Tuff Torq K60
7 - 56

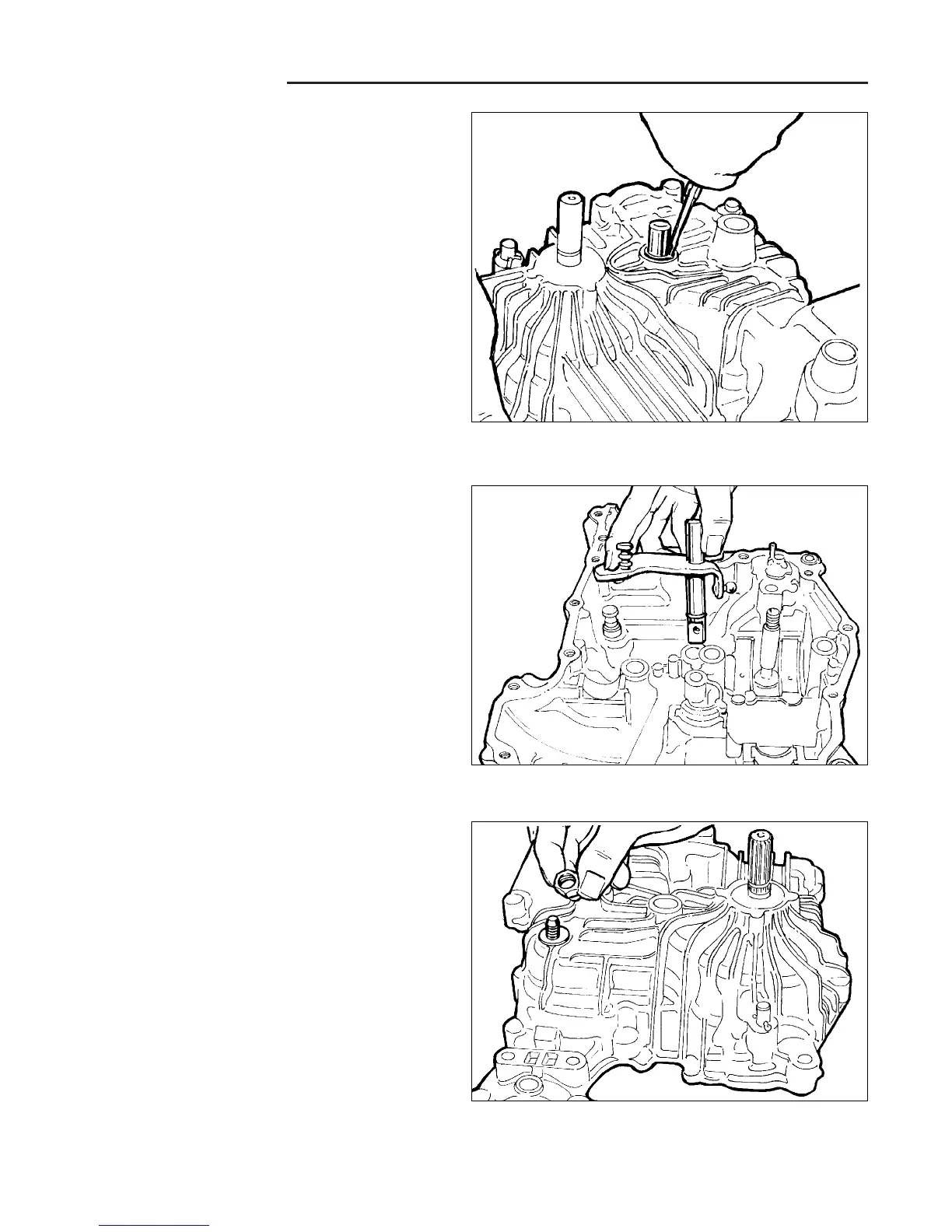

27. Turn the transaxle case over and remove the retain-
ing ring on the control shaft.
Figure C–38. Remove Control Shaft Retaining Ring
29. Remove the fulcrum pin nut and washer.
Figure C–40. Remove Fulcrum Pin Nut and Washer
Figure C–39. Remove Control Shaft
28. Remove the control shaft from the case.
