Overview
The unit has a built-in CHIRP/Broadband and StructureScan sonar.
The unit can network over NMEA 2000, this allows access to sensor
data.
The unit has built-in high speed GPS receiver (10Hz) and supports
Insight charts from Navico including Insight Genesis. The system
also supports charts from Navionics and C-MAP as well as content
created by a variety of third party mapping providers in the AT5
format. For a full selection of available charts, visit
www.gofreemarine.com, www.c-map.com or www.navionics.com.
The unit may be mounted to the vessel with the supplied mounting
bracket, or panel mounted on the dash.
The unit is intended for 12 V DC operation and will accept the
moderate fluctuations commonly seen in DC systems.

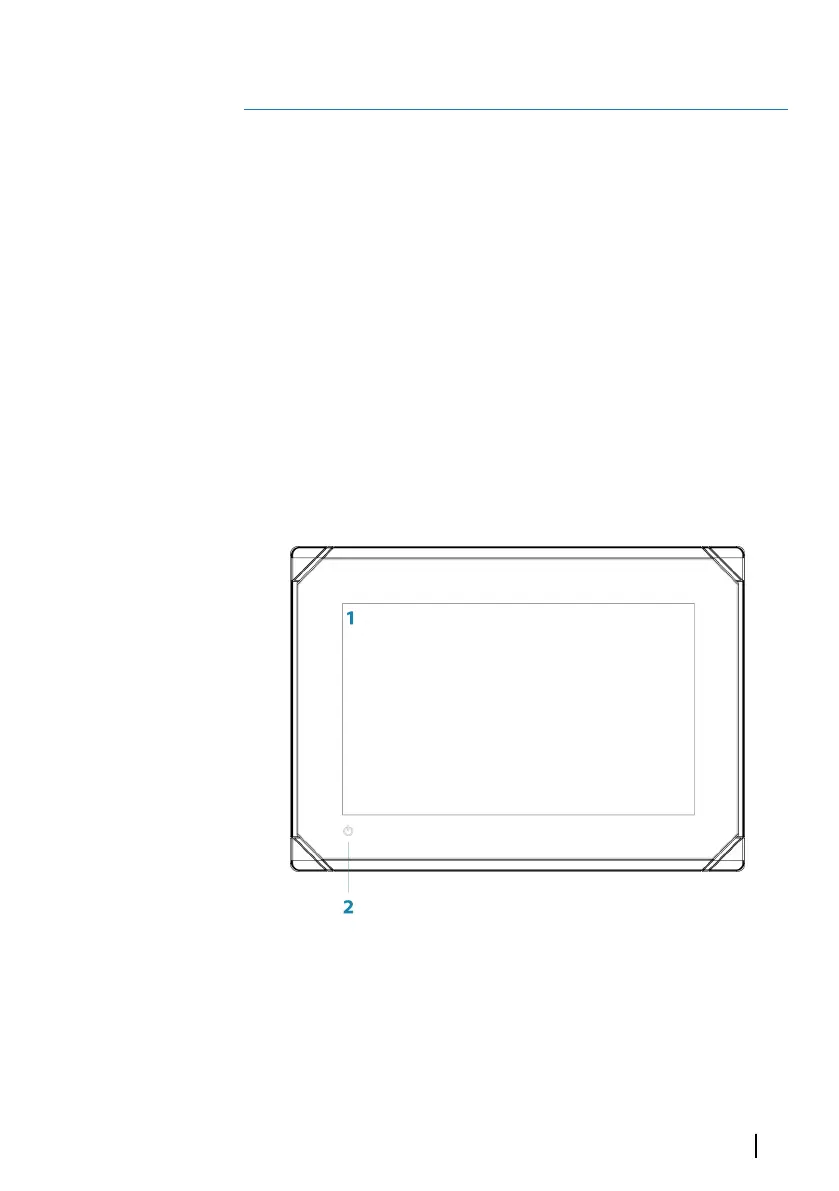

Front controls
1 Touch screen
2 Power button
Press and hold to turn the unit ON/OFF.
Press once to display the System Controls dialog.
2
Overview | GO XSE Installation Manual
13
