Warning: When installing, ensure appropriate safety
equipment is used. For example, ear muffs, protective
glasses, gloves and a dust mask. Power tools may
exceed safe noise levels, and can cast off dangerous
projectiles. The dust from many materials commonly
used in boat construction may cause irritation or
damage to eyes, skin, and lungs.
Bracket mounting

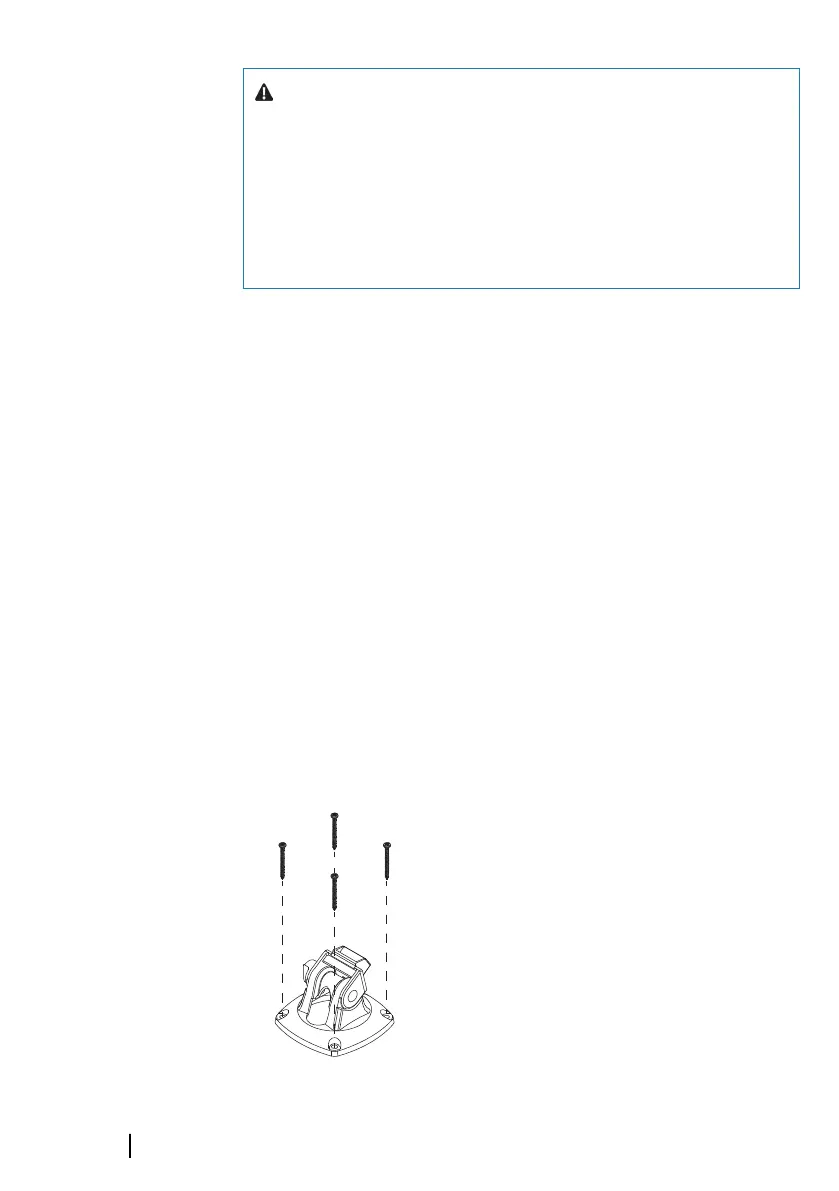

Quick release bracket mounting
The GO5 XSE can be mounted with the quick release bracket.
1. Place the bracket in the desired mounting location. Ensure that
the chosen location has enough height to accommodate the
unit fitted in the bracket, allows tilting of the unit and
connecting cables in the back.
Ú
Note: Ensure that the chosen location has enough height to
accommodate the unit fitted in the bracket, allows tilting of the
unit and connecting cables in the back.
2. Mark the screw locations using the bracket as a template, and
drill pilot holes.
Ú
Note: Use fasteners suited to the mounting surface material. If
the material is too thin for self-tappers, reinforce it, or mount
the bracket with machine screws and large washers. Use only
304 or 316 stainless steel fasteners.
3. Screw down the bracket.
4. Snap the unit to the bracket.
18
Installation | GO XSE Installation Manual
