Simrad GO XSE - GO9 XSE Dimensional Drawings

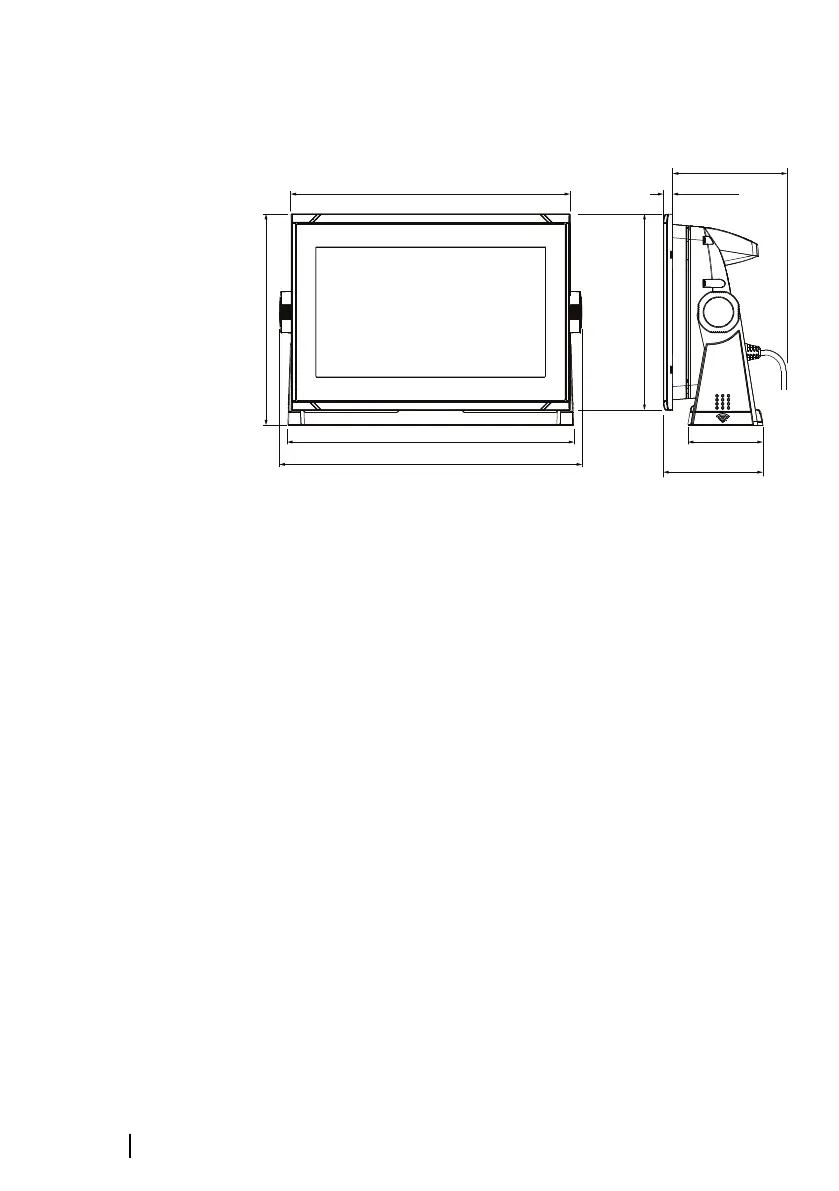

GO9 XSE Dimensional drawings
242.0 mm (9.52”)
248.0 mm (9.76”)
263.0 mm (10.35”)
24.0
mm
(0.94”)
184.0 mm (7.24”) 170.0 mm (6.69”)
7.0 mm (0.27”)
90.0 mm (3.54”)
79.0 mm (3.11”)
