connection elsewhere in the network, and ensure the existing
network is not powered by 24 V DC.
Ú
Note: Do not connect the NMEA 2000 power cable to the same
terminals as the engine start batteries, autopilot computer, bow
thruster or other high current devices.

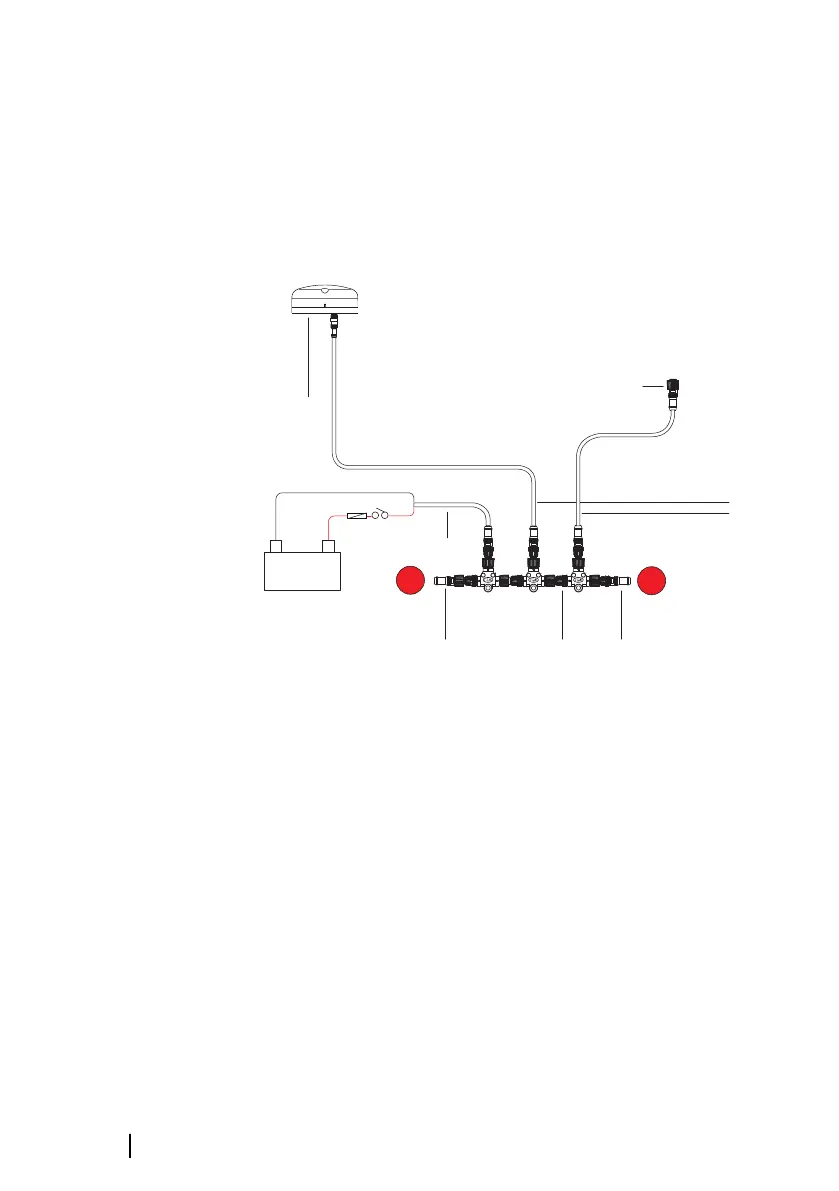

The following drawing demonstrates a typical small network. The
backbone is made up of directly interconnected T-connectors.
+
_
1
2 V DC
T
3
44
6
2
1
T
5
1 NMEA 2000 device
2 Connector to unit
3 Drop-cable, should not exceed 6 m (20 ft)
4 Terminators
5 Backbone
6 Power cable
CZone connection to NMEA 2000
When interfacing to CZone network it is recommended to use a BEP
Network interface bridge to join the two network backbones
together.
28
Wiring | GO XSE Installation Manual

Simrad GO XSE Specifications

General

GPS	Yes
Chartplotter	Yes
NMEA 2000	Yes
Wi-Fi	Yes
Bluetooth	Yes
Waterproof Rating	IPX7
Operating Voltage	12V DC
Sonar	Yes (built-in)
Cartography	C-MAP, Navionics
Mounting Type	Bracket or Flush Mount
Screen Size	7-inch, 9-inch
Screen Resolution	800 x 480 pixels
