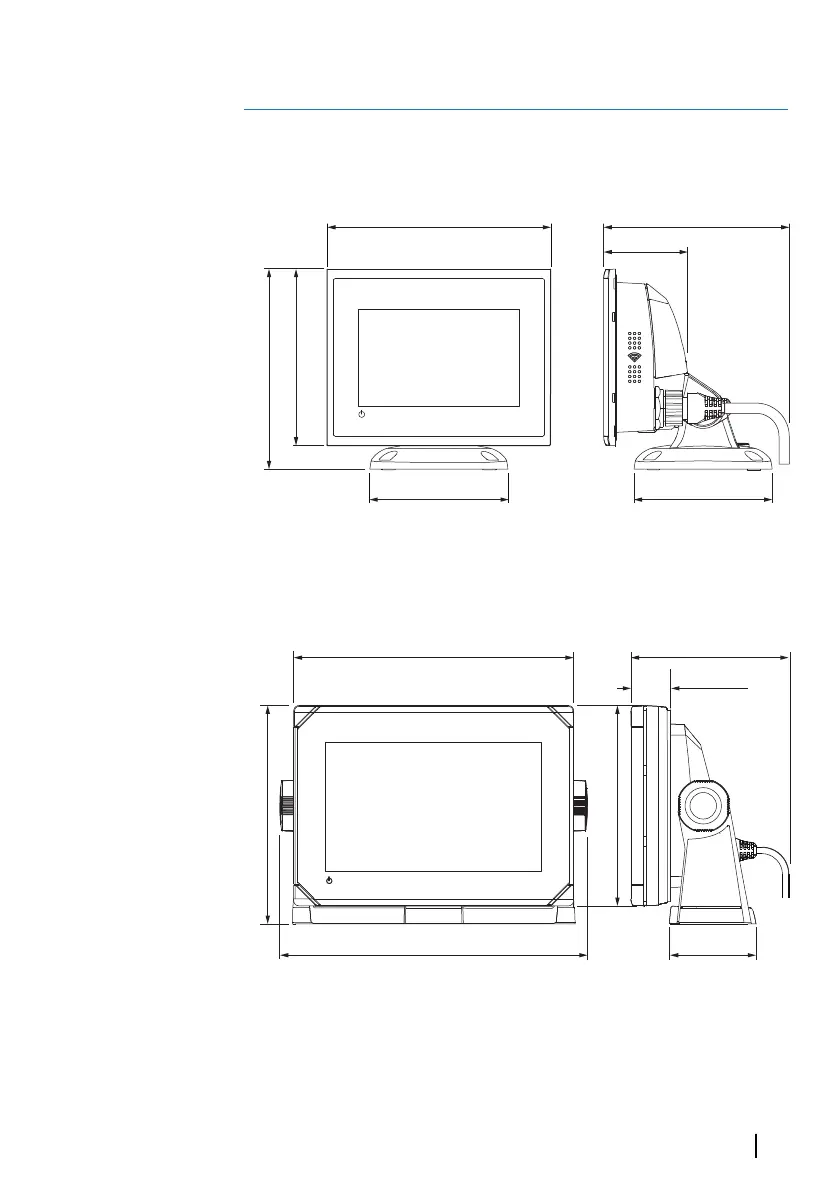

Dimensional drawings
GO5 XSE Dimensional drawings
152.0 mm (5.98”)
94.0 mm (3.70”)
136.0 mm (5.35”)
120 mm (4.72”)
94.0 mm (3.70”)
117.5 mm (4.62”)
58.0 mm
(2.28”)
GO7 XSE Dimensional drawings
199.0 mm (7.84”)
108.55 mm (4.27”)
28.5 mm
(1.12”)
37.0 mm
(1.45”)
220.00 mm (8.66”)
154.0 mm (6.06”)
142.0 mm (5.60”)
