Power Connections
GO5 XSE Power connection
The unit is powered by 12 V DC. It is protected against reverse
polarity, under voltage, and over voltage (for a limited duration).
The plug of the supplied power cable has two discrete cables
exiting from it. The thickest of the two cables provides the
following:
• Power into the system (Red and Black wires).
• Controlling power state of the unit (Yellow wire).

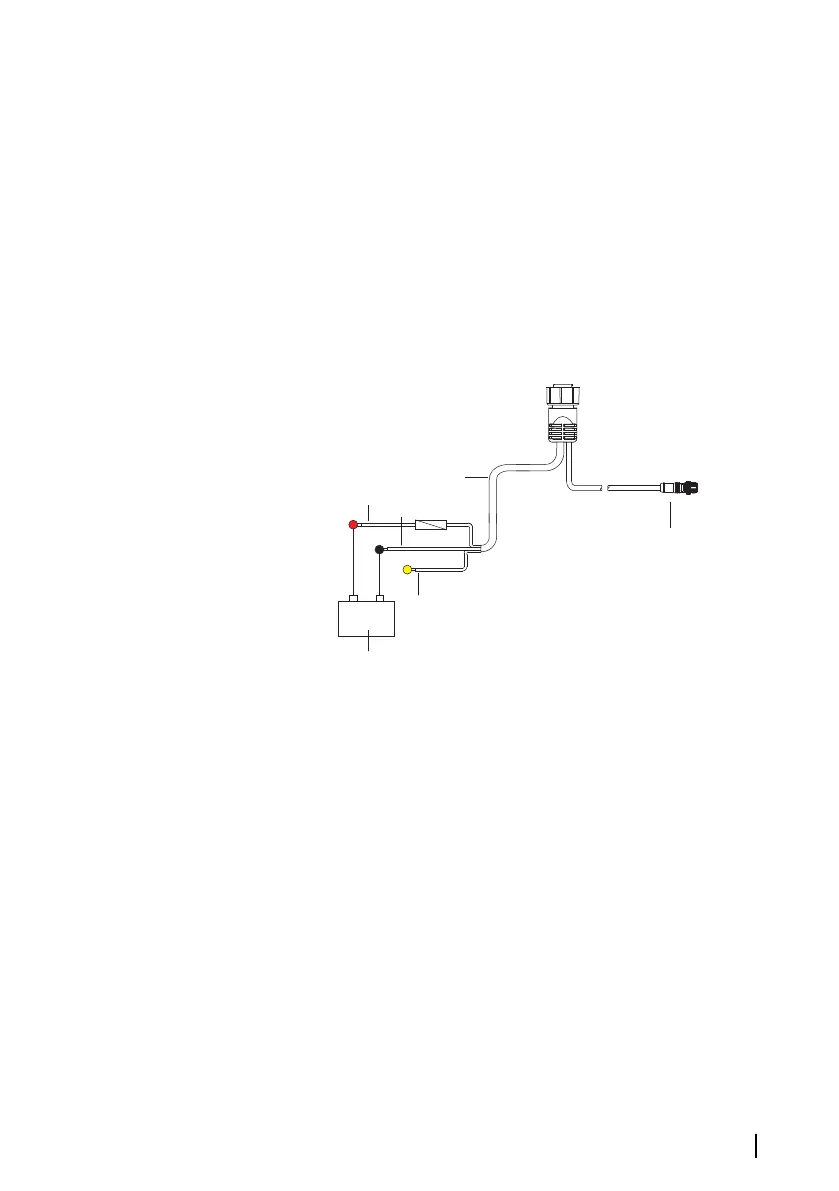

1 Power cable
2 12 V DC positive wire (red) shown with fuse holder fitted
3 12 V DC negative wire (black)
4 Power control wire (yellow)
5 Vessel’s 12 V DC supply
6 NMEA 2000 cable and connector
Connect Red to (+) DC using a 3 amp fuse.
Connect Black to (-) DC.
The unit can be powered on and off using the power button on the
front of the case.
Wiring | GO XSE Installation Manual
23
