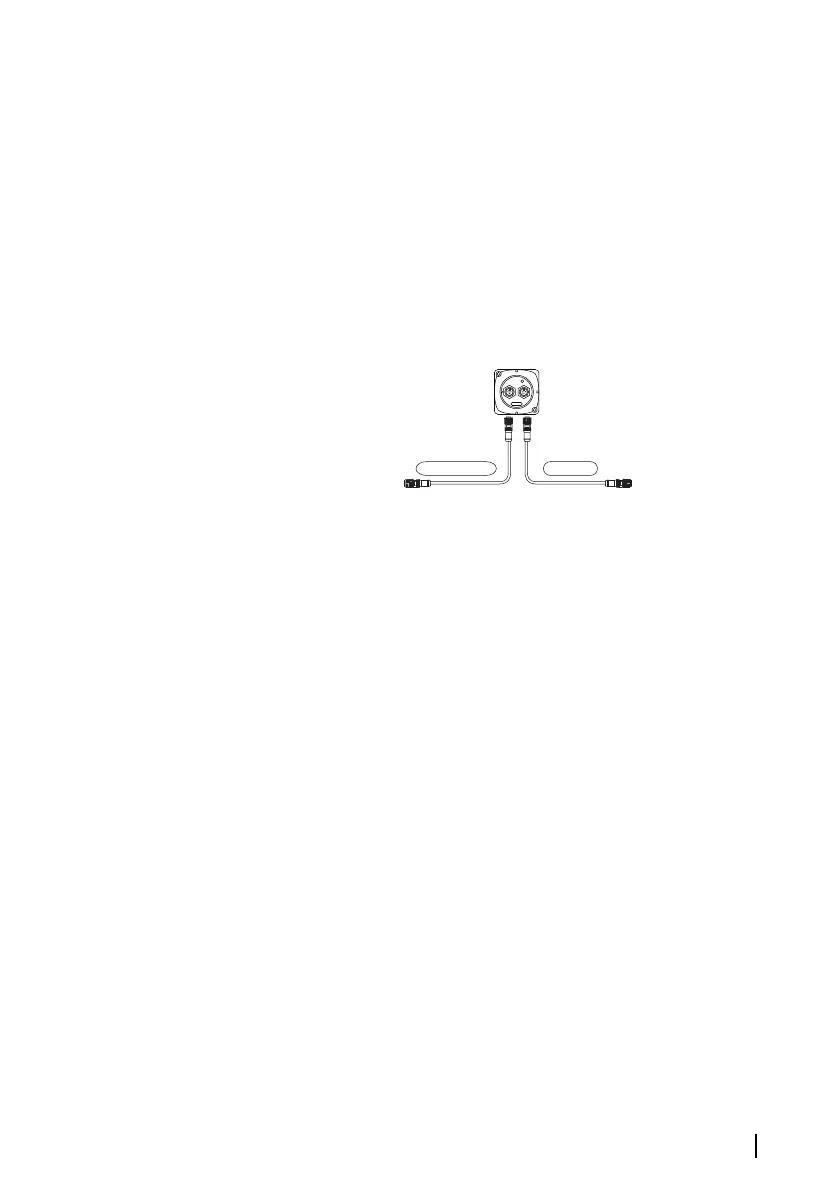

The CZone / NMEA 2000 Network interface bridge isolates the
power of the two networks, but allows data to be freely shared
between both sides.
The Interface Bridge can also be used for expansion of the NMEA
2000 network, when the maximum node limit (node = any device
connected to network) for the network has been reached or the
maximum cable length of 150 m will be exceeded. Once an
Interface Bridge has been fitted, a further 40 nodes and additional
cable length can be added.
The Network Interface is available from your BEP dealer. For more
information please refer to the BEP web site www.bepmarine.com.
NETWORK INTERFACE
Net
work 1 Network 2
CZONE
NETWORK
67$786
5HG1HWZRUN
*UHHQ1HWZRUN
CZONENMEA2000
Transducer connection
The unit has internal CHIRP, Broadband, and StructureScan sonar.
Transducers fitted with a 9 pin connector can be plugged directly
into the 9 pin port on the back of the unit. For connector location,
refer to the embossed labeling on the back of the unit.
Ú
Note: The connector attached to the transducer cable is keyed,
and can only be inserted in one orientation. Once inserted, turn
locking collar to secure.
Ú
Note: Transducer installation instructions are included with the
transducers.
Ú
Note: A 7-pin transducer cable can be connected to the port
using a 7-pin to 9-pin adaptor cable. However, if the transducer
has a paddle wheel speed sensor, the water-speed data will not
be displayed on the unit.
Radar connector
The GO5 XSE and GO7 XSE do not have a Radar port.
The Radar port allows connecting the unit to your radar scanner
using a 5 pin (Ethernet) connector.
Wiring | GO XSE Installation Manual
29
