Simrad GO XSE Installation Manual

+
_
A
B
D
C

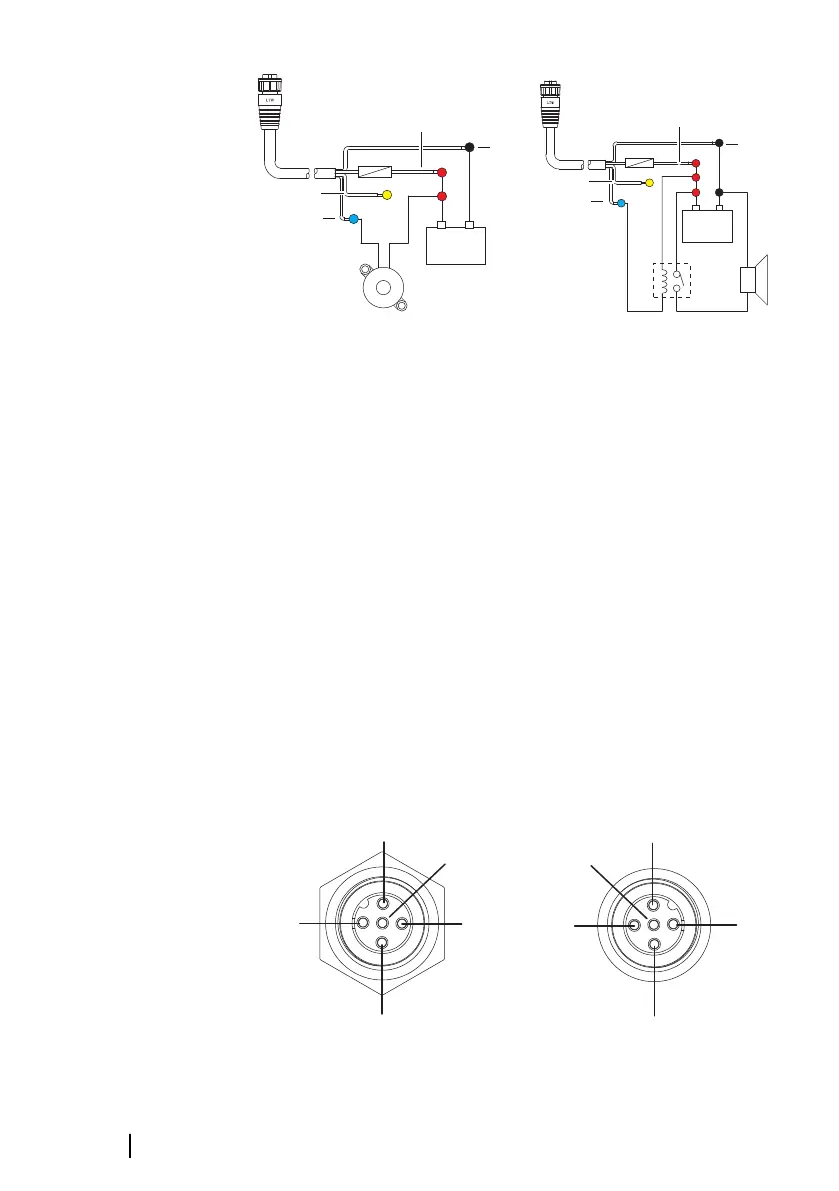

Buzzer
+
_
A
B
D
C
Siren
A Negative power wire (black)
B Positive power wire (red)
C Power control wire (yellow)
D Alarm wire (blue)
Connecting control devices
The unit can be controlled with an OP40 or OP50 Remote controller
connected on the NMEA 2000 network.
NMEA 2000 backbone
NMEA 2000 Device connection
The NMEA 2000 data port allows the receiving and sharing of a
multitude of data from various sources.
2
1
3
4
5
Unit socket (male)
1
2
5
4
3
Cable plug (female)
26
Wiring | GO XSE Installation Manual
