2.10 Backlighting
The backlighting illuminates the display and the keys, with five
levels of brightness.
To switch the backlighting on, press the LIGHT key. The dis-
play will illuminate and the large digits will show the current
lighting level (Fig 2.11) -
Instruction Manual
15
E04052
Press the (UPPER INFO) key to increase the brightness (max
5), (ALARM TIMER) to decrease it (min 1), (LOWER
INFO) to accept the selected brightness or (LIGHT) to turn
the backlighting off.
NOTE While the backlighting is on, the lamp icon ( ) will be shown
on the bottom left of the display.
The backlighting can either be Local or Network controlled. Local
control means that any adjustments to lighting will only affect
this specific instrument. With Network control, all instruments
in the network will be affected. See Section 3.7 for more details.
COMBI
LIGHT
ALARM
TIMER
UPPER
INFO
LOWER
INFO

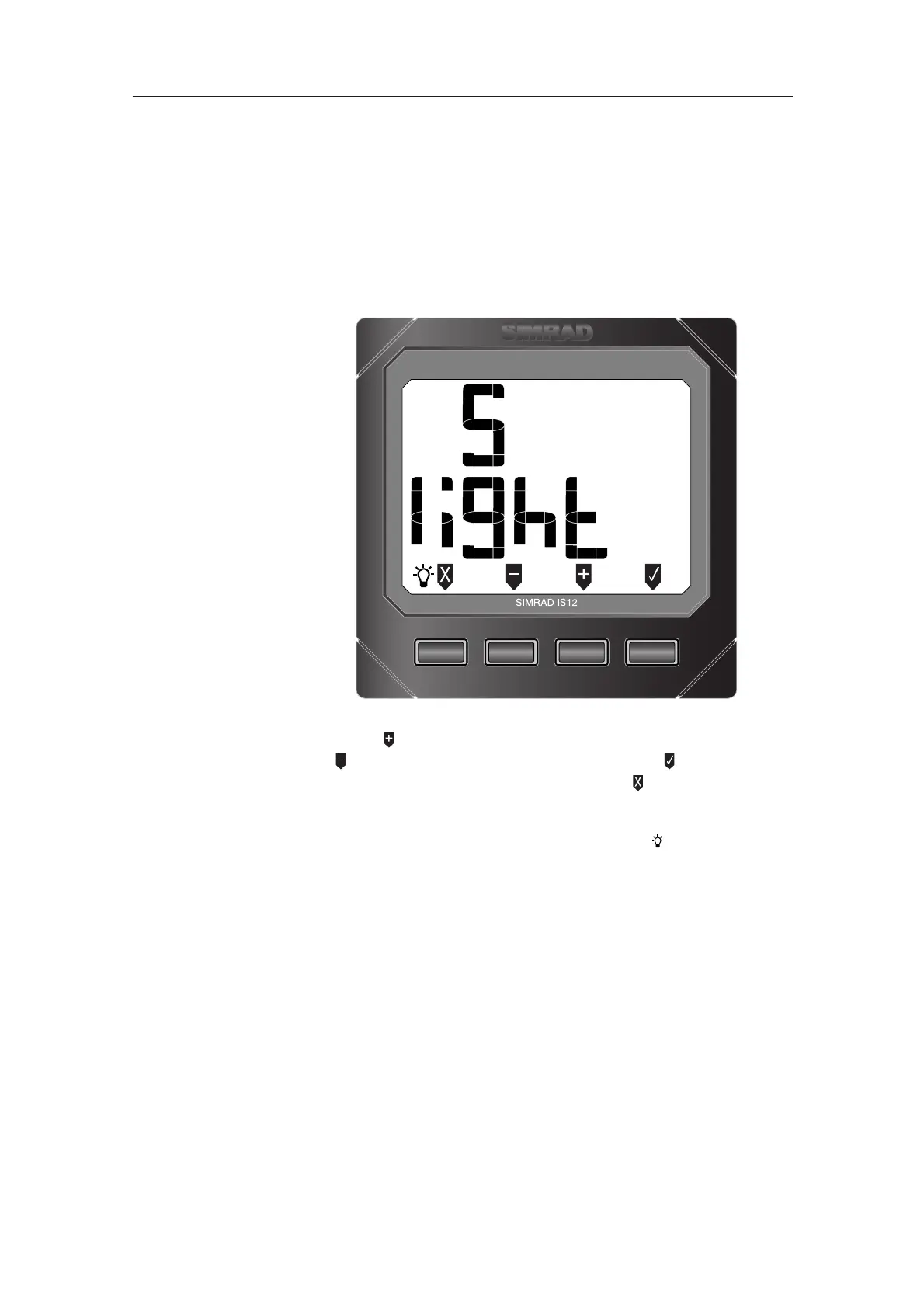

Fig 2.11 - Adjusting Backlighting
