NOTE If no key is pressed within 5 seconds, the display will exit to
the main screen and any changes will be ignored.
If the alarm sounds, press ALARM TIMER to acknowledge
and cancel.
NOTE The deep alarm cannot be set lower than the shallow alarm, and
the shallow alarm cannot be set higher than then deep alarm.
2.3 Speed Display
When the IS12 Combi is switched on, the current boat speed is
shown on the bottom line of the display (Fig 2.4) -
Instruction Manual
11
E04052
The display shows the boat speed through the water. In this
example, the speed is displayed in Knots.
2.4 Log Display
The Log is a non-resettable record of distance travelled, similar
to the Odometer on a motor vehicle. To display the Log read-
ing, press the LOWER INFO key once (Fig 2.5) -
LIGHT
ALARM
TIMER
UPPER
INFO
LOWER
INFO
MPH KNM HKts
SPEED

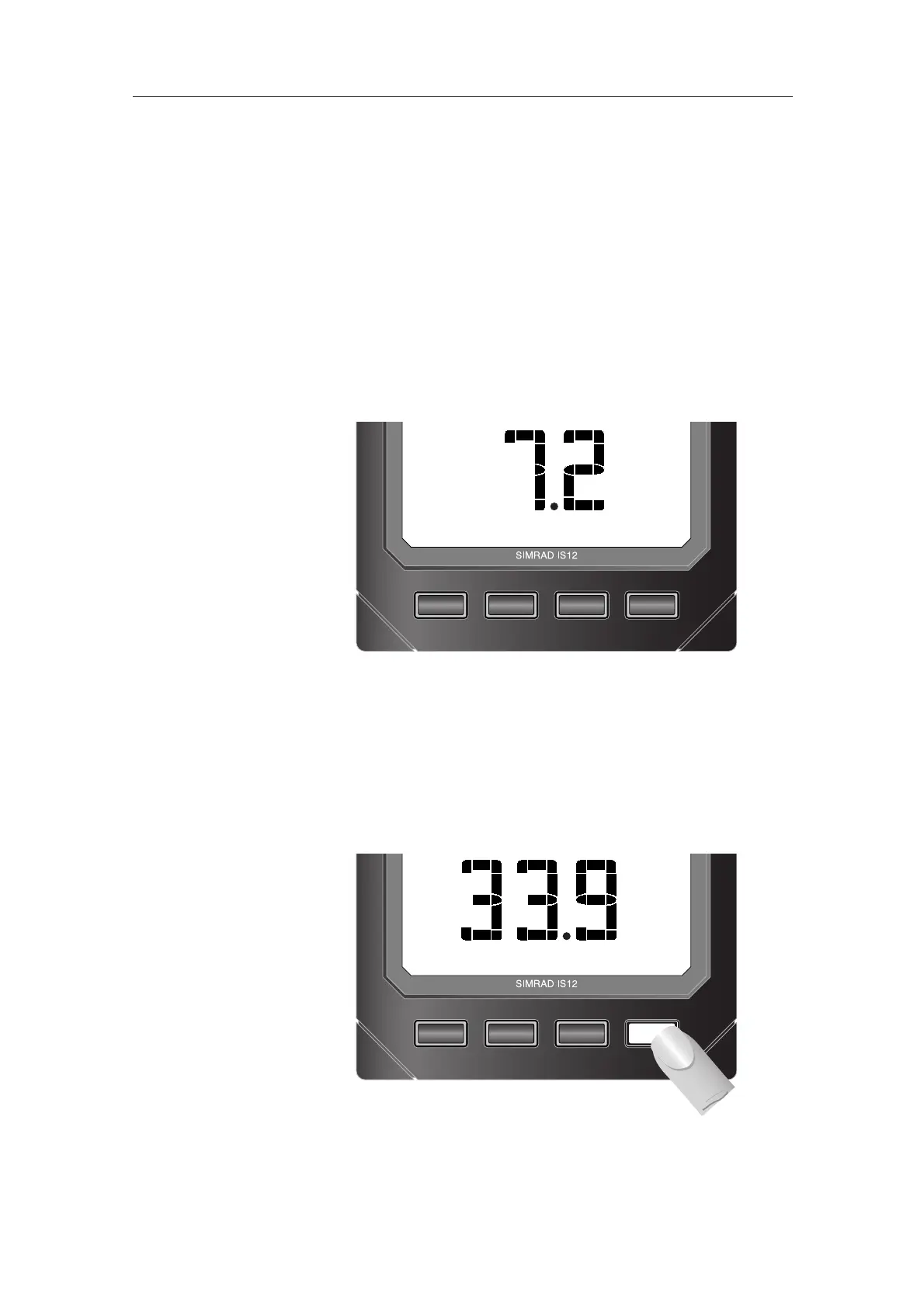

Fig 2.4 - Boat Speed Display
LIGHT
ALARM
TIMER
UPPER
INFO
MPH KNM HKts
LOG
Fig 2.5 - Log Display
LOWER
INFO
To Next Page
