IS12 Combi
36
E04052
When the sealant is set, recheck the seal integrity around the
transducer. The outside face of the transducer can be carefully
painted with antifouling to protect it, but check the instructions
of the antifouling to ensure that it is not solvent based, as this
could damage the transducer.
4.2.4 Installing the Speed Transducer

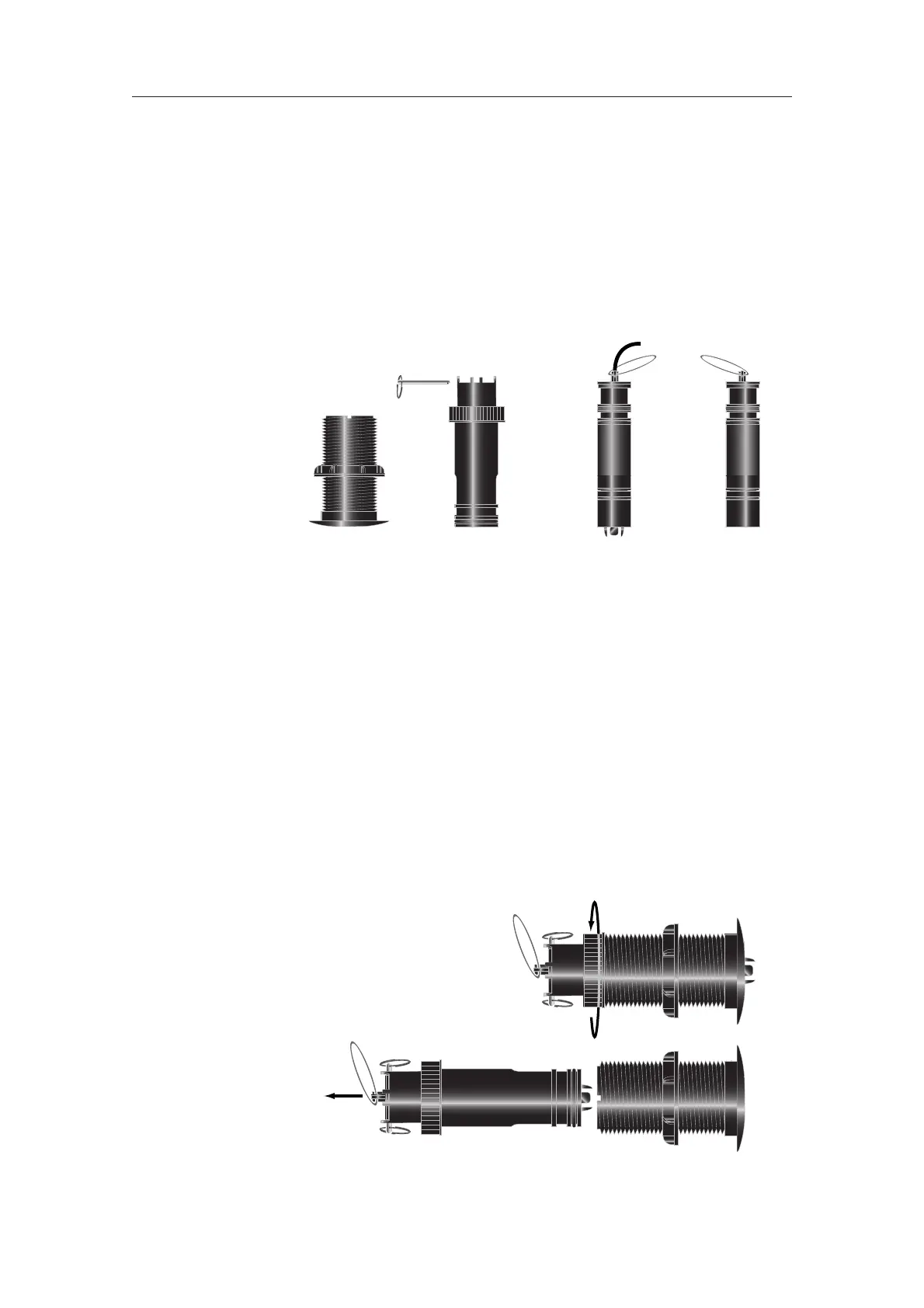

Fig 4.11 - Speed Transducer Assembly
Skin Fitting Sea Valve
Assembly
Paddlewheel
Assembly
Bung
The speed transducer consists of four main parts (Fig 4.11) -
- The Skin Fitting, the outer flanged moulding which is
bonded permanently to the hull.
- The Sea Valve Assembly which prevents seawater rushing
into the boat when the paddlewheel is withdrawn.
- The Paddlewheel Assembly which houses the electronics and
the paddlewheel impellor
- The Bung which is used to seal the through hull opening
when the paddlewheel is removed for cleaning etc.
To separate the skin fitting, unscrew the large threaded collar
as indicated in Fig 4.12 and pull the Sea Valve Assembly and
Paddlewheel Assembly out -
Fig 4.12 - Separating Skin Fitting
