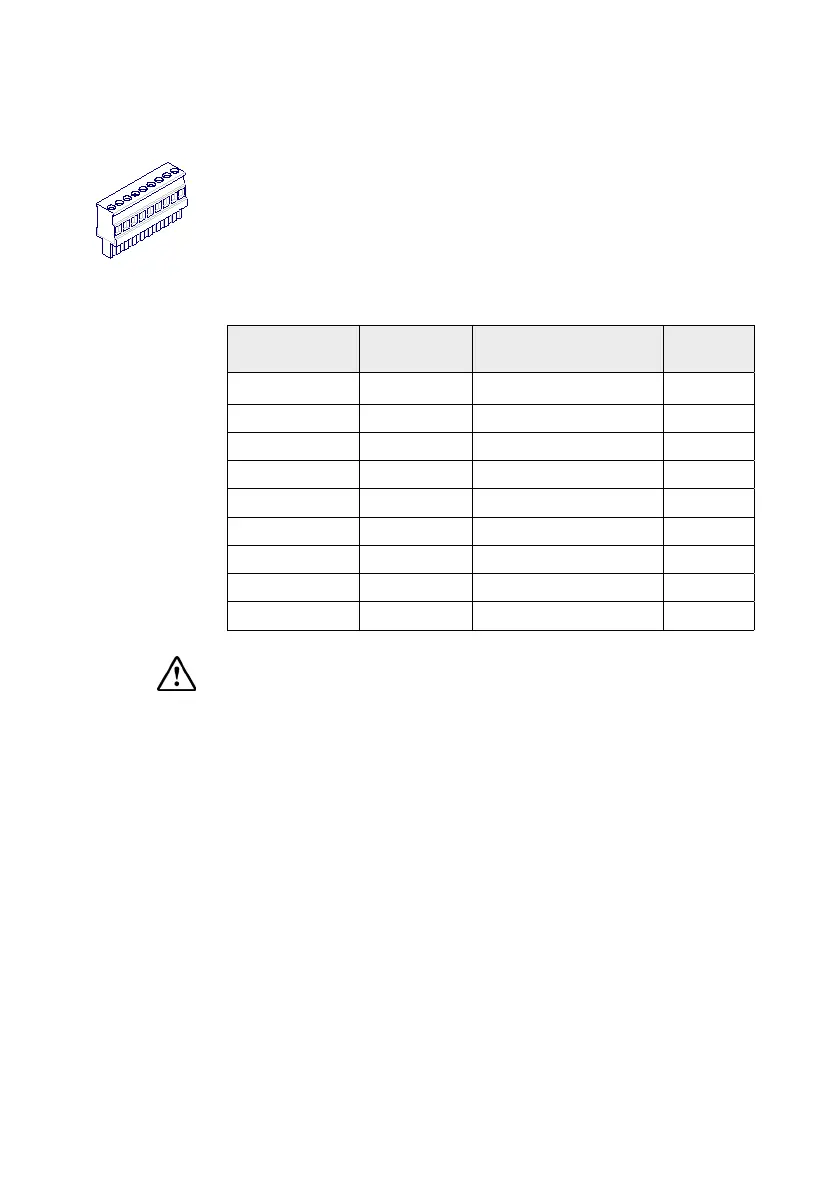

Cable connection and interface
Signal input, network and power supply are wired to the
enclosed terminal block that is to be plugged in on the
rear side.
The instrument is delivered with a 0.3 m SimNet cable
with a standard SimNet plug in both ends. One plug
must be cut off and the wires connected to terminals 3
through 6 according to the color codes shown below.
TERMINAL
NO
SIGNAL TYPE COLOR
1 GND
- Supply
-
2 VCC + Supply 12-24V DC -
3 SimNet - H NMEA2000 channel Yellow
4 SimNet - C NMEA2000 channel Black
5 SimNet - L NMEA2000 channel Blue
6 SimNet - S NMEA2000 channel Red
7 RS485 A NMEA0183 (Rx+) -
8 RS485 GND No connection -
9 RS485 B NMEA0183 (Rx-) -
Any voltages other than those specied in the
product specication, may cause damage to the
instrument (Refer to Specications section).
Data on the NMEA0183 port will be converted to SimNet/
NMEA2000 format and distributed to other instruments
that are interconnected on the SimNet network.
