Installation | 9
Securing the cables
Use the eclosed tie wrap to secure the cables to the
instrument.

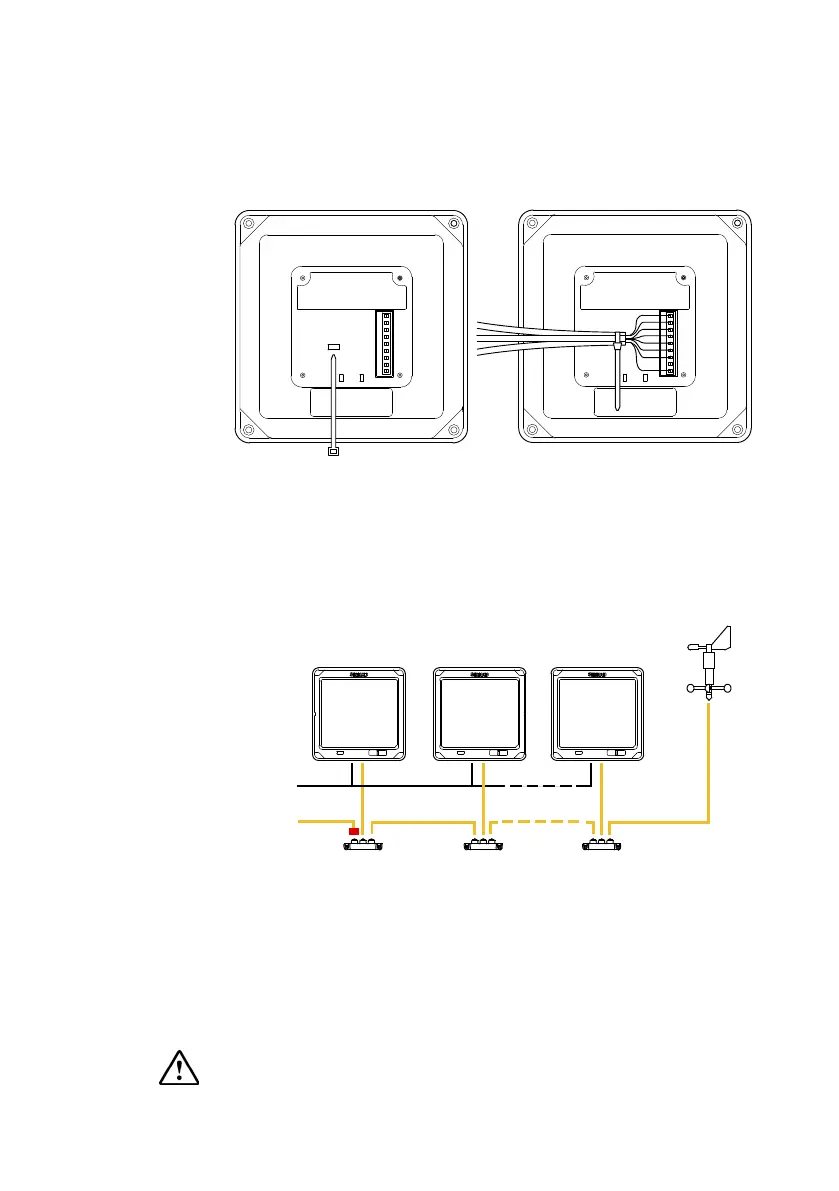

Interconnecting instruments
Interconnect a series of instruments by using a SimNet
power cable with termination and T-joiners as illustrated
below.
If the instruments are connected to other SimNet
compatible products, refer to the manual for those
products
Use only 12V as SimNet supply!

SimNet
Supply
(Red disk)
Power
SimNet
T-joiner
SimNet
T-joiner
SimNet
T-joiner
