Simrad IS80 Heading Repeater HR80 - Dimensional Drawing

24 | Specications

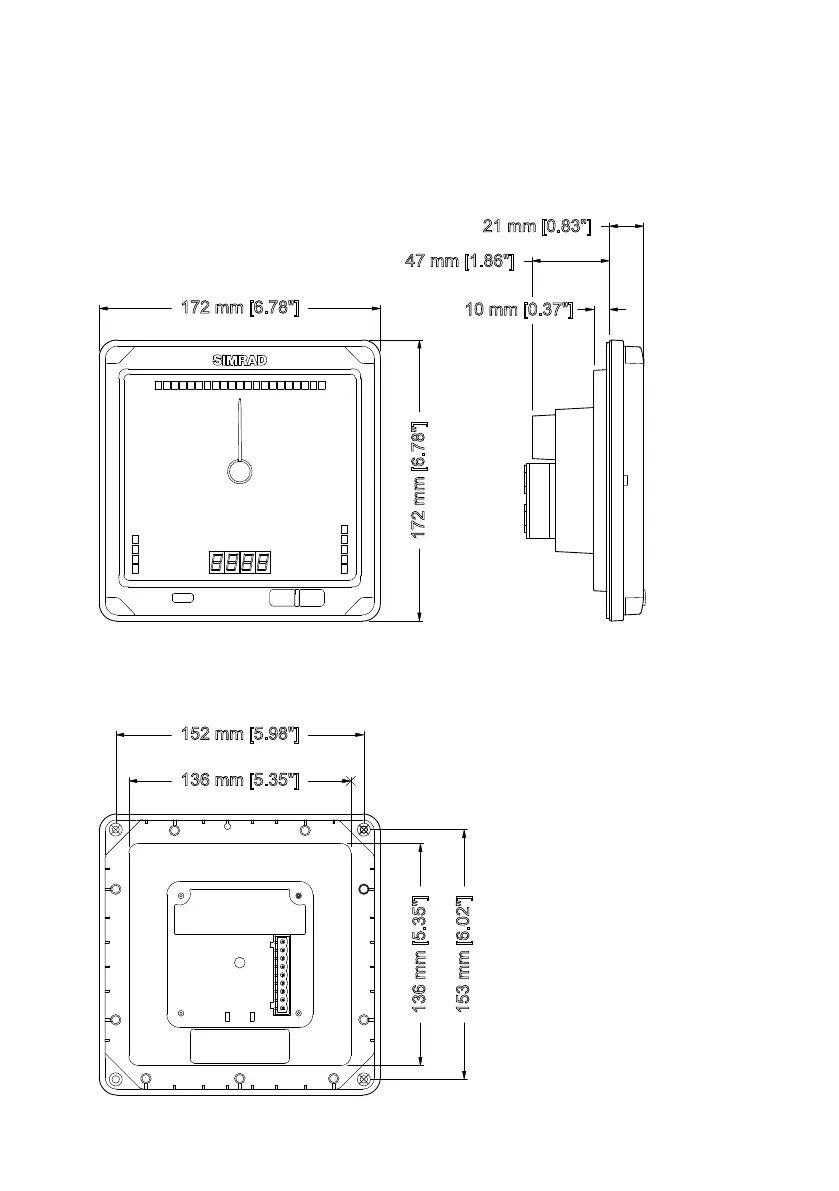

Dimensional drawing
172 mm [6.78"]
172 mm [6.78"]
136 mm [5.35"]
152 mm [5.98"]
136 mm [5.35"] 153 mm [6.02"]
21 mm [0.83"]
47 mm [1.86"]
172.2mm [6.78"]
172.2mm [6.78"]
136.0mm [5.35"]
152.0mm [5.98"]
136.0mm [5.35"]
153.0mm [6.02"]
21.0mm [0.83"]
9.5mm [0.37"]
47.3mm [1.86"]
10 mm [0.37"]
