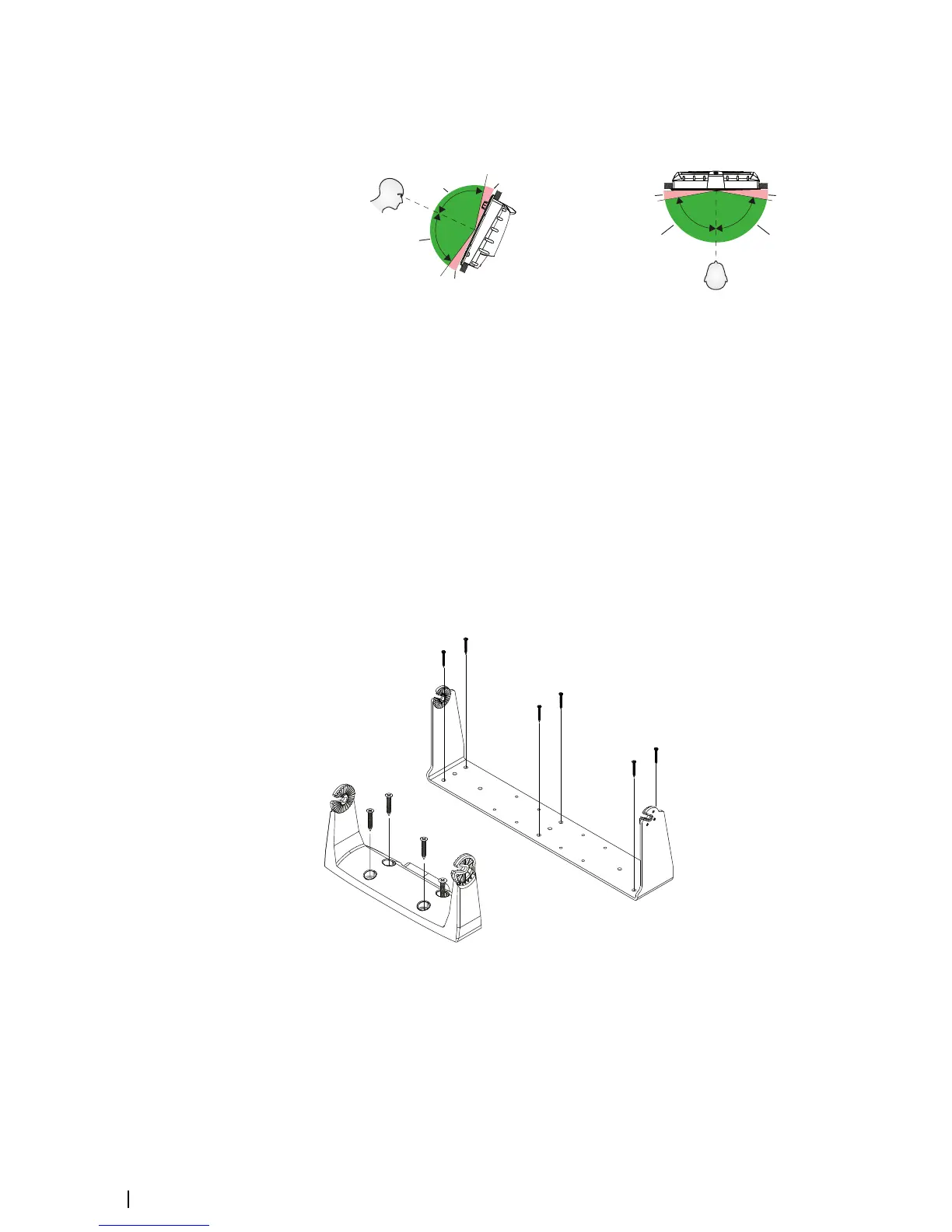

Viewing angle
The viewing angle influences the viewability of the monitor. The recommended viewing
angles relative to perpendicular are shown in the illustrations below.
A Optimum viewing angle
B Poor viewing angle or obstructed view
Bracket mounting
U-bracket mounting
1. Place the bracket in the desired mounting location. Ensure that the chosen location has
enough height to accommodate the unit fitted in the bracket, and allows tilting of the
unit. Also adequate space is required on both sides to allow tightening and loosening of
the knobs.
2. Mark the screw locations using the bracket as a template, and drill pilot holes. Use
fasteners suited to the mounting surface material. If the material is too thin for self-
tappers, reinforce it, or mount the bracket with machine screws and large washers. Use
only 304 or 316 stainless steel fasteners.
3. Screw down the bracket.
4. Mount the unit to the bracket using the knobs. Hand tighten only. The ratchet teeth in the
bracket and unit ensure a positive grip and prevent the unit from changing from the
desired angle.
Flush mounting
Use the separate Mouting template to flush mount the unit.
Ú
Note: Remember to attach the foam gasket (self adhesive ) to rear of unit before flush
mounting.
12
Installation | NSS evo3 Installation Manual
