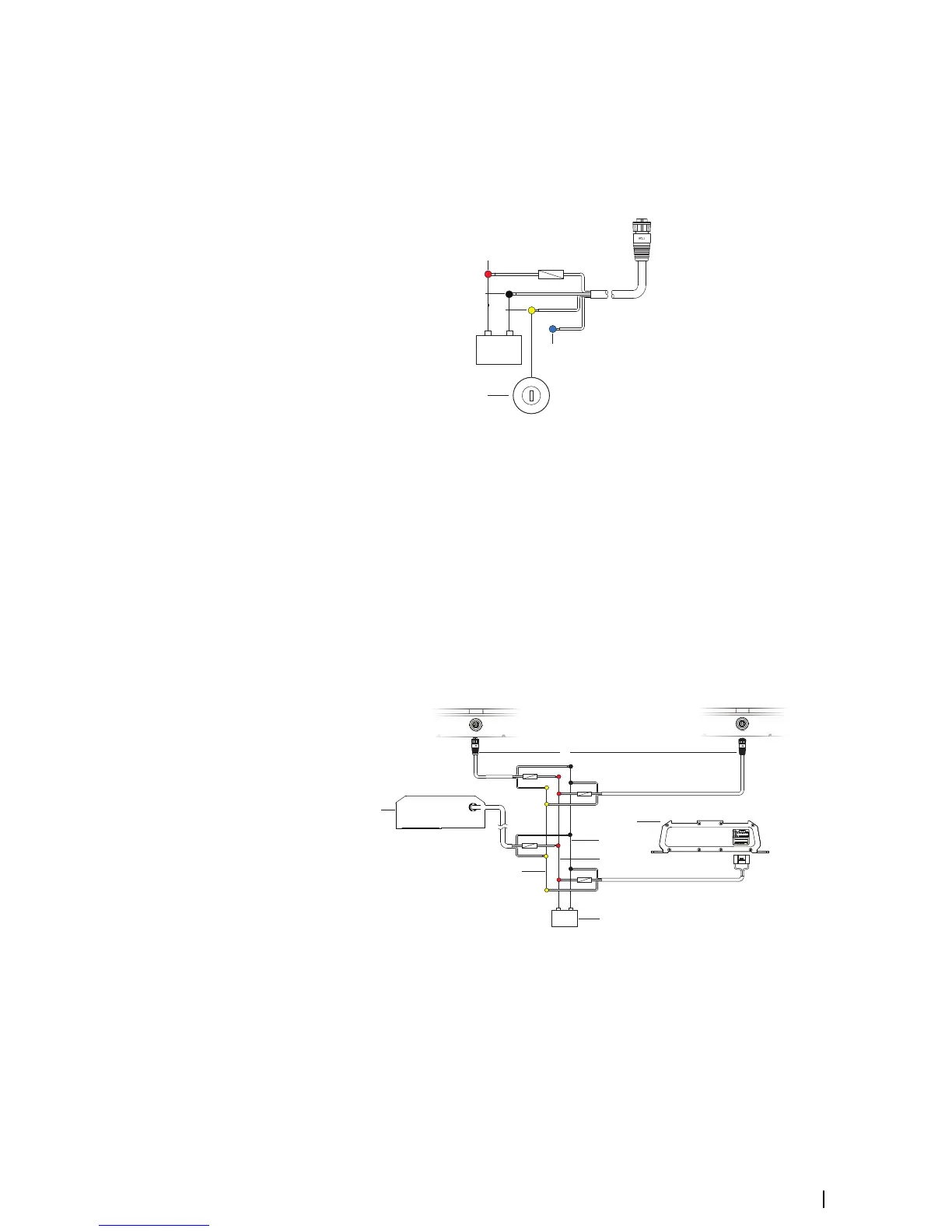

Power Control to ignition

Device will turn on once ignition is turned on to start engines. Connect the yellow wire to the

accessories output of the engine key switch.

Note: Engine start batteries and house batteries should have a common ground

connection.

1 Power cable connector to unit

2 Positive wire (red)

3 Ground wire (black)

4 Power control wire (yellow)

5 Alarm wire (blue)

6 Ignition switch

Power Control master/slave bus

Turning on the ‘master’ device turns on connected ‘slave’ devices.

A B

POWER

A Power connection to unit on the left

B Power connection to unit on the right

1 Power cable connectors to units

2 Radar interface box

3 Audio entertainment device (e.g. SonicHub2)

4 Ground wire (black)

5 Positive wire (red)

6 Power control wire (yellow)

Wiring | NSS evo3 Installation Manual
