Simrad NSS evo3 Installation Manual

12 Card reader door
13 Dual card reader slots

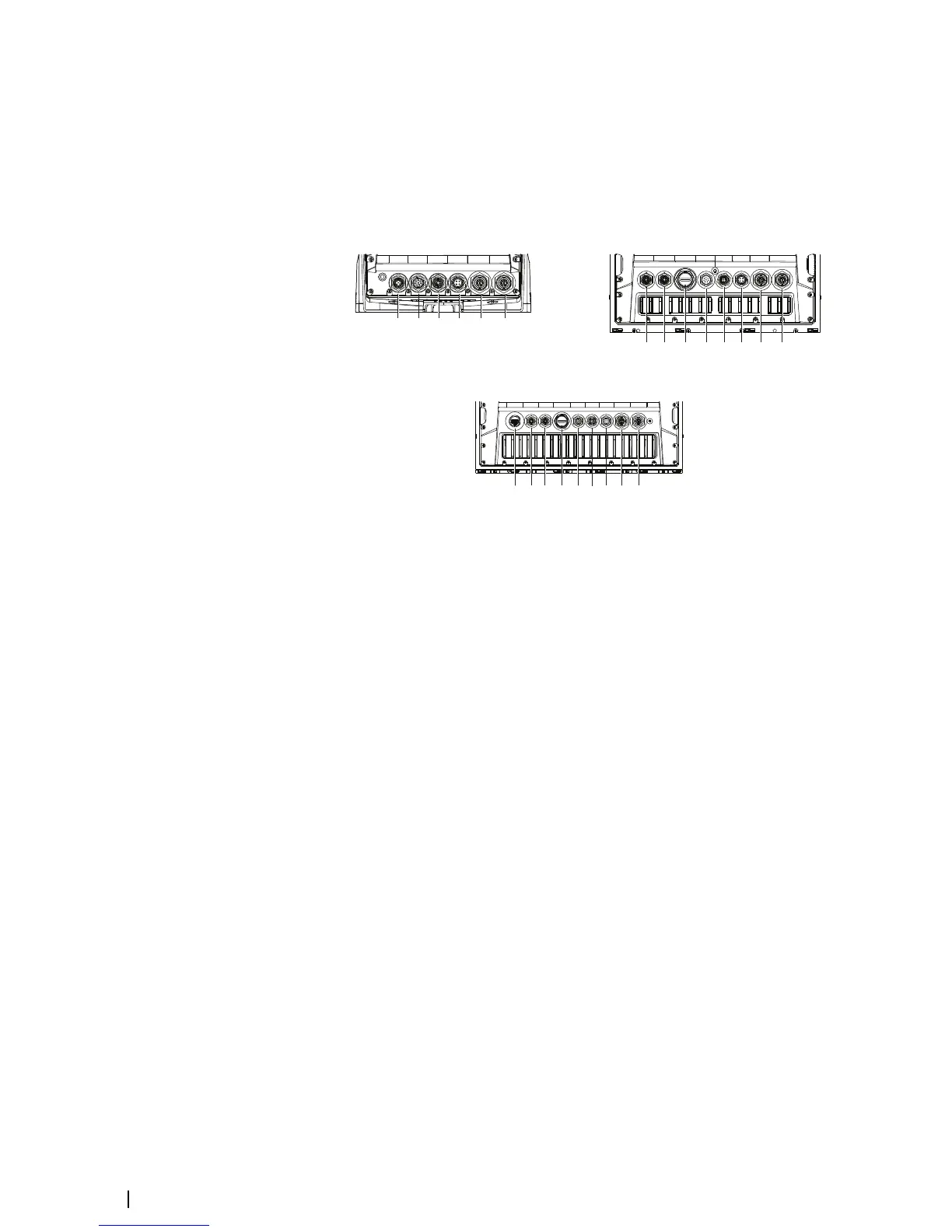

Rear connections
All units
7" and 9" units
5
6
SONAR 2
SONAR 1
POWERETHERNE
TVIDEONMEA2000
4
3
1 2
12" units
2
5
4
7
1
3
6
1
ETHERNET ETHERNET HDMI VIDEO NMEA2000
POWER SONAR 1
SONAR 2
16" units
ETHERNET
ETHERNE
T
USB
HDMI
VIDEO
NMEA2000
POWER
SONAR 1
SONAR 2
1
1
8
7 3
4
2
5
6
1 Ethernet - connection to high bandwidth network modules
2 Power - 12 V or 24 V DC supply input
3 Video - input for video sources such as cameras, and NMEA 0183 port
4 NMEA 2000 - dynamic data
5 Sonar 1 - single channel CHIRP, 50/200 kHz conventional or HDI transducer
6 Sonar 2 - singel channel CHIRP, 50/200 kHz conventional, TotalScan, StructureScan
or ForwardScan transducer
7 HDMI - video output for external monitor
8 USB - mouse, keyboard or mass storage
Card reader
Used for inserting a microSD memory card. The memory card can be used for detailed chart
data, software updates, transfer of user data, and system backup.
Ú
Note: Do not download, transfer or copy files to a chart card. Doing so can damage chart
information on the chart card.
The card reader door should always be securely shut immediately after inserting or removing
a card, in order to prevent possible water ingress.
10
Overview | NSS evo3 Installation Manual

Simrad NSS evo3 Specifications

General

Touchscreen	Yes
NMEA 0183 Connectivity	Yes
Operating System	Linux-based
Chartplotter	Yes
Radar Support	Yes
Waterproof Rating	IPX7
Operating Temperature	-15°C to +55°C
Display Size	9, 12, 16 inches
Screen Type	LCD
GPS	10 Hz built-in GPS receiver
Networking	Ethernet, Wi-Fi, Bluetooth
Sonar	CHIRP, StructureScan
Power Supply	12V DC
Video Input	2
Card Slots	2 x MicroSD
Processor	Quad-core processor
RAM	1GB
Internal Storage	8GB
Resolution	1280 x 800 (12")
