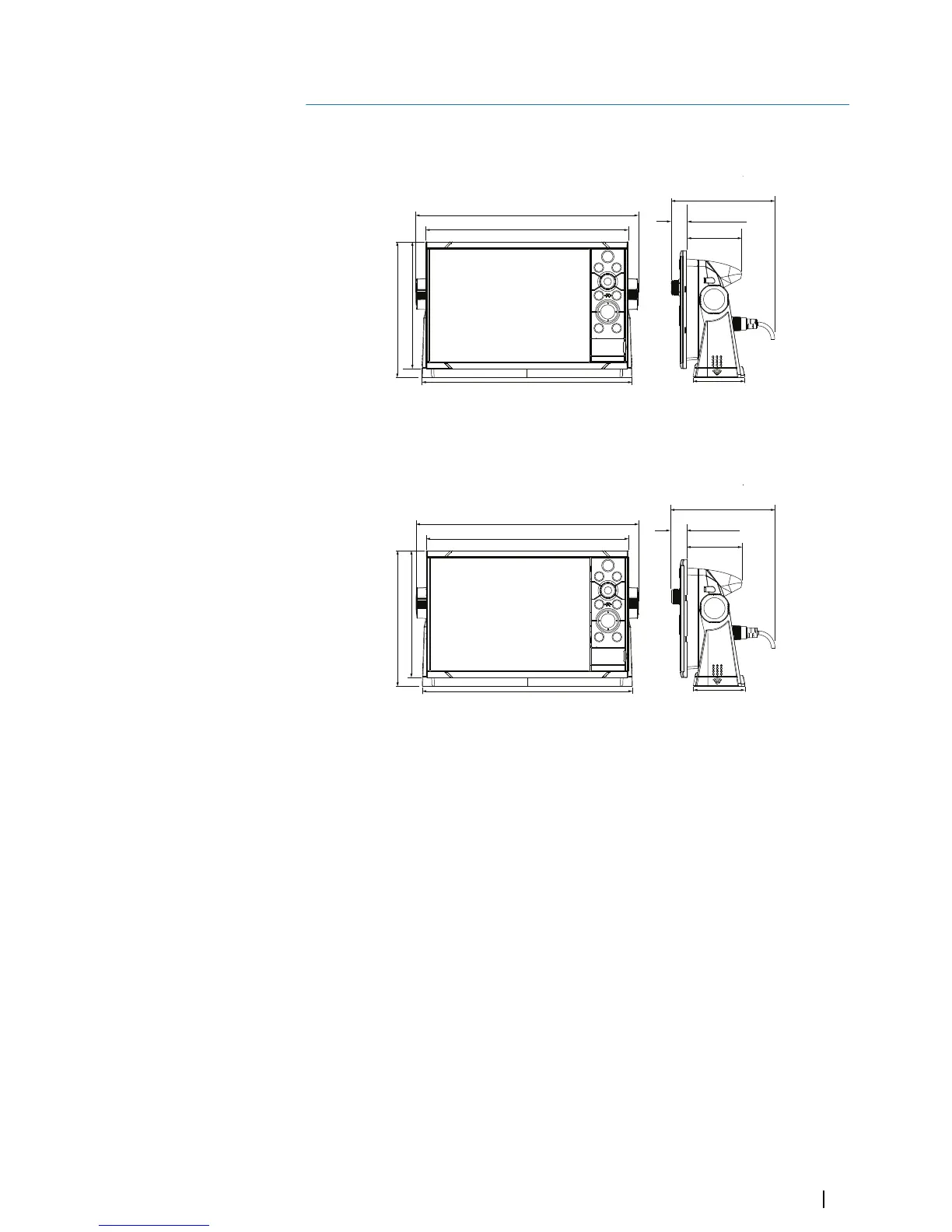

Dimensional drawings
7" Unit dimensions
263.0 mm (10.35”)
239.0 mm (9.41”)
160.3 mm (6.30”)
131.0 mm (5.15”)
(2.75”)
18.5 mm (0.73”)
70.0 mm
149.9 mm (5.90”)
248.2 mm (9.77”)
65.3 mm (2.57”)
9" Unit dimensions
310.9 mm (12.24”)
287.0 mm (11.30”)
179.5 mm (7.07”)
166.3 mm (6.55”)
131.0 mm (5.15”)
(2.74”)
18.5 mm (0.73”)
69.6 mm
66.6 mm (2.62”)
296.2 mm (11.66”)
9
