Simrad NSS evo3 Installation Manual

Video in
The unit can be connected to two composite video sources, and display video images on its
display.
The video input cable is fitted with female RCA plugs - the camera cables should be
terminated with male RCA cables to suit.
Ú
Note: The video images will not be shared with another unit via the network. It is only
possible to view video on the unit connected to the video source.
Ú
Note: Both NTSC and PAL formats are supported.

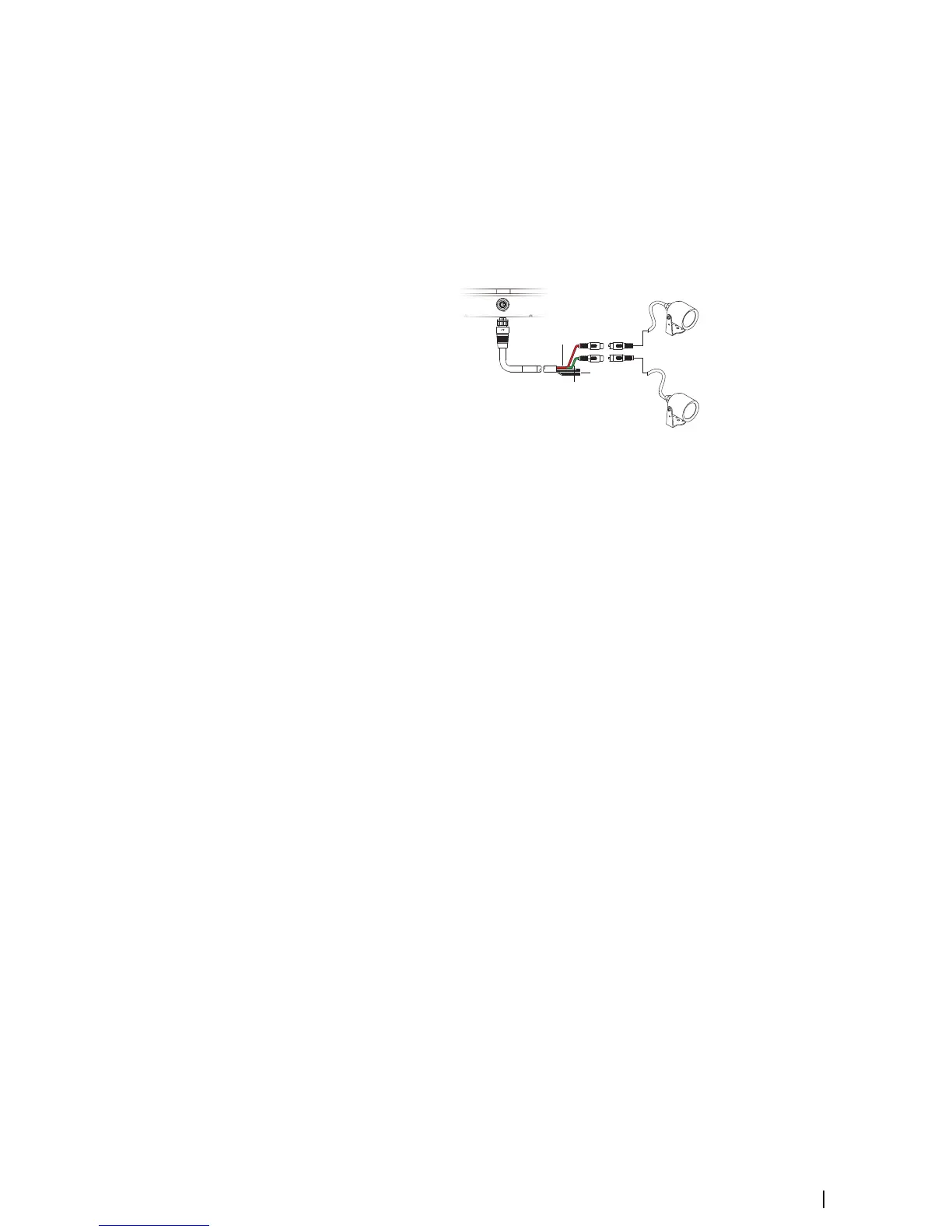

1
2
3
4
A
B
VIDEO
1 Cable connector to Video port on unit
2 Camera A input (red cable)
3 Camera B input (green cable)
4 NMEA 0183 cables
Wiring | NSS evo3 Installation Manual
23

Simrad NSS evo3 Specifications

General

Touchscreen	Yes
NMEA 0183 Connectivity	Yes
Operating System	Linux-based
Chartplotter	Yes
Radar Support	Yes
Waterproof Rating	IPX7
Operating Temperature	-15°C to +55°C
Display Size	9, 12, 16 inches
Screen Type	LCD
GPS	10 Hz built-in GPS receiver
Networking	Ethernet, Wi-Fi, Bluetooth
Sonar	CHIRP, StructureScan
Power Supply	12V DC
Video Input	2
Card Slots	2 x MicroSD
Processor	Quad-core processor
RAM	1GB
Internal Storage	8GB
Resolution	1280 x 800 (12")
